Home >> Nissan-Datsun >> 2014 >> Leaf SL >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> Removal And Installation >> Yaw Rate/Side/DECEL G Sensor >> Exploded View

Exploded View

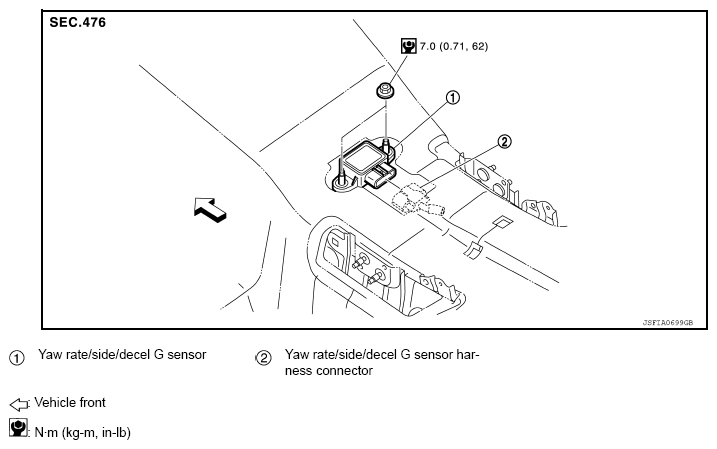

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications
G09455229Courtesy of NISSAN NORTH AMERICA, INC.
