Inside Mirror
>>
Exploded View
Exploded View

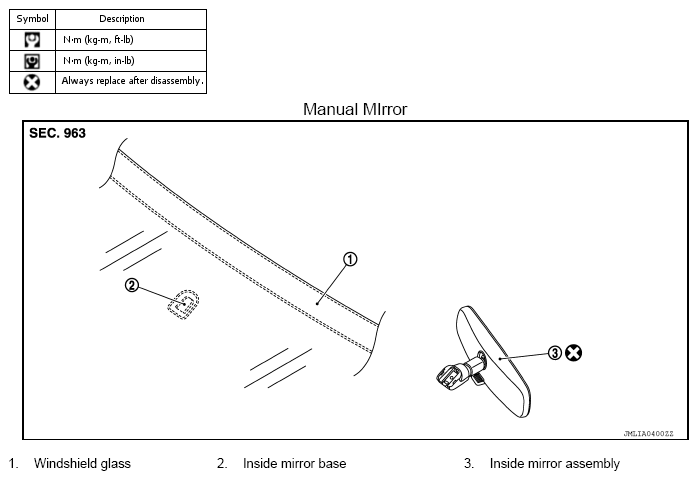

Fig 1: Exploded View Of Inside Mirror (Manual Mirror)
Courtesy of NISSAN NORTH AMERICA, INC.

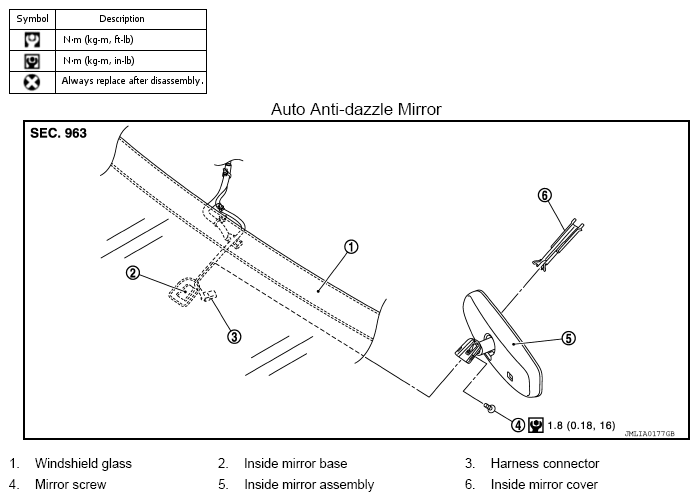

Fig 2: Exploded View Of Inside Mirror (Auto Anti-Dazzle Mirror) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
