Removal And Installation
>>
Starter Motor
>>
Exploded View
Exploded View

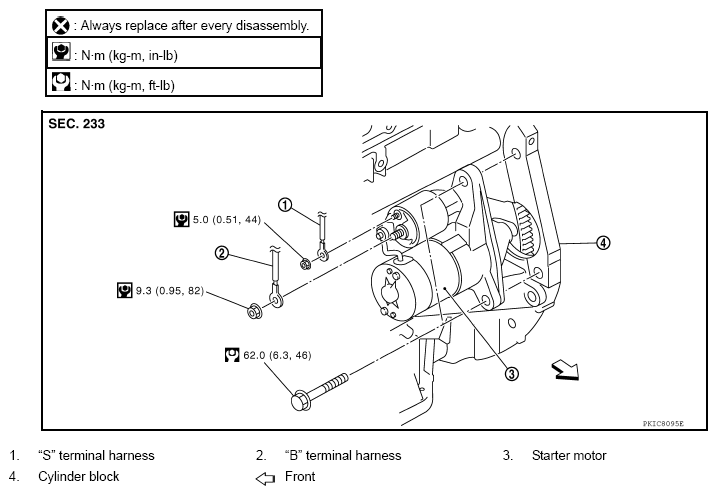

Fig 1: Exploded View Of Starter Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
