Intake Manifold Tuning Valve: Notes

Intake manifold tuning (IMT) valve is integrated to intake manifold. Intake manifold tuning valve consists of valve and motor.

Intake manifold tuning valve is used to control the suction passage of the intake manifold tuning system.

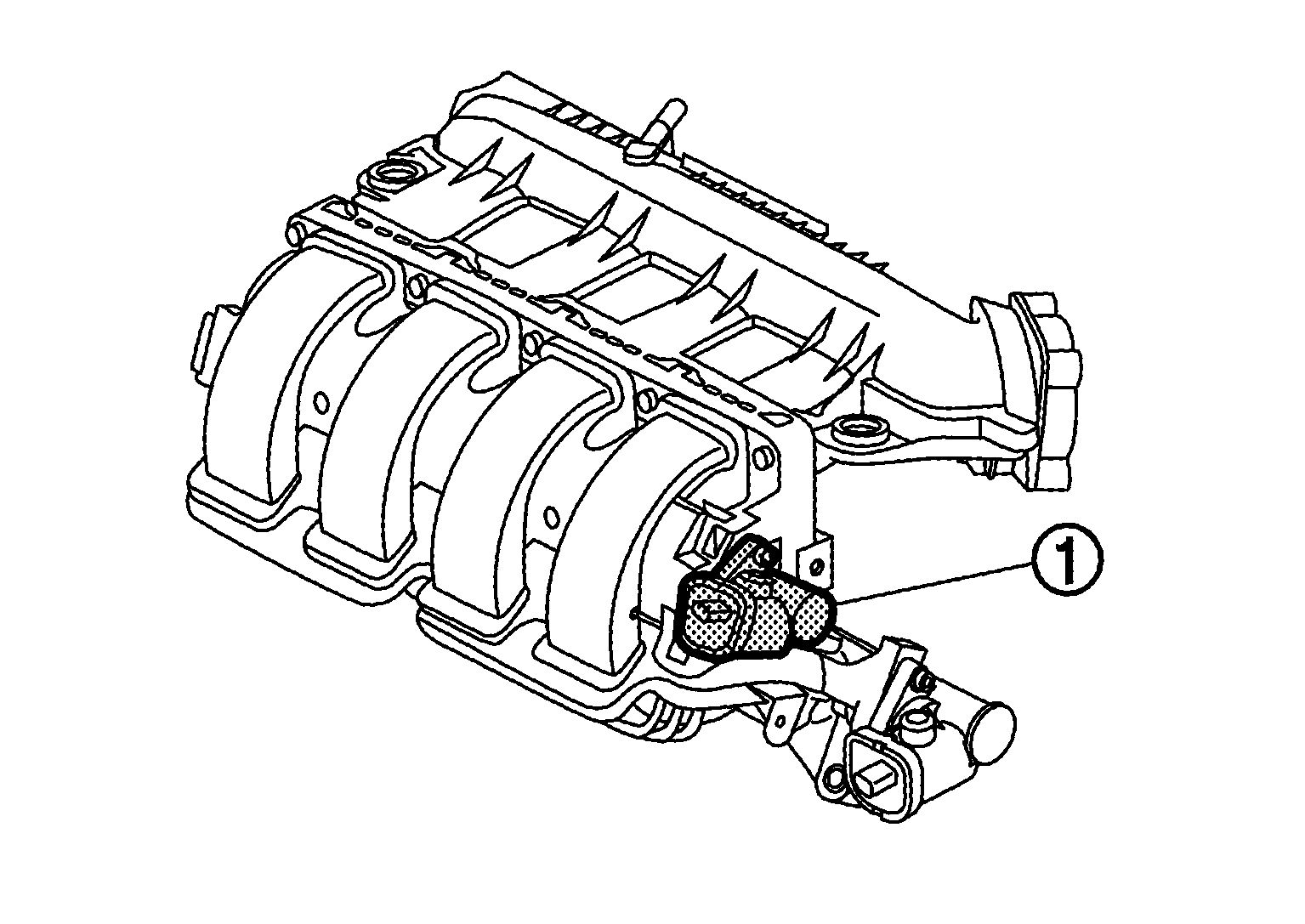

Fig 1: Identifying Intake Manifold Tuning Valve

Courtesy of NISSAN NORTH AMERICA, INC.
