Home >> Nissan-Datsun >> 2014 >> Versa Note S Plus >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Cooler >> Exploded View >> Notes

Exploded View: Notes

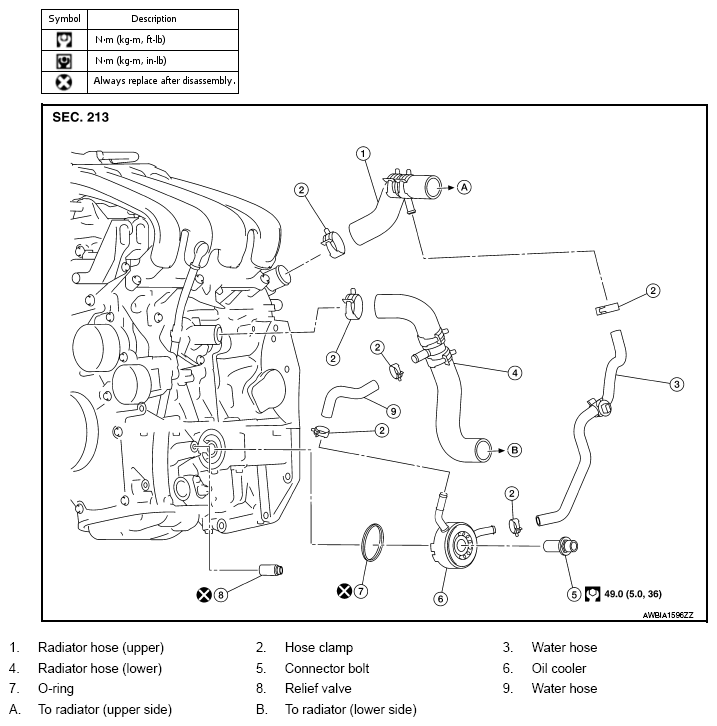

Fig 1: Exploded View Of Oil Cooler With Torque Specifications

G09617497

Courtesy of NISSAN NORTH AMERICA, INC.
