Disassembly And Assembly: Notes

Fuel Level Sender Unit

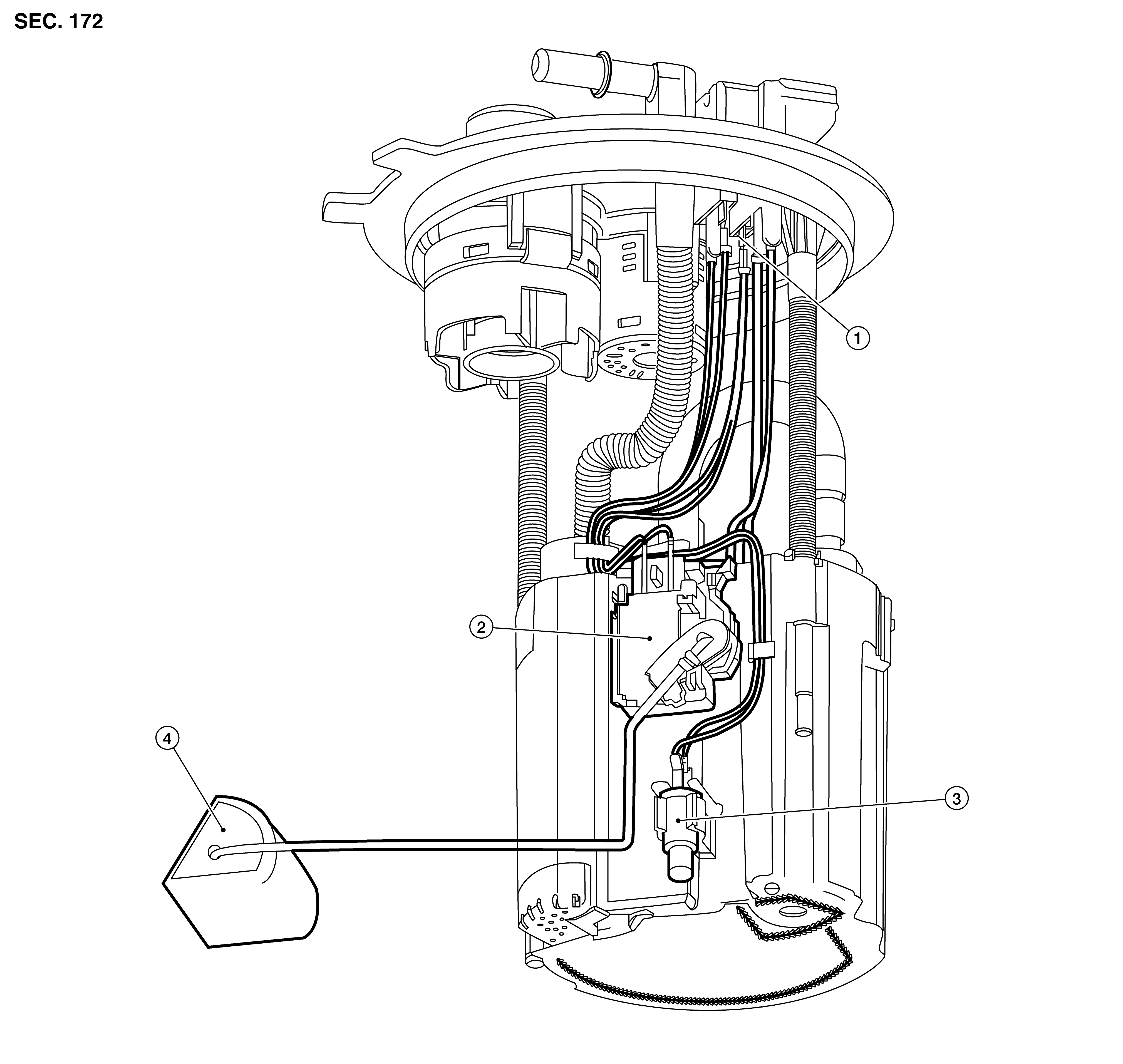

Fig 1: View Of Fuel Level Sensor Unit
GNSALBIA0748ZZ-748Courtesy of NISSAN NORTH AMERICA, INC.
1. Harness connectors 2. Level sending unit module 3. Fuel temperature sensor
4. Float arm assembly
