Exploded View With Torque Specifications

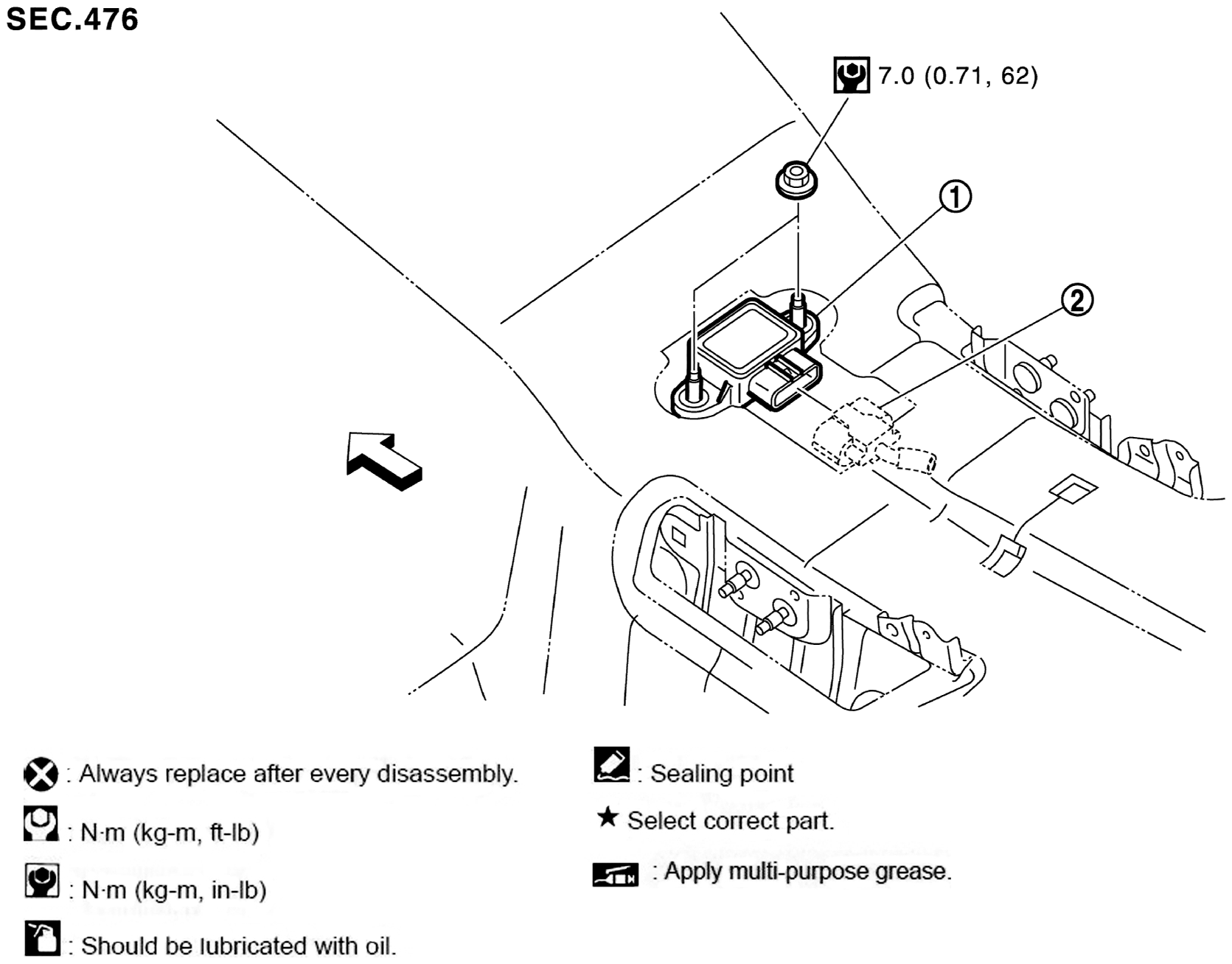

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications
GNSJSFIA0699GB-699ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Yaw rate/side/decel G sensor 2. Yaw rate/side/decel G sensor harness connector ARROW Front
