Engine Control System (Introduction)
>>
System Description
>>
System
>>
Engine Control System
>>
Circuit Diagram
Circuit Diagram

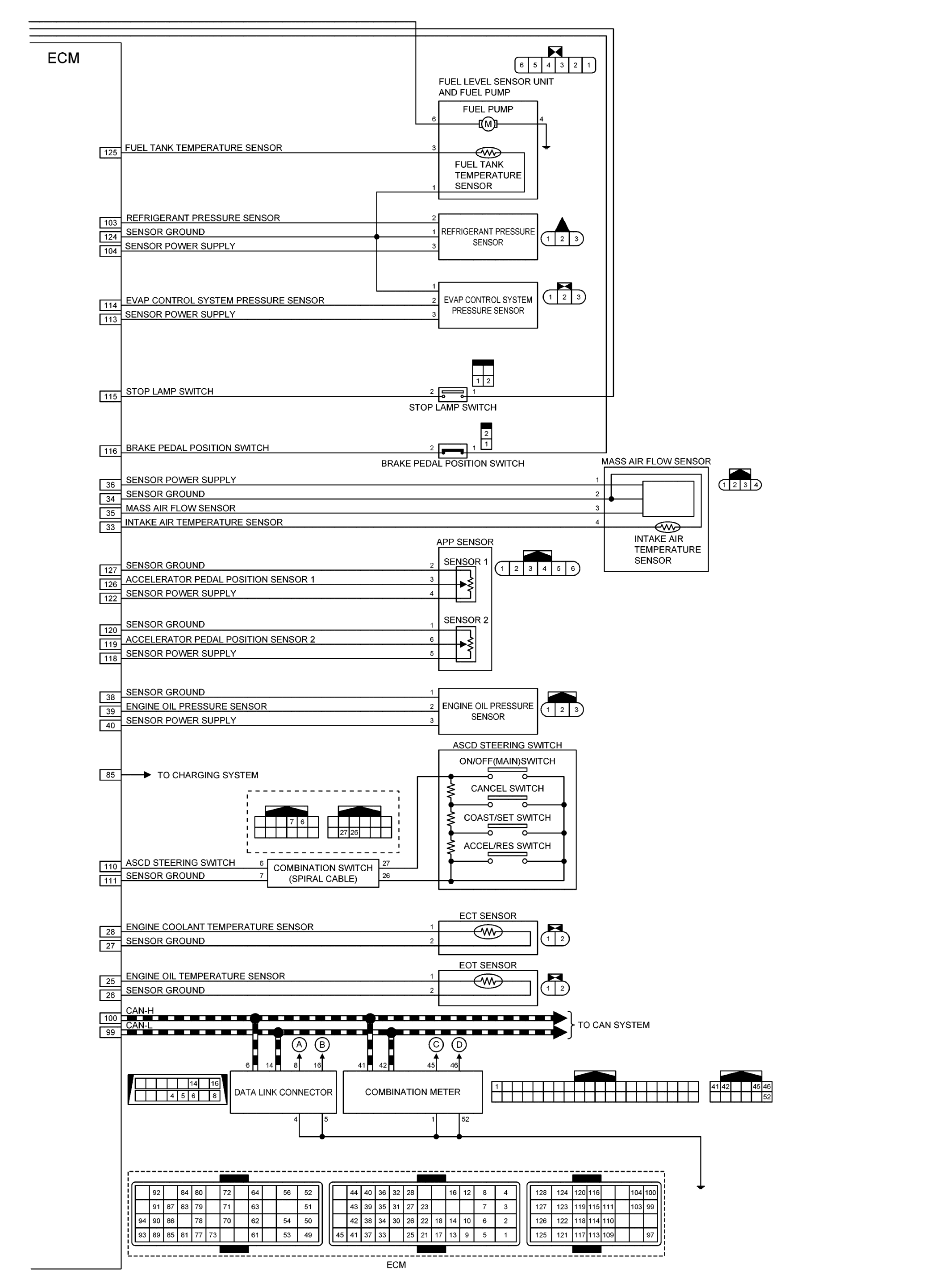

Fig 1: Engine Control System Circuit Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

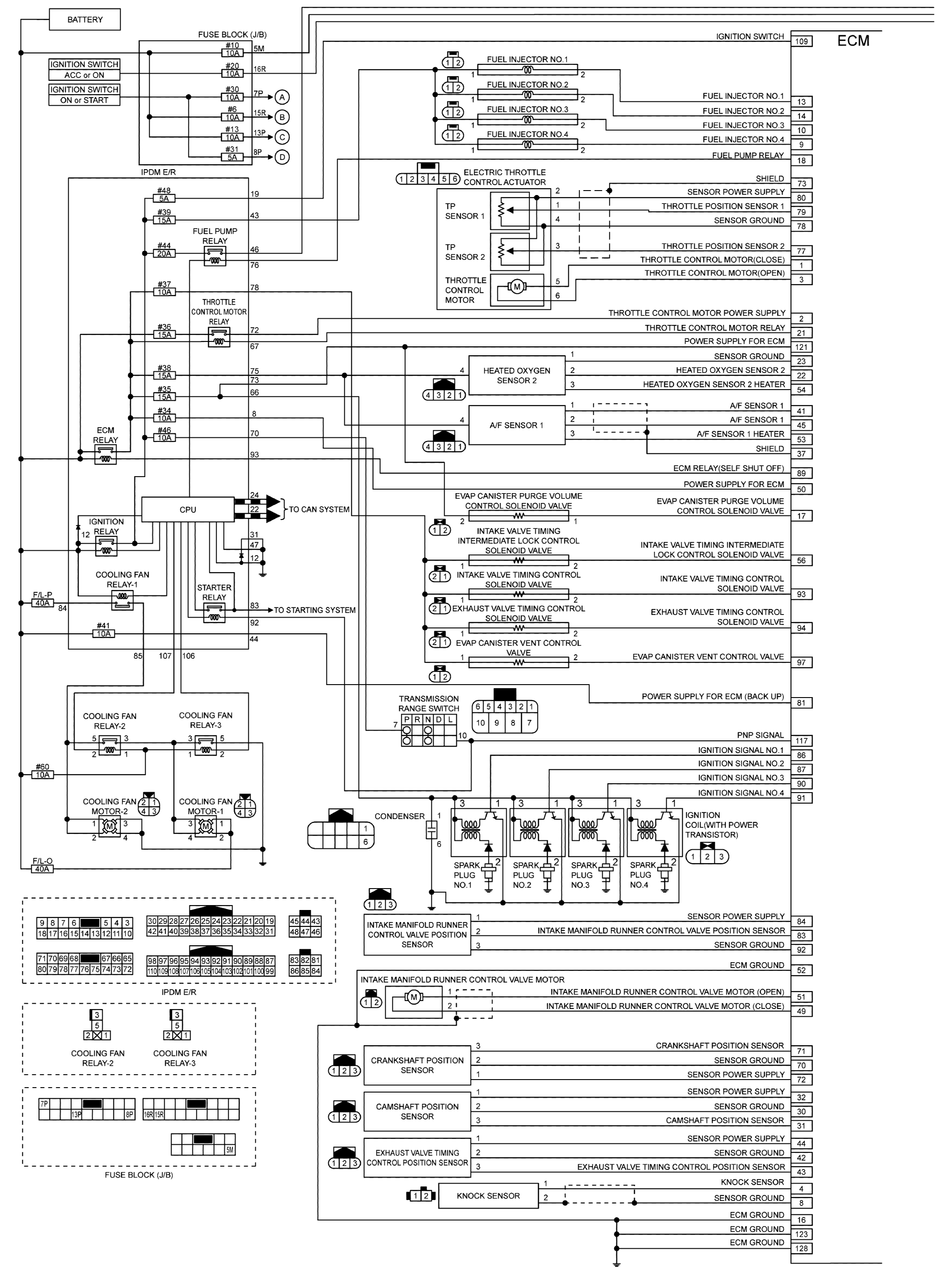

Fig 2: Engine Control System Circuit Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
