Exploded View With Torque Specifications

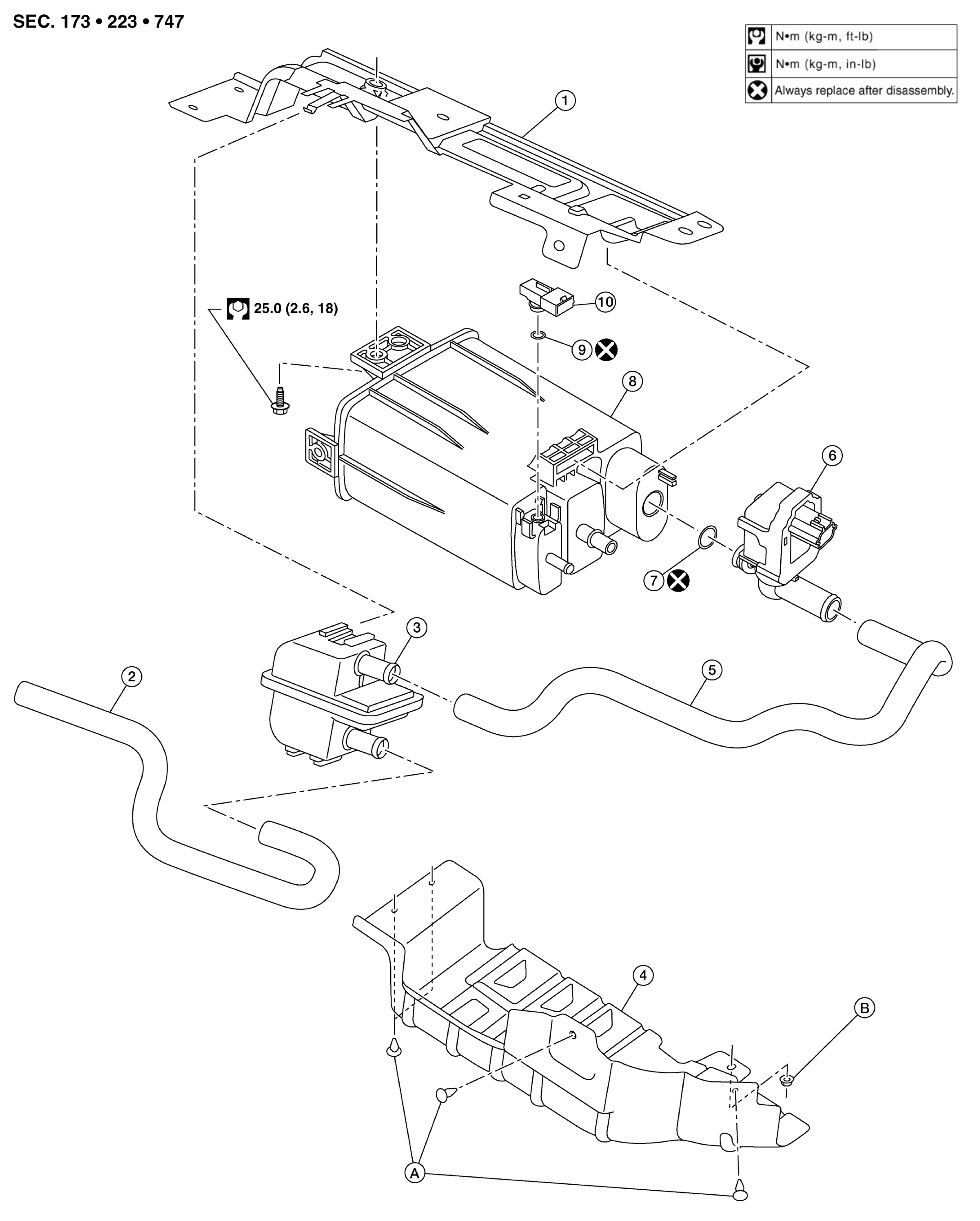

Fig 1: Exploded View Of EVAP Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister bracket	2.	EVAP canister filter drain hose	3.	EVAP canister filter
4.	EVAP canister protector	5.	EVAP hose	6.	EVAP canister vent control valve
7.	O-ring	8.	EVAP canister	9.	O-ring
10.	EVAP canister control pressure sensor	A.	Clip	B.	Nut
