Exploded View With Torque Specifications

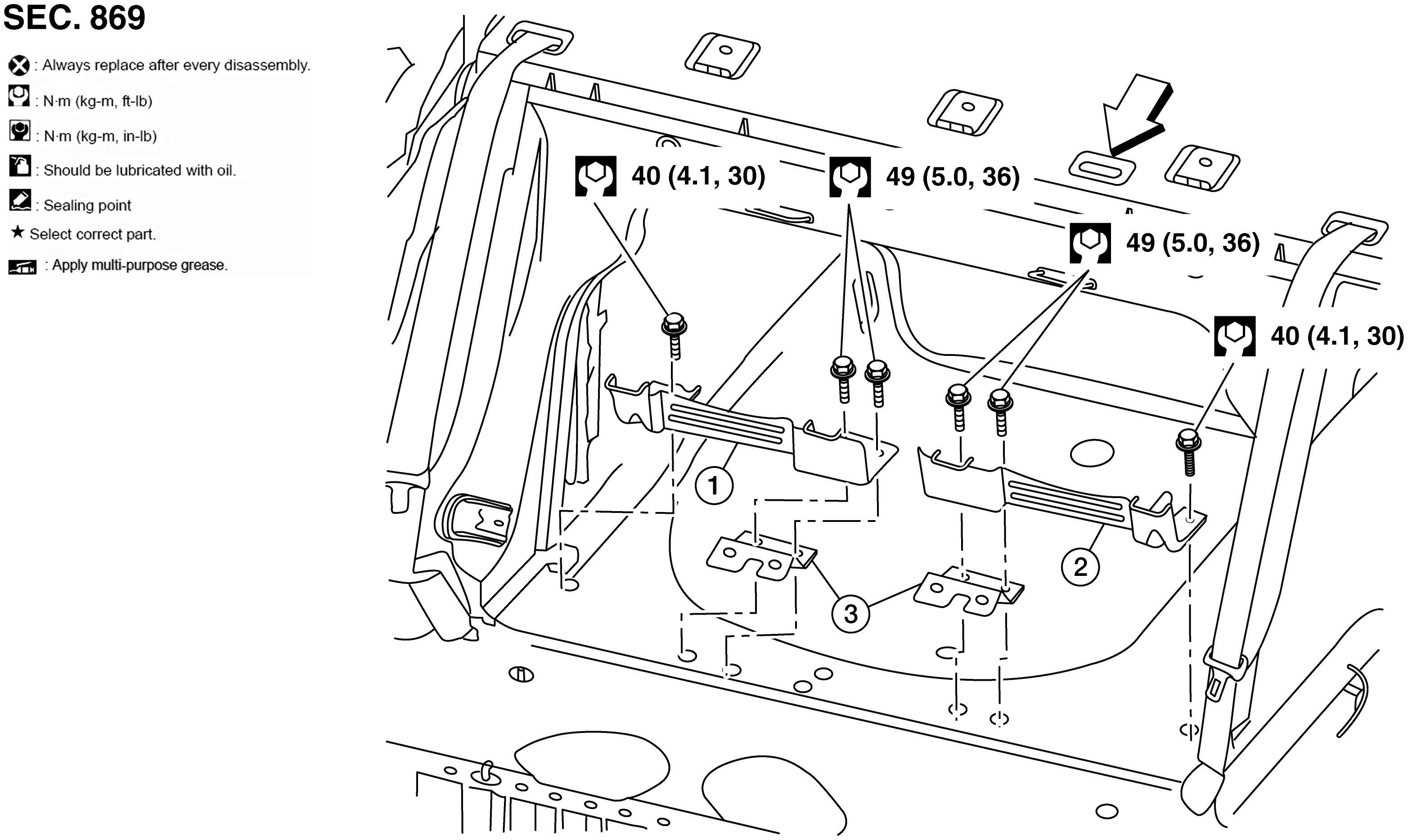

Fig 1: Latch System For Children With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	LATCH bracket (RH)	2.	LATCH bracket (LH)	3.	Seat belt buckle anchor bracket
	Front
