Exploded View With Torque Specifications

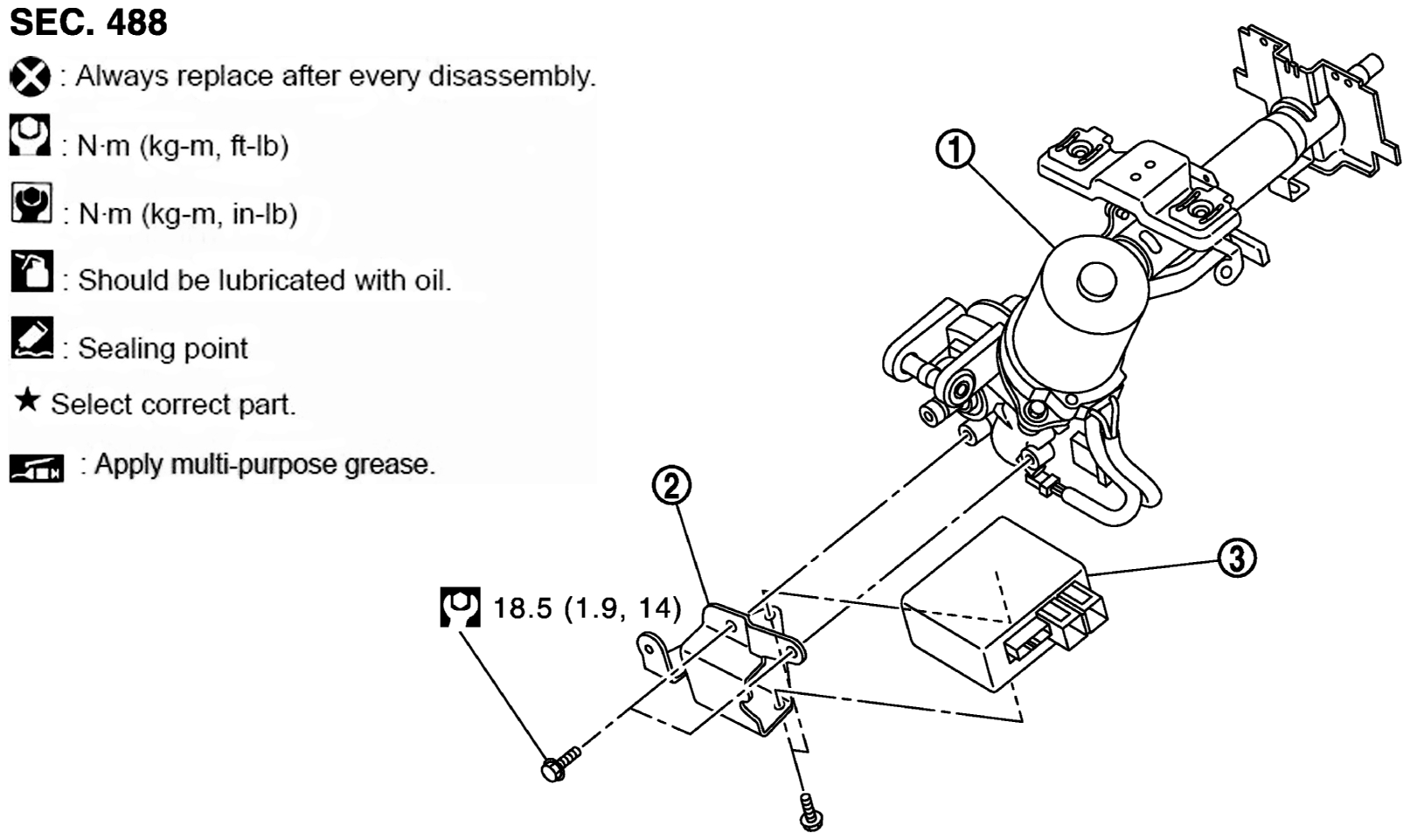

Fig 1: Exploded View Of EPS Control Unit With Torque Specifications

GNSJPGIB0004GB-004

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Bracket

3.

EPS control unit
