Brake Control System
>>
System Description
>>
System
>>
VDC/TCS/Abs
>>
System Diagram
System Diagram

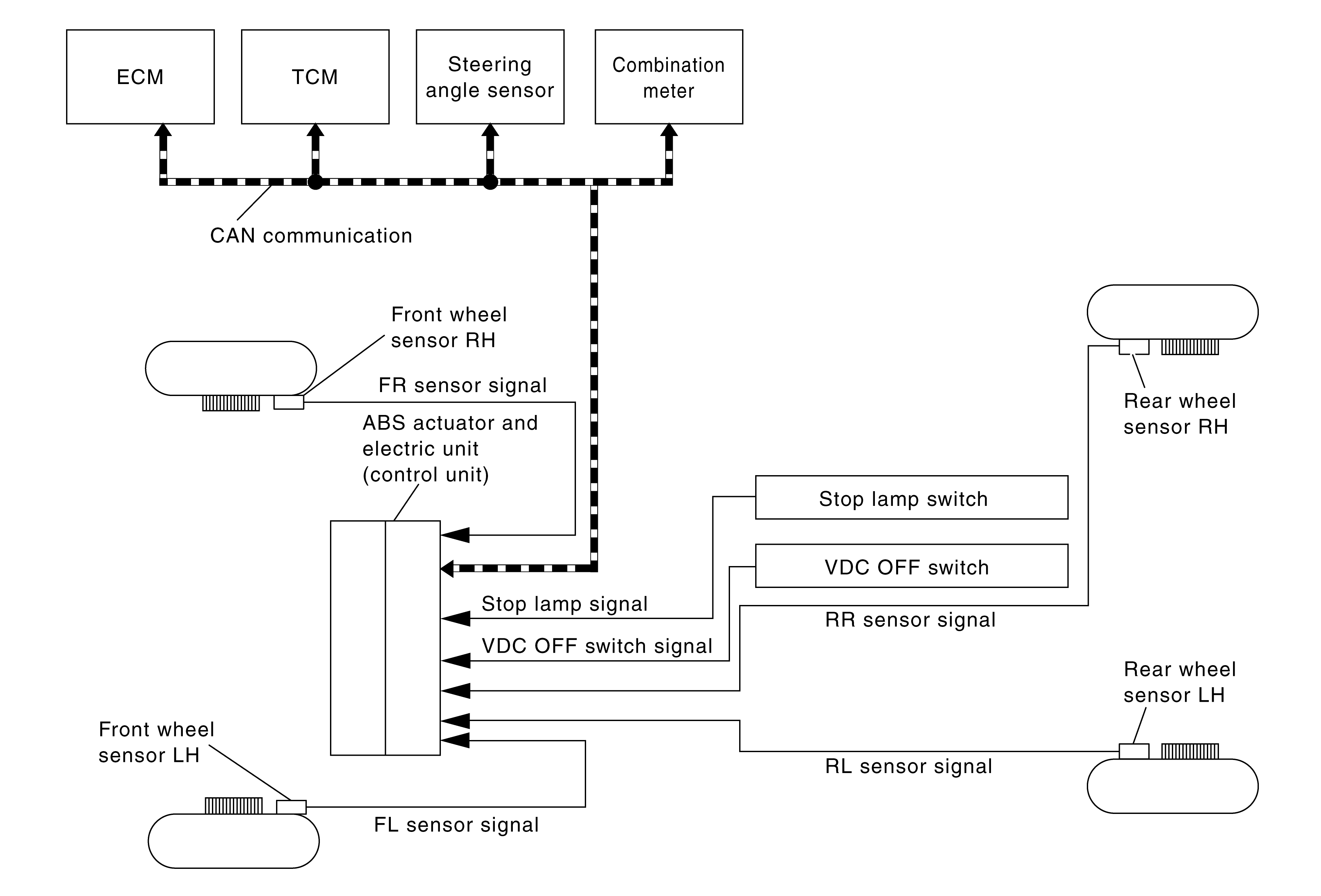

Fig 1: VDC/TCS/ABS -- System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
