Exploded View With Torque Specifications

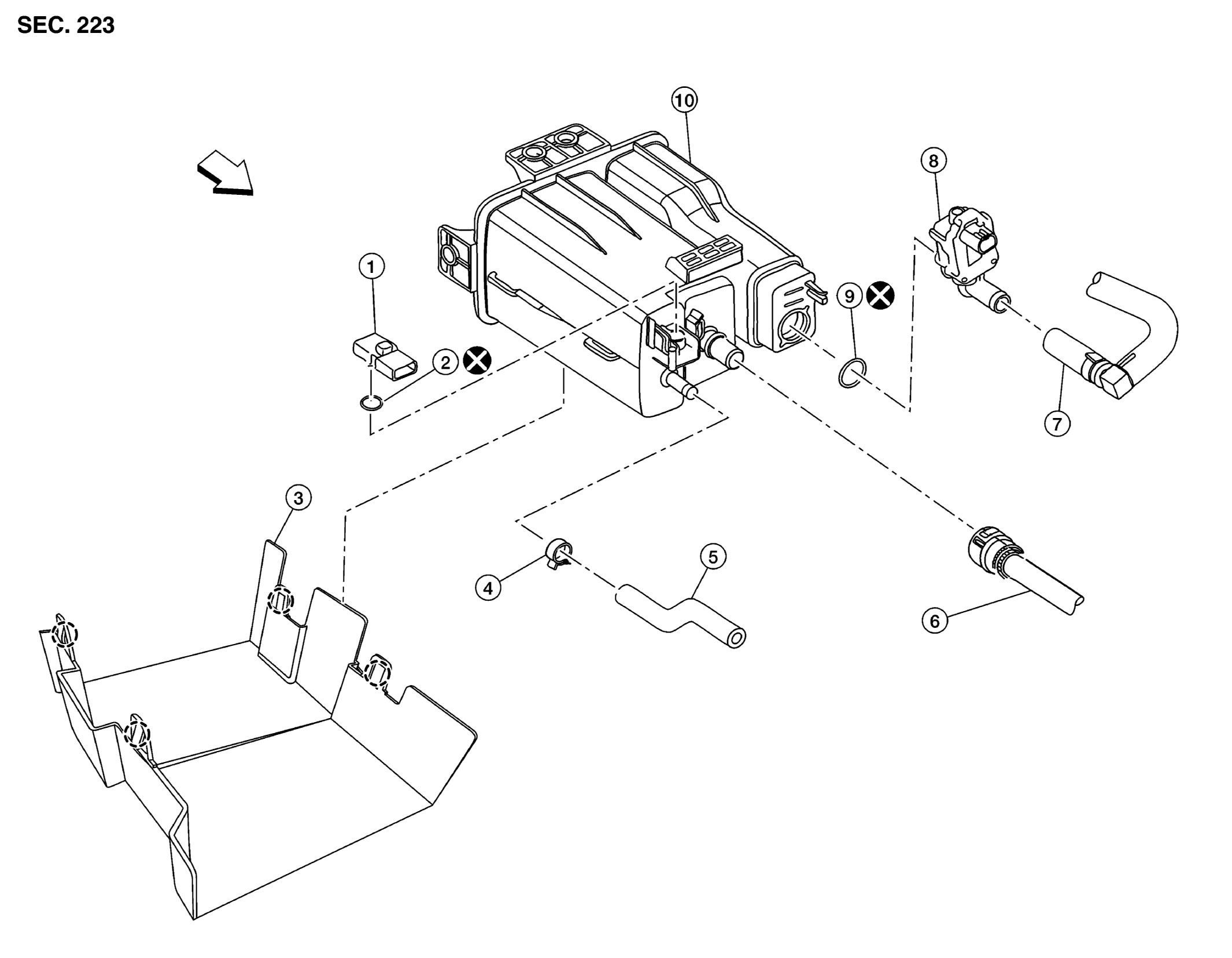

Fig 1: Exploded View Of EVAP Control System Pressure Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP control system pressure sensor	2.	O-ring	3.	EVAP canister protector
4.	Hose clamp	5.	EVAP canister purge hose	6.	EVAP vent line
7.	EVAP canister vent control valve hose	8.	EVAP canister vent control valve	9.	O-ring
10.	EVAP canister		Pawl		Front
