Component Location

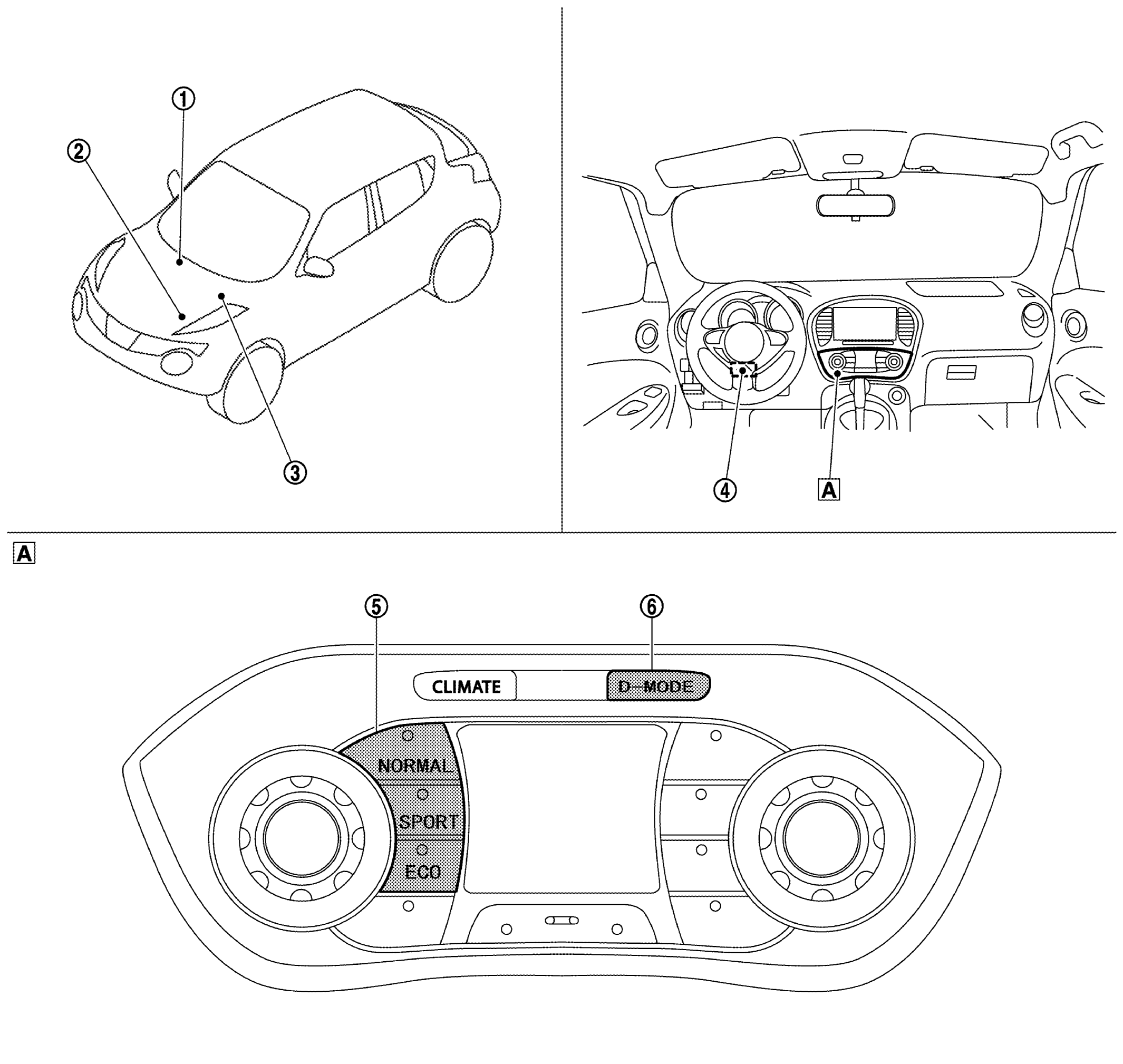

GNSJSNIA7514ZZ-514Courtesy of NISSAN NORTH AMERICA, INC.
1. A/C auto amp
Refer to COMPONENT LOCATION .		 2. ECM
Refer to COMPONENT LOCATION (MR FOR NISMO RS MODELS) or COMPONENT LOCATION (MR EXCEPT FOR NISMO RS MODELS).		 3. TCM
Refer to COMPONENT LOCATION (RE0F10B) or COMPONENT LOCATION (RE0F10D).
4. EPS control unit
Refer to COMPONENT LOCATION .		 5. Drive mode switch
  • NORMAL switch
  • SPORT switch
  • ECO switch
 6. D-MODE select switch
A. Multi display unit
