Exploded View

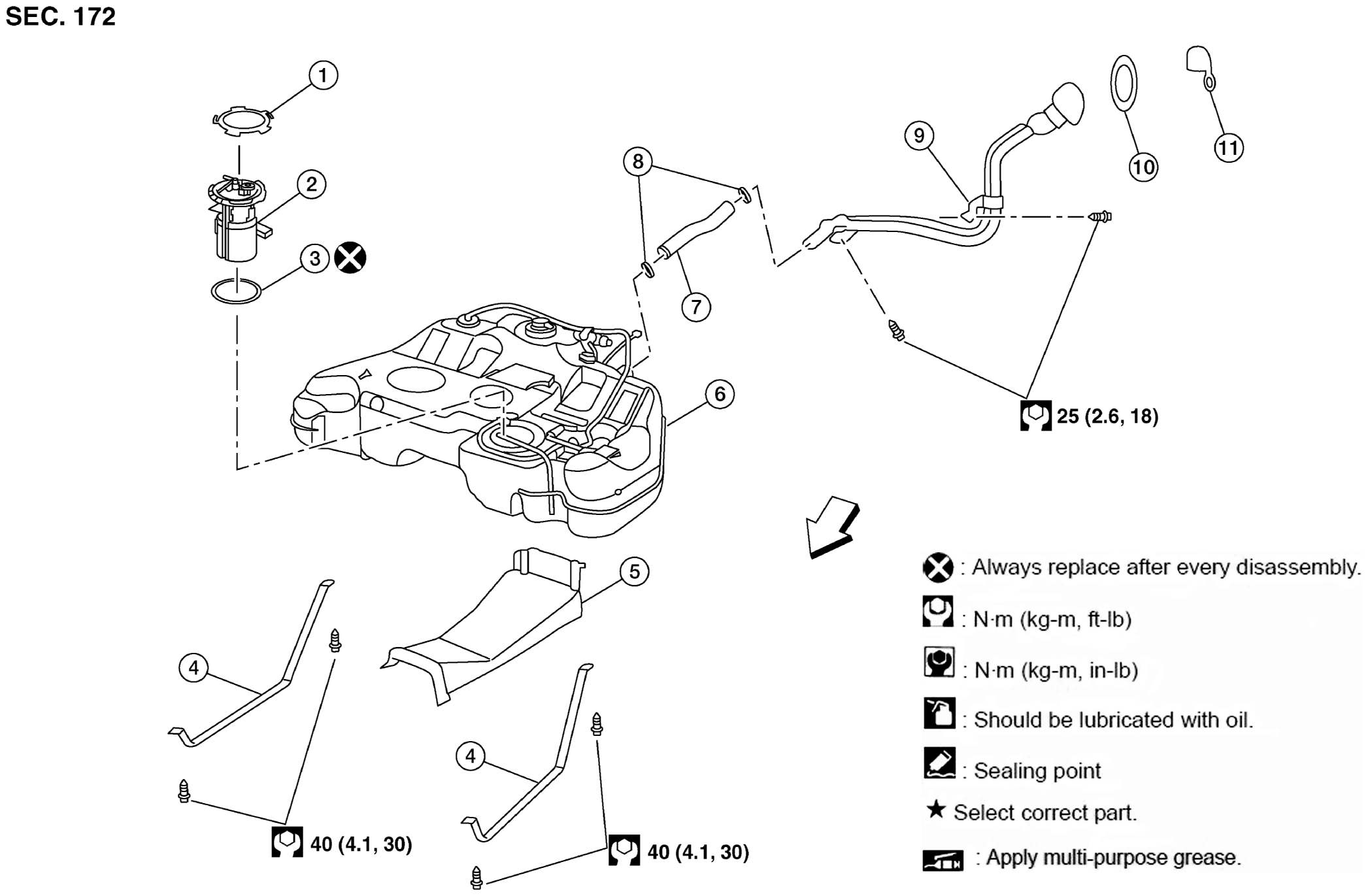

Fig 1: Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Lock ring	2.	Fuel level sensor unit, fuel filter, and fuel pump assembly	3.	O-ring
4.	Fuel tank mounting straps	5.	Fuel tank protector	6.	Fuel tank
7.	Fuel filler hose	8.	Clamp	9.	Fuel filler hose
10.	Grommet	11.	Fuel filler cap		Front
