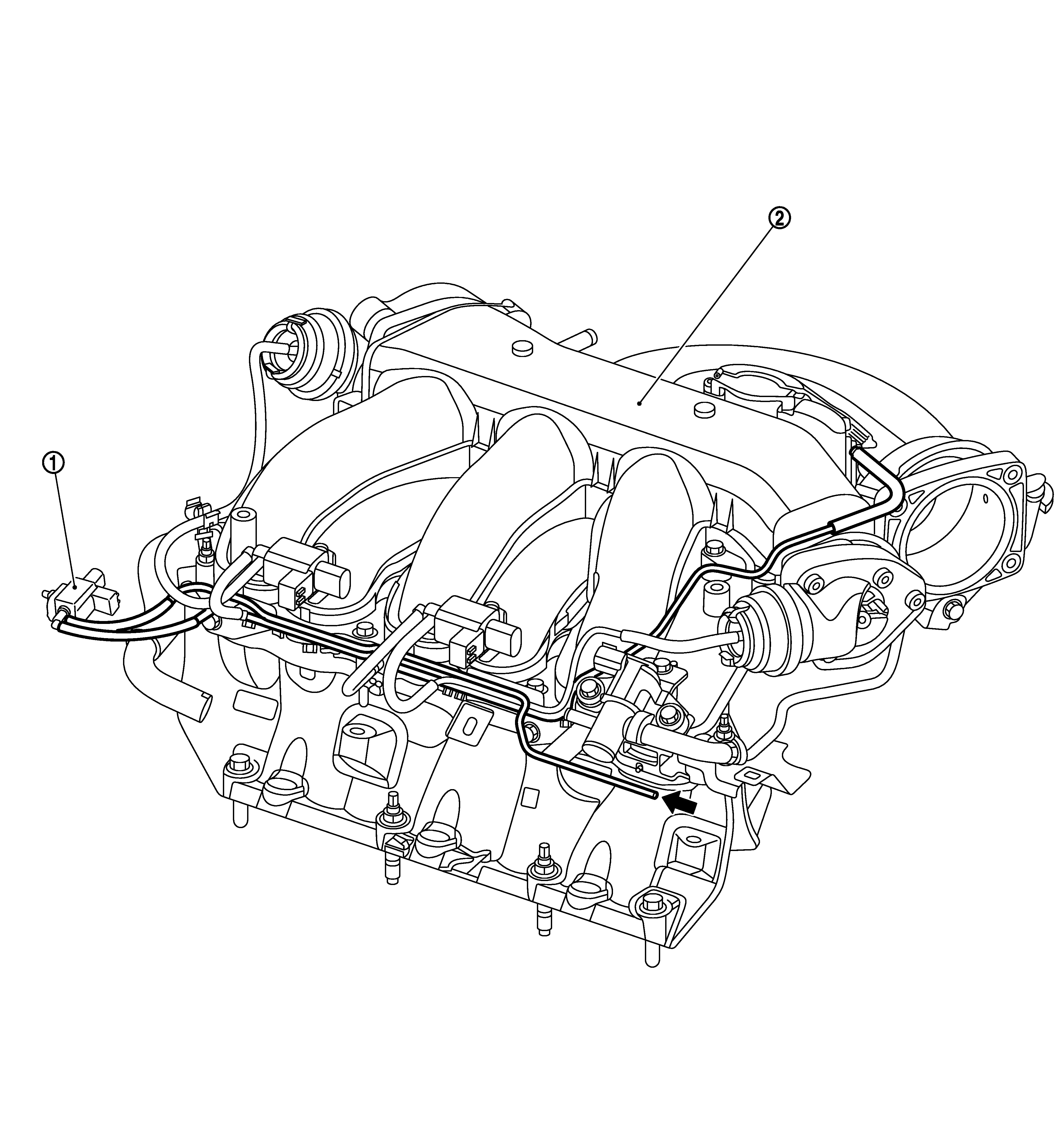

Electronic Controlled Engine Mount Line Drawing

Courtesy of NISSAN NORTH AMERICA, INC.

	Electronic controlled engine mount control solenoid valve		Intake manifold collector
	: From next figure

Courtesy of NISSAN NORTH AMERICA, INC.

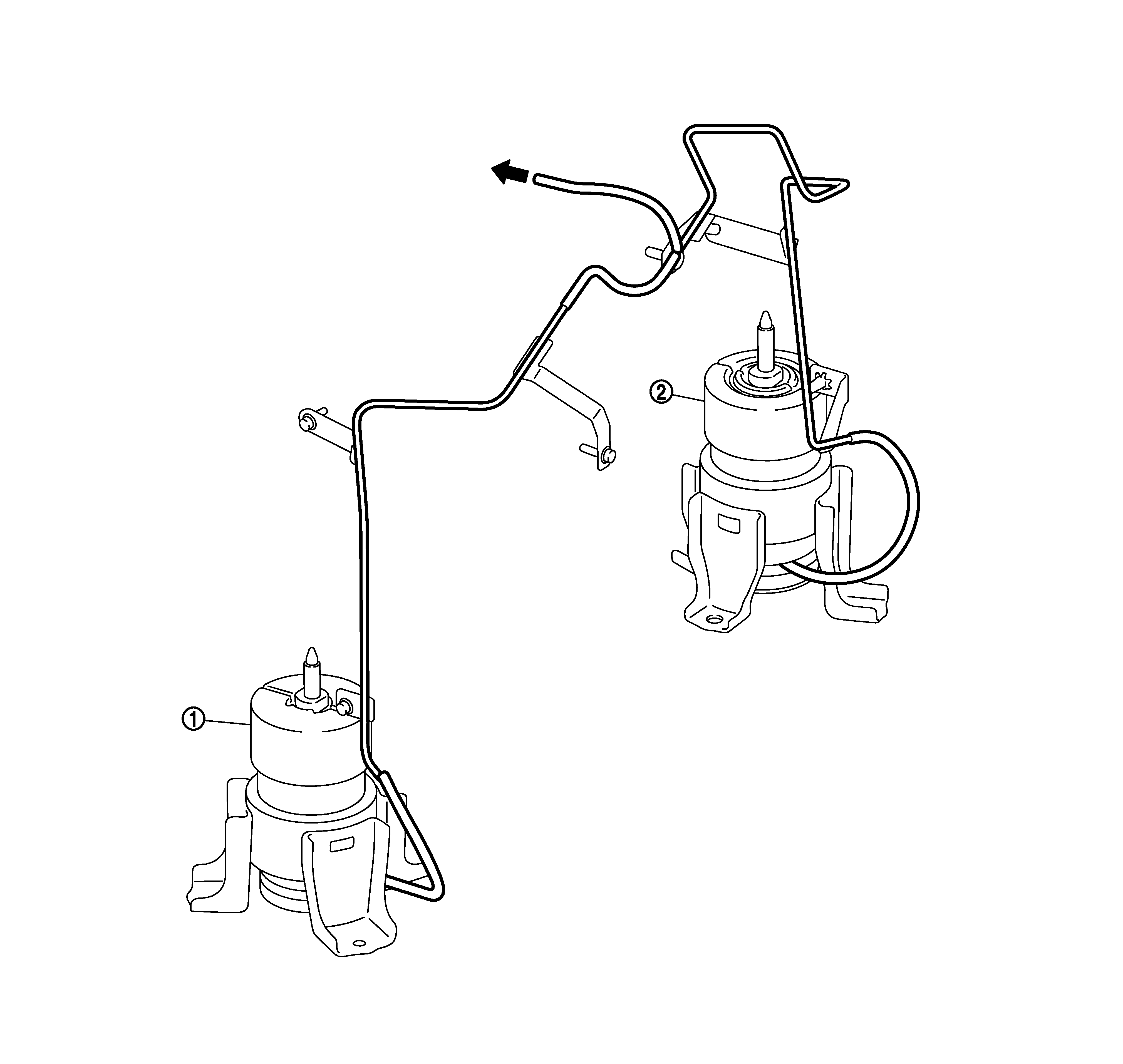

	Front electronic controlled engine mount		Rear electronic controlled engine mount
	: To previous figure

NOTE:

Do not use soapy water or any type of solvent while installing vacuum hose.
