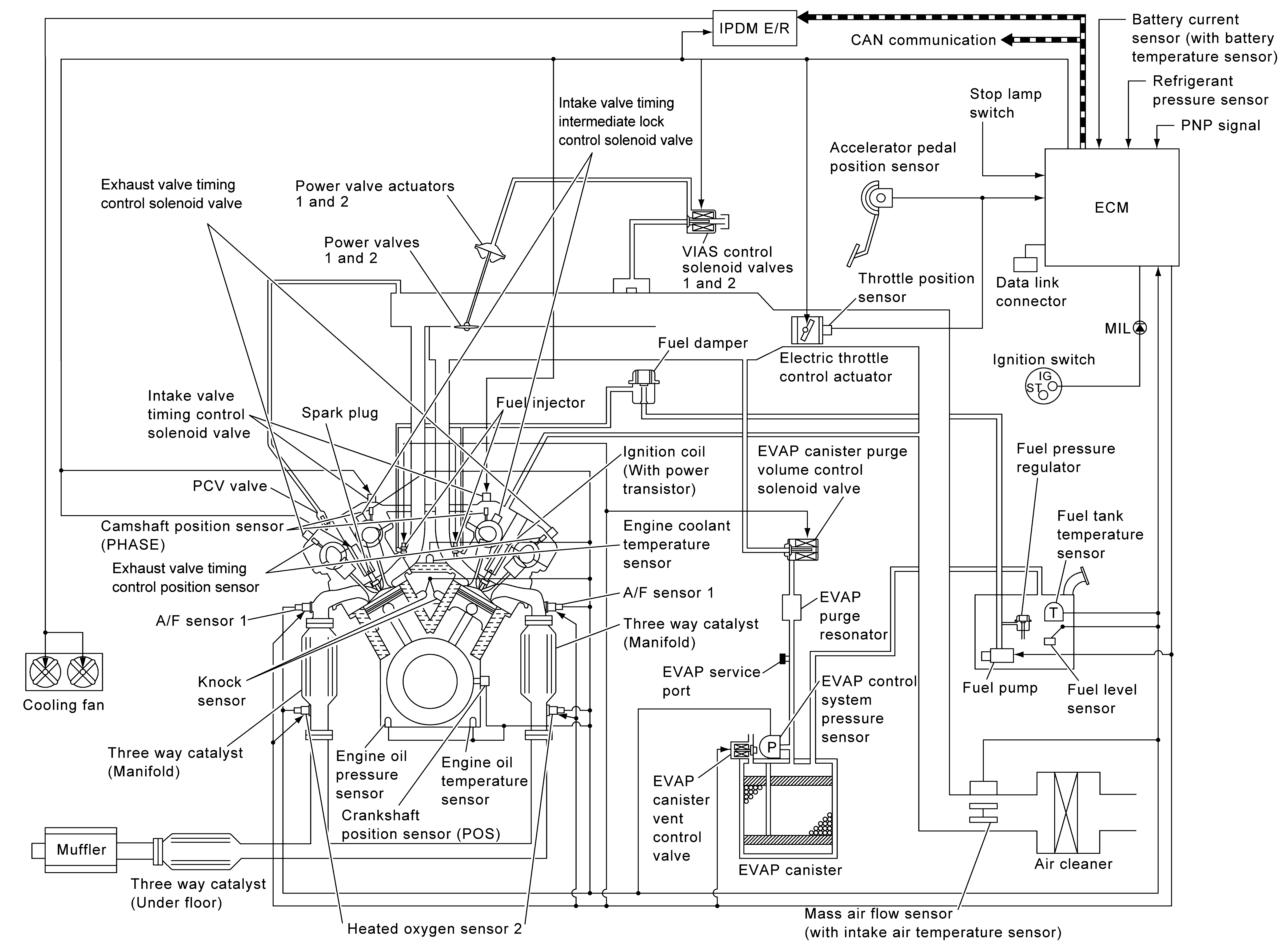

Home >> Nissan-Datsun >> 2017 >> Maxima SL >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Introduction) >> System Description >> System >> Engine Control System >> System Description >> System Diagram
