Exploded View With Torque Specifications

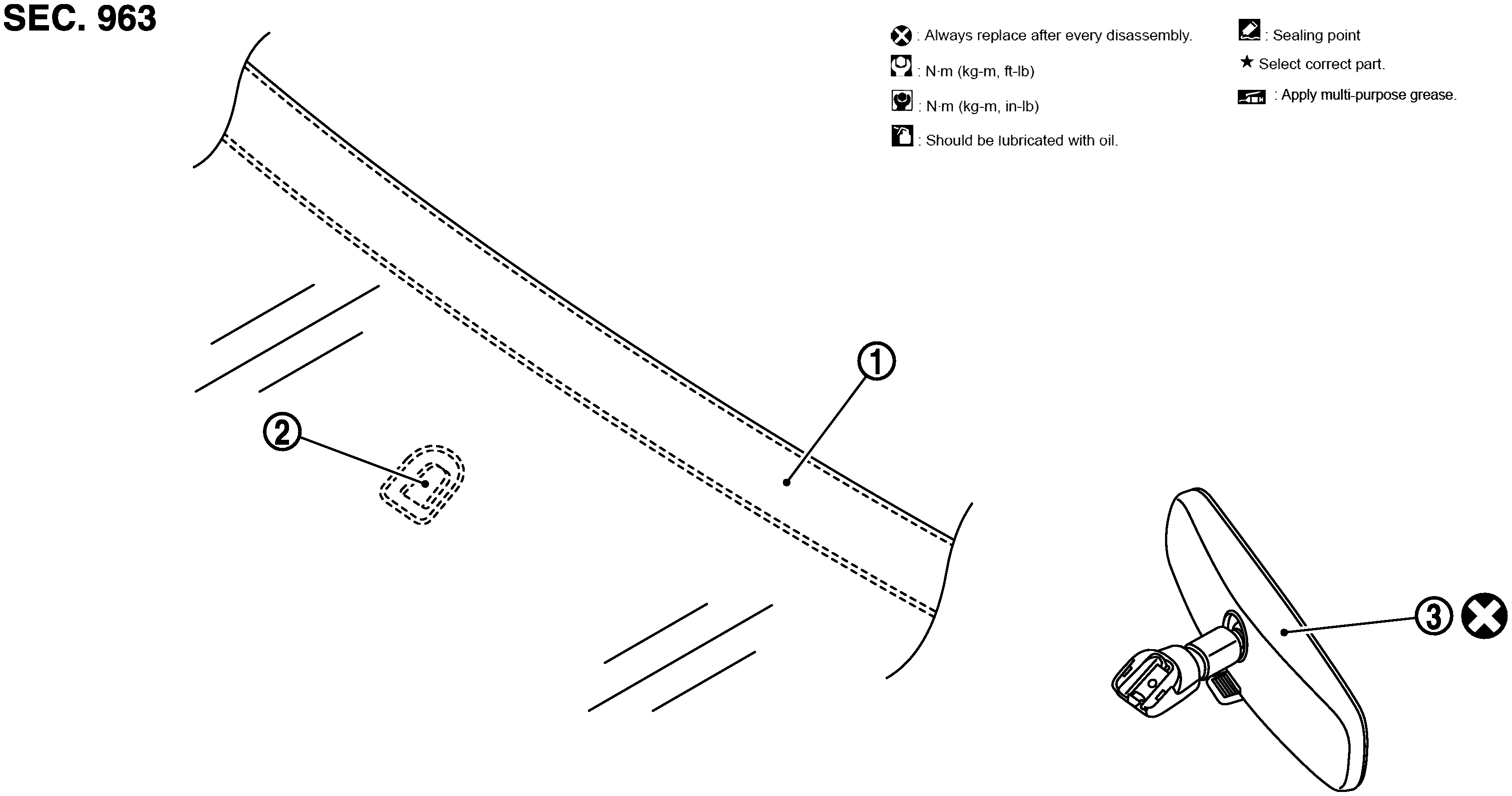

Manual Mirror

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Windshield glass

2.

Inside mirror base

3.

Inside mirror assembly

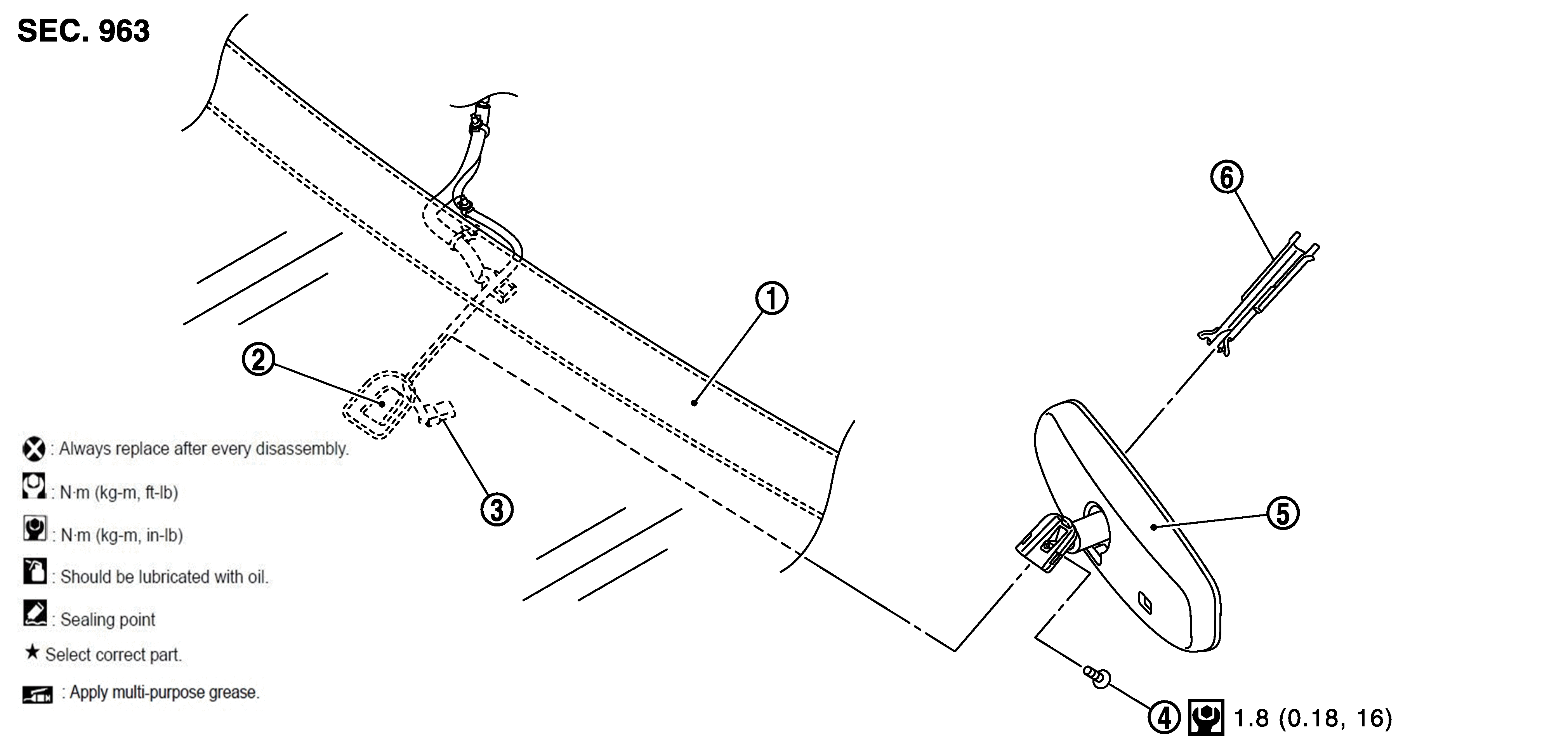

Auto Anti-dazzle Mirror

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield glass	2.	Inside mirror base	3.	Harness connector
4.	Mirror screw	5.	Inside mirror assembly	6.	Inside mirror cover
