Starter Motor
>>
Exploded View
Exploded View

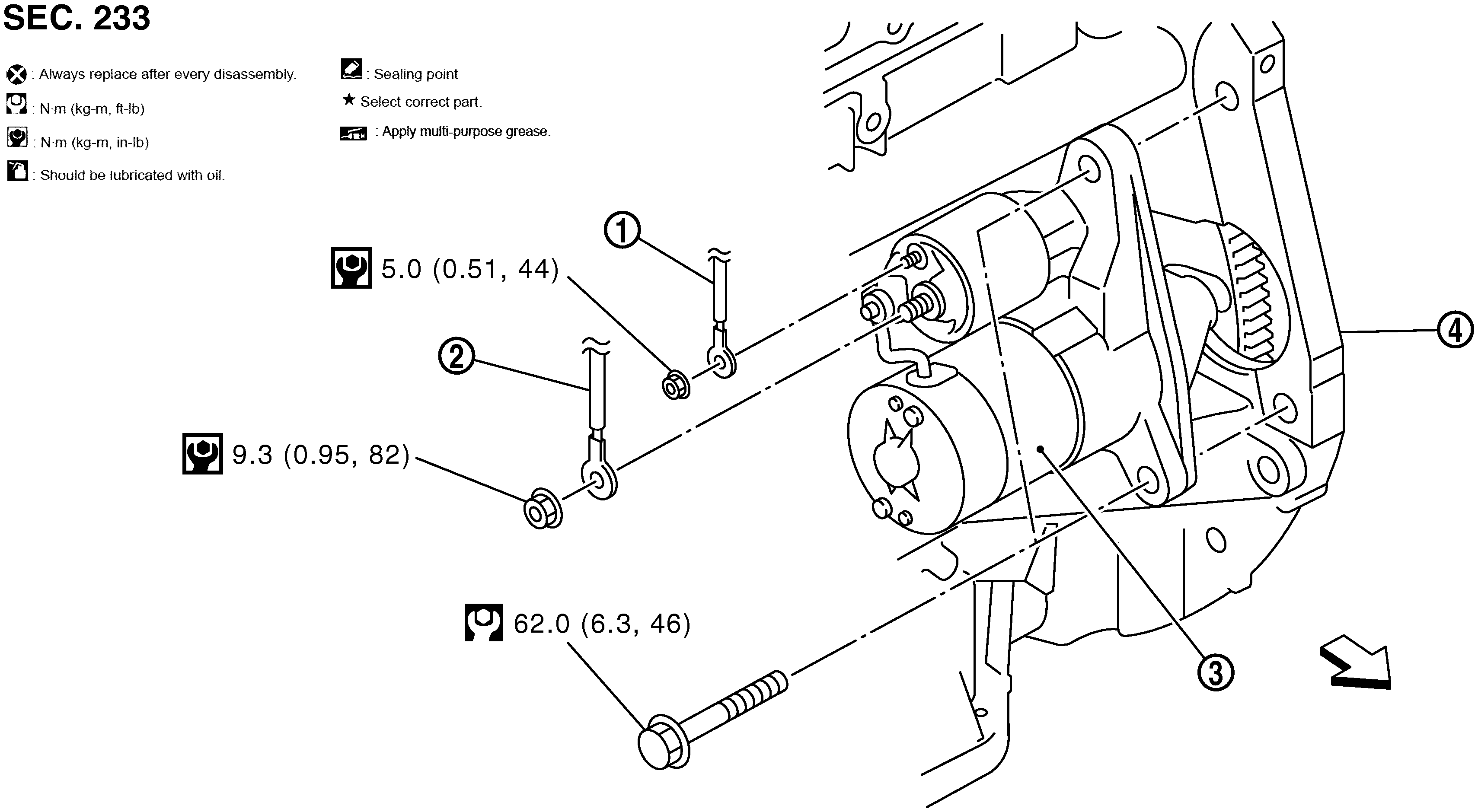

Fig 1: Starter Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Terminal "S" harness
2.
Terminal "B" harness
3.
Starter motor
4.
Cylinder block
Front
