Exploded View

MRA8DE

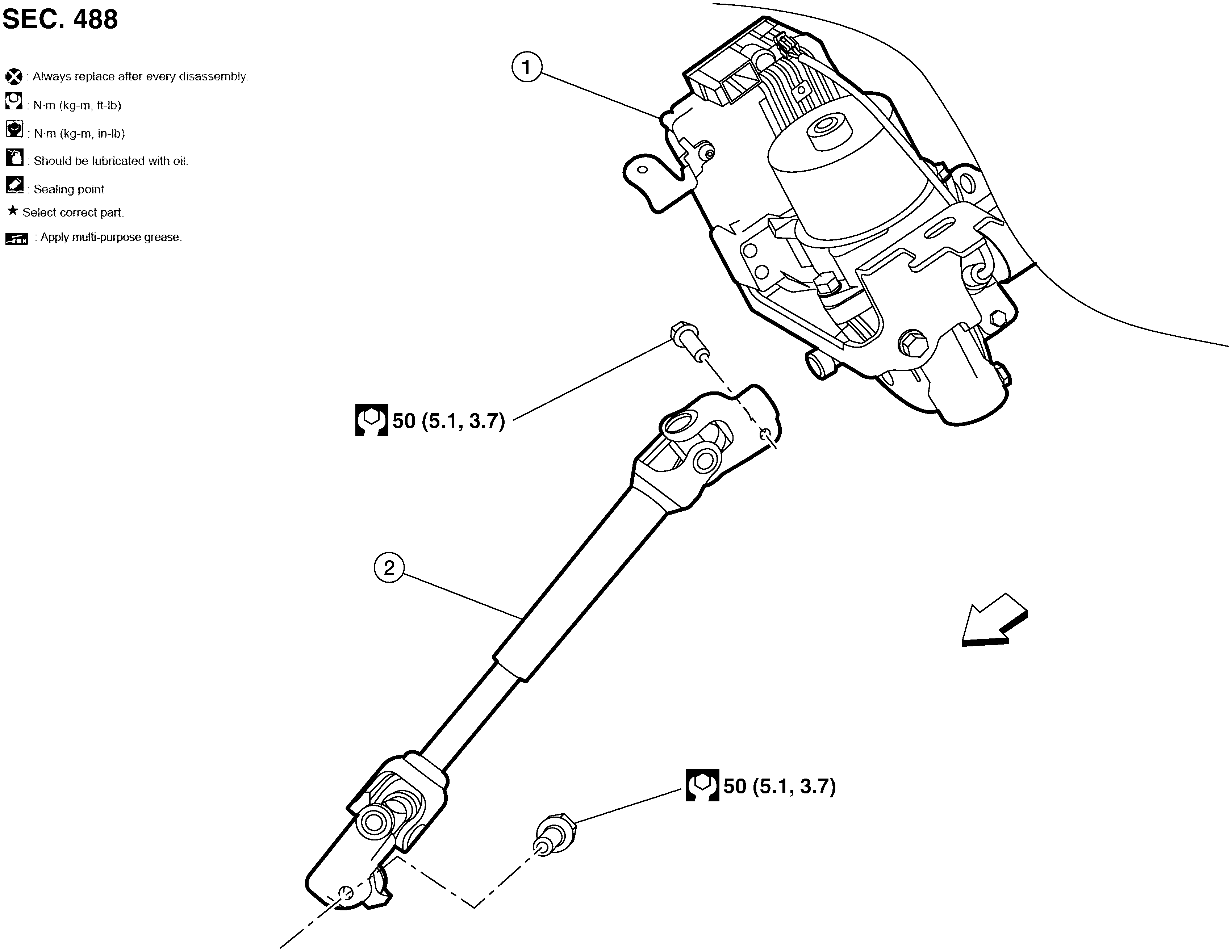

Fig 1: Lower Joint MRA8DE With Torque Specifications
GNSALGIA0355ZZ-355Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Lower joint ARROW Front

MR16DDT

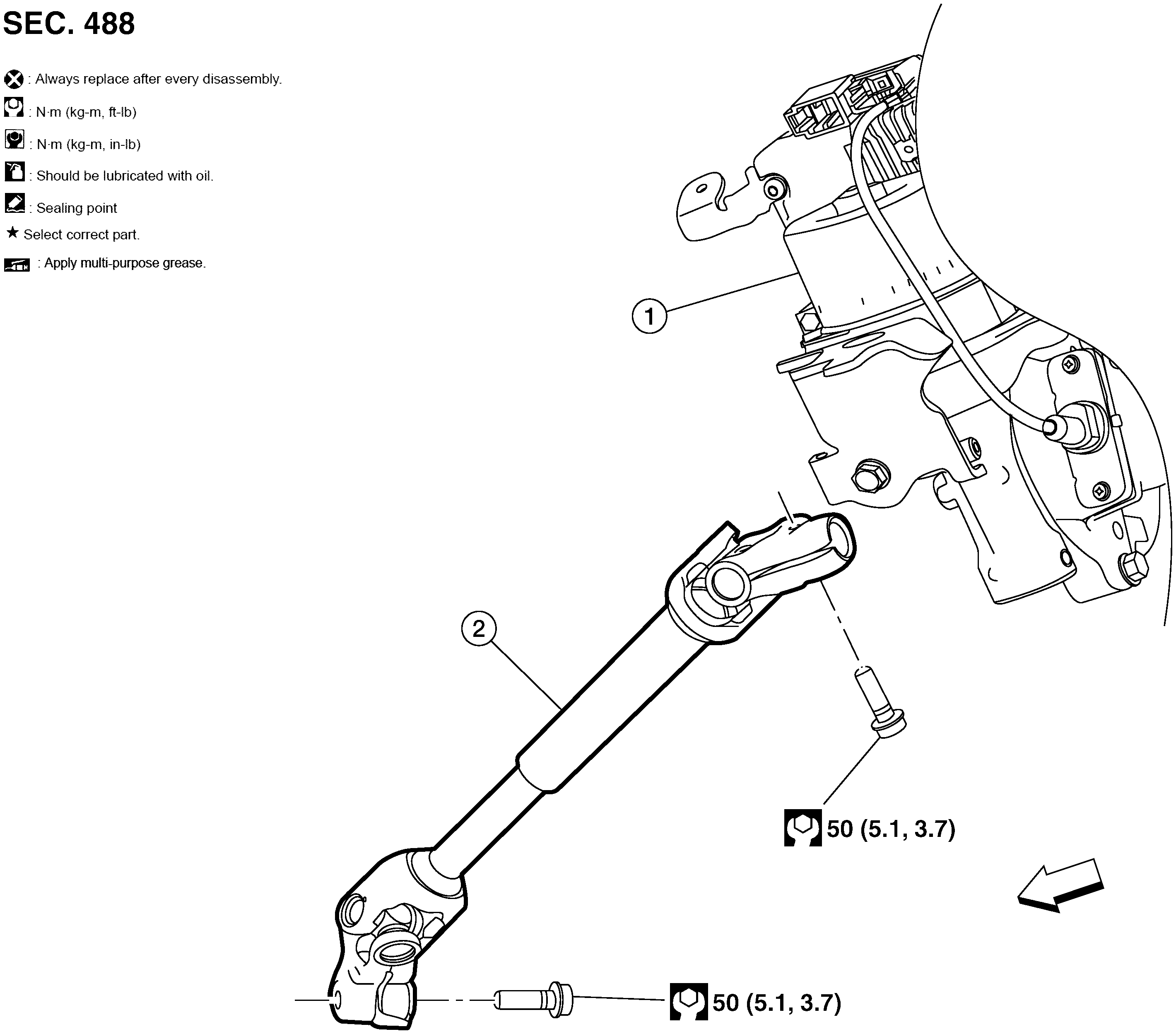

Fig 2: Lower Joint MR16DDT With Torque Specifications
GNSALGIA0363ZZ-363Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Lower joint ARROW Front
