Exploded View

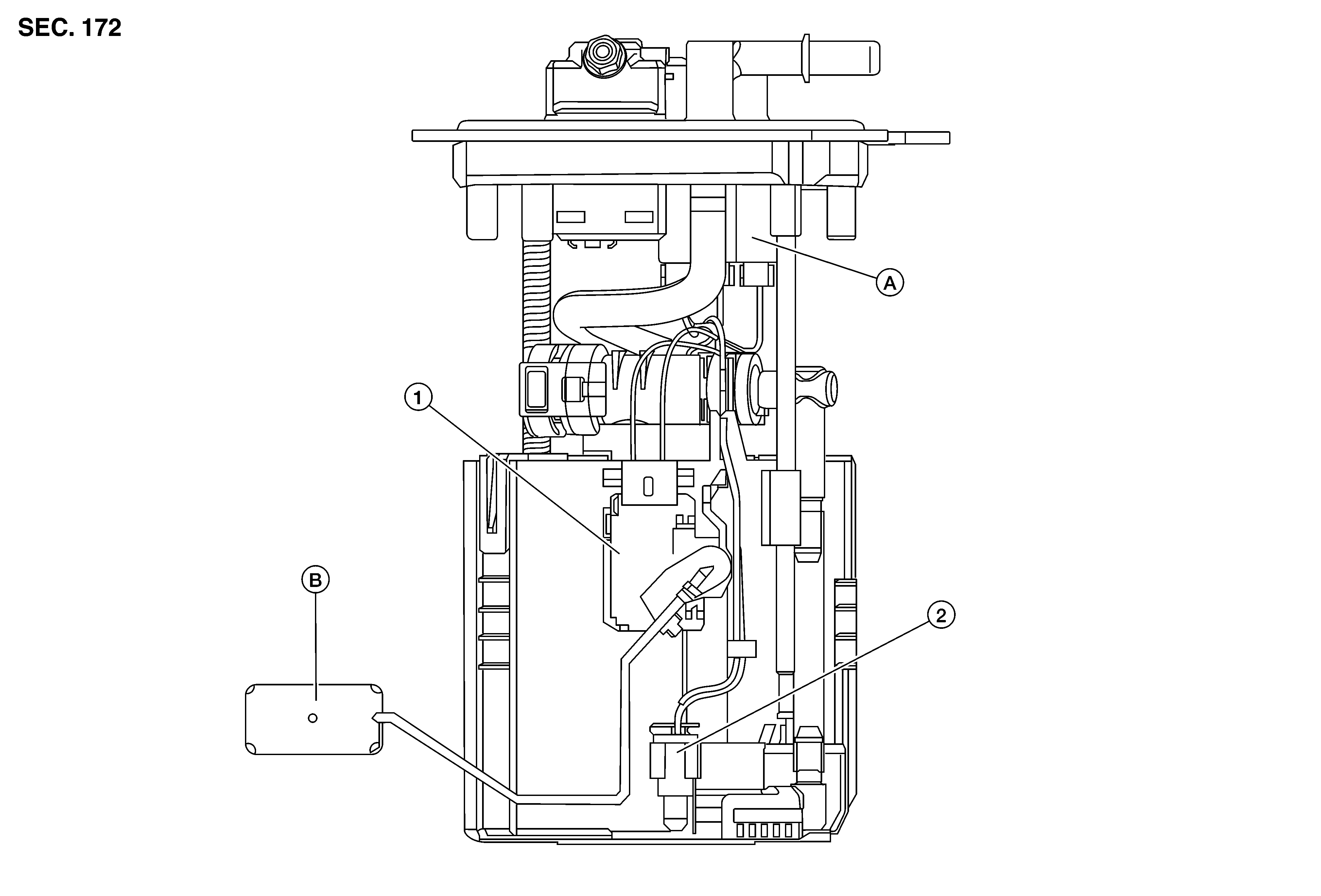

GNSDB118706Courtesy of NISSAN NORTH AMERICA, INC.

1.

Level sensor unit module

2.

Fuel temperature sensor

A.

Harness connector

B.

Float arm assembly
