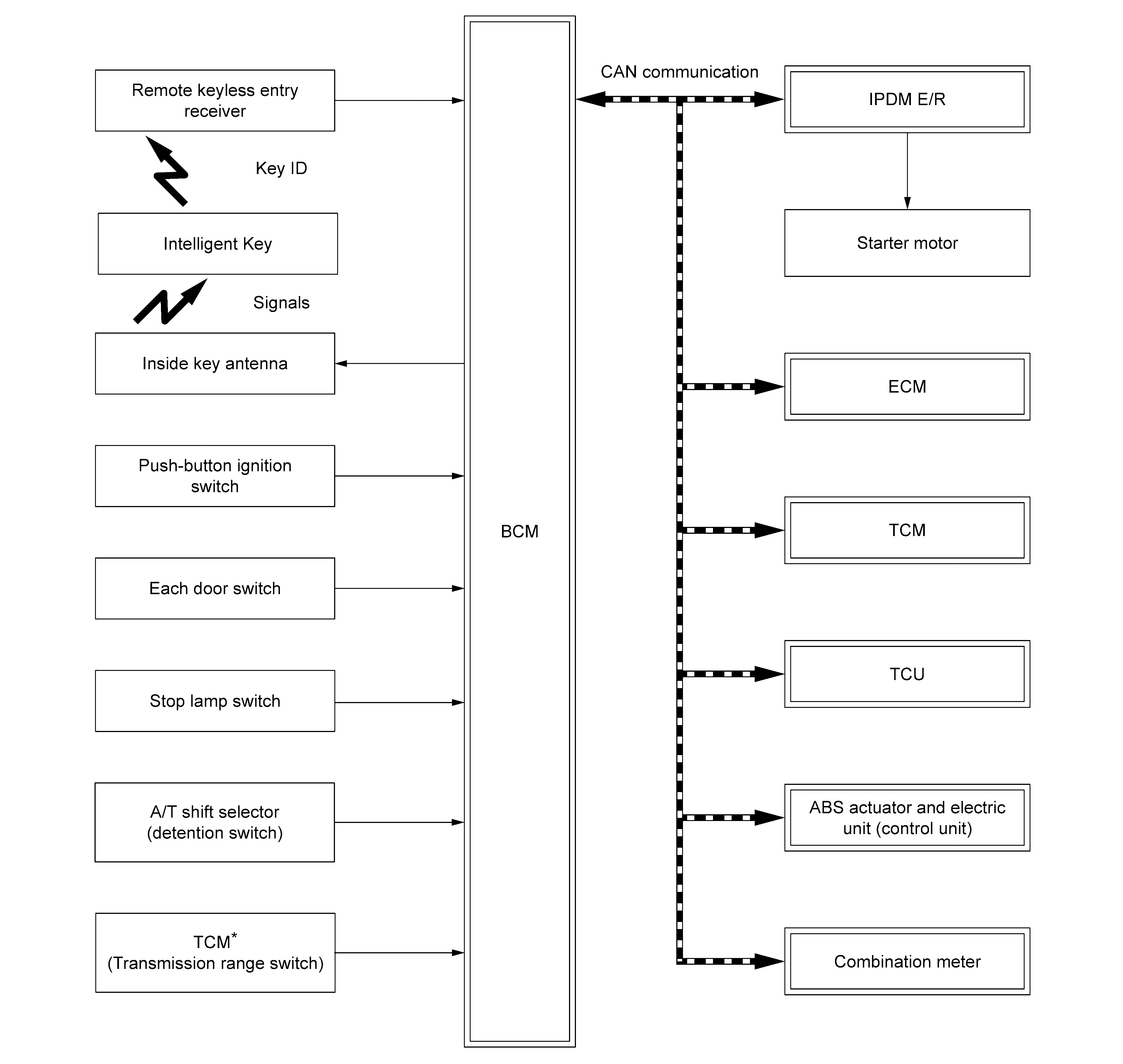

System Diagram

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
GNSJMKIB6953GB-953Courtesy of NISSAN NORTH AMERICA, INC.

*: For VR30DDTT engine models
