With Consult

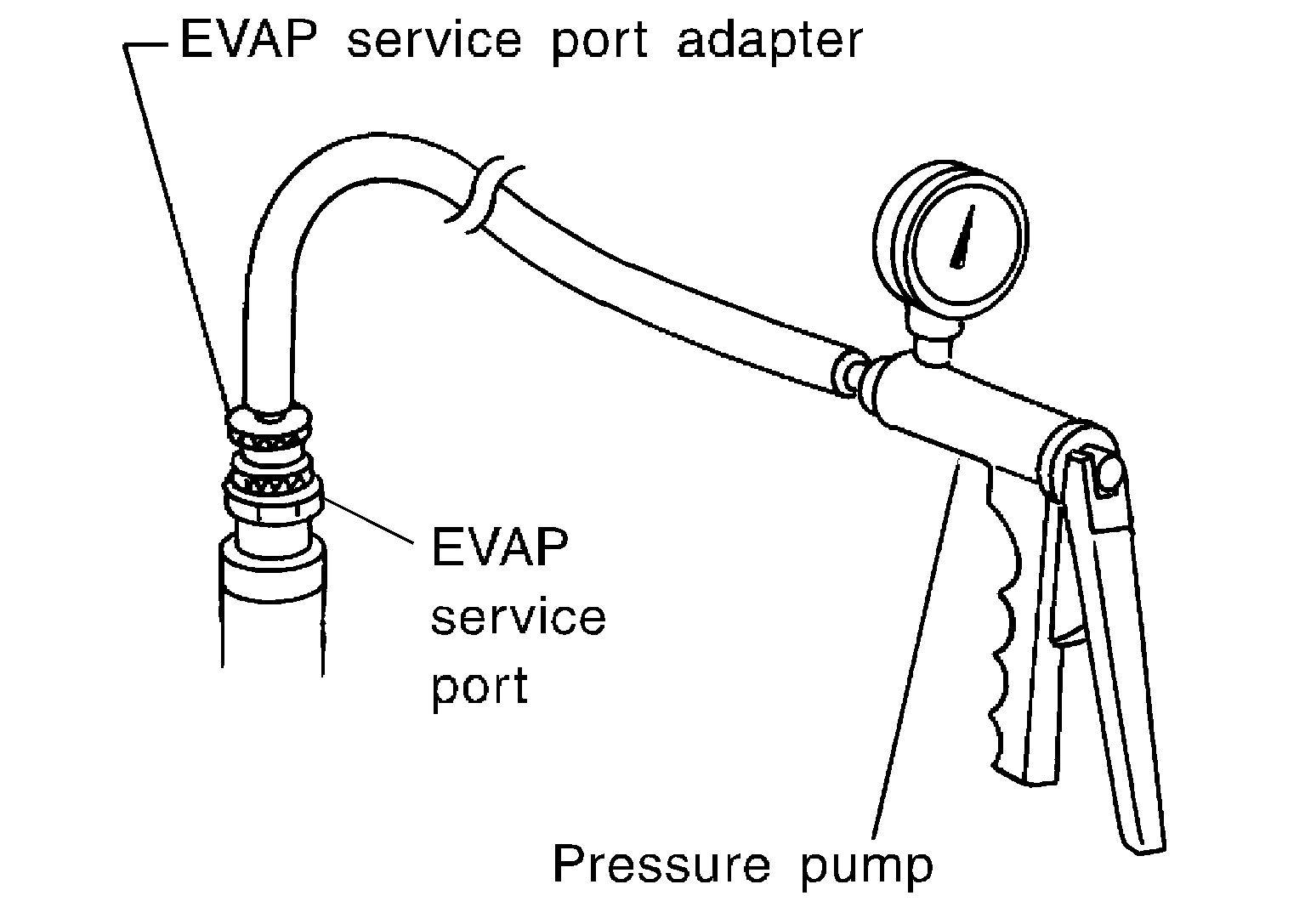

  1. To locate the EVAP leakage, install EVAP service port adapter (commercial service tool) and pressure pump to EVAP service port.
    G04074498Courtesy of NISSAN NORTH AMERICA, INC.
  2. Turn ignition switch ON.
  3. Select the "EVAP SYSTEM CLOSE" of "WORK SUPPORT MODE" with CONSULT.
  4. Touch "START". A bar graph (Pressure indicating display) will appear on the screen.
  5. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar graph.
  6. Remove EVAP service port adapter (commercial service tool) and hose with pressure pump.

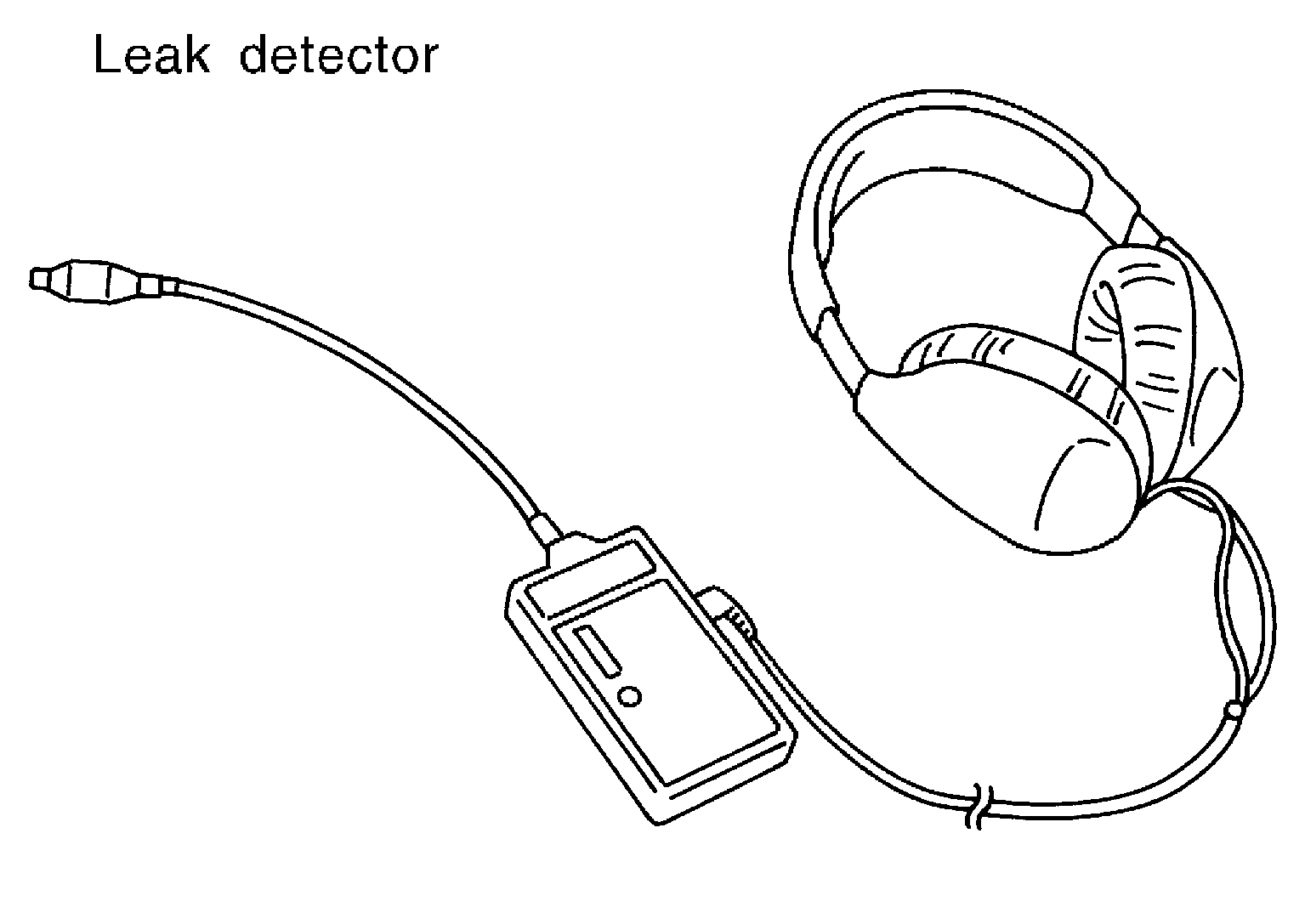

  7. Locate the leakage using a leakage detector (commercial service tool). Refer to System Description .
    G04080319Courtesy of NISSAN NORTH AMERICA, INC.
