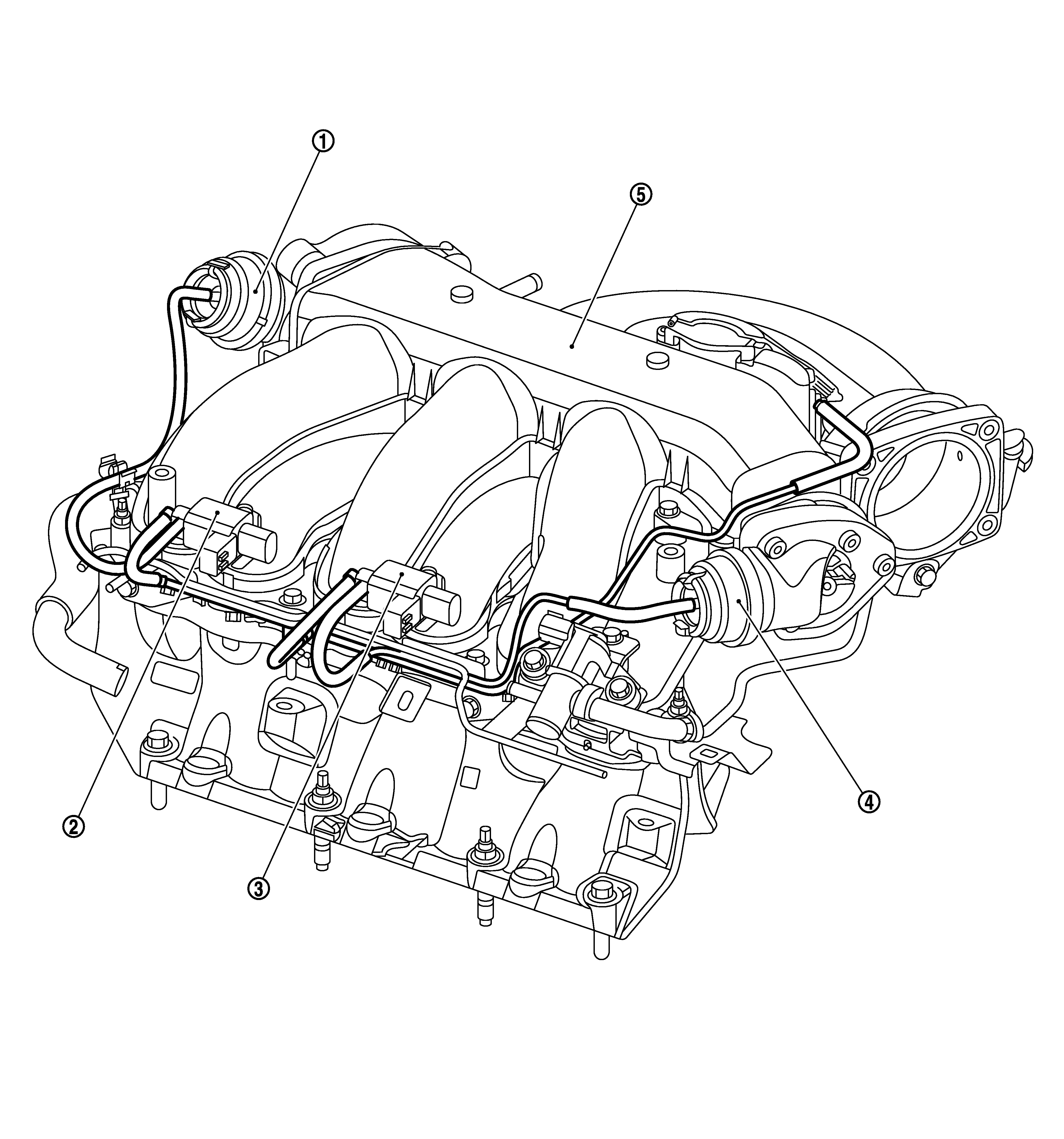

Vacuum Hose Drawing

GNSJMBIA0172Z-172

Courtesy of NISSAN NORTH AMERICA, INC.

	Power valve actuator 1		VIAS control solenoid valve 1		VIAS control solenoid valve 2
	Power valve actuator 2		Intake manifold collector
