Exploded View
Exploded View

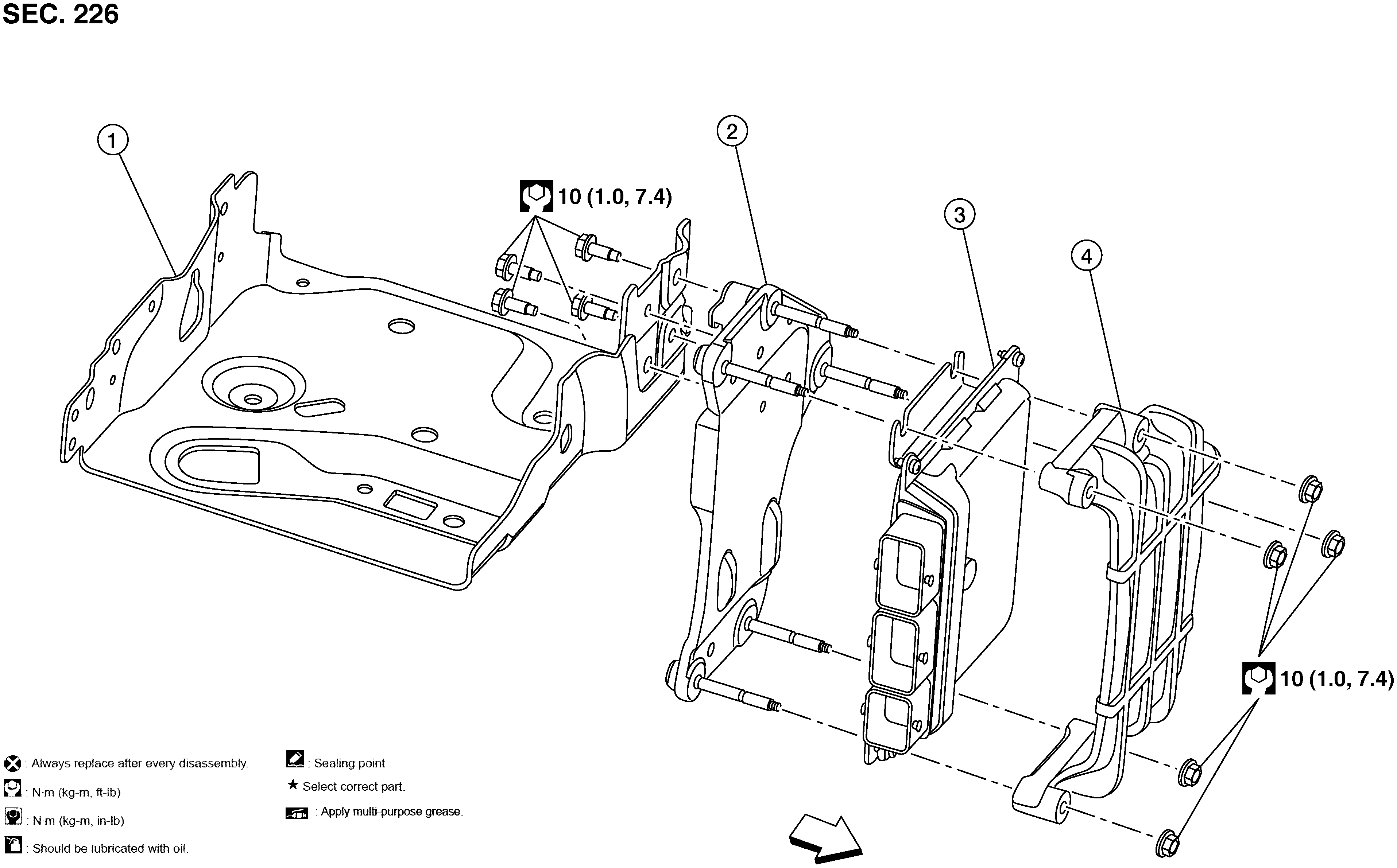

Fig 1: ECM Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
ECM bracket
2.
ECM rear cover
3.
ECM
4.
ECM front cover
Front
Courtesy of NISSAN NORTH AMERICA, INC.
