Exploded View

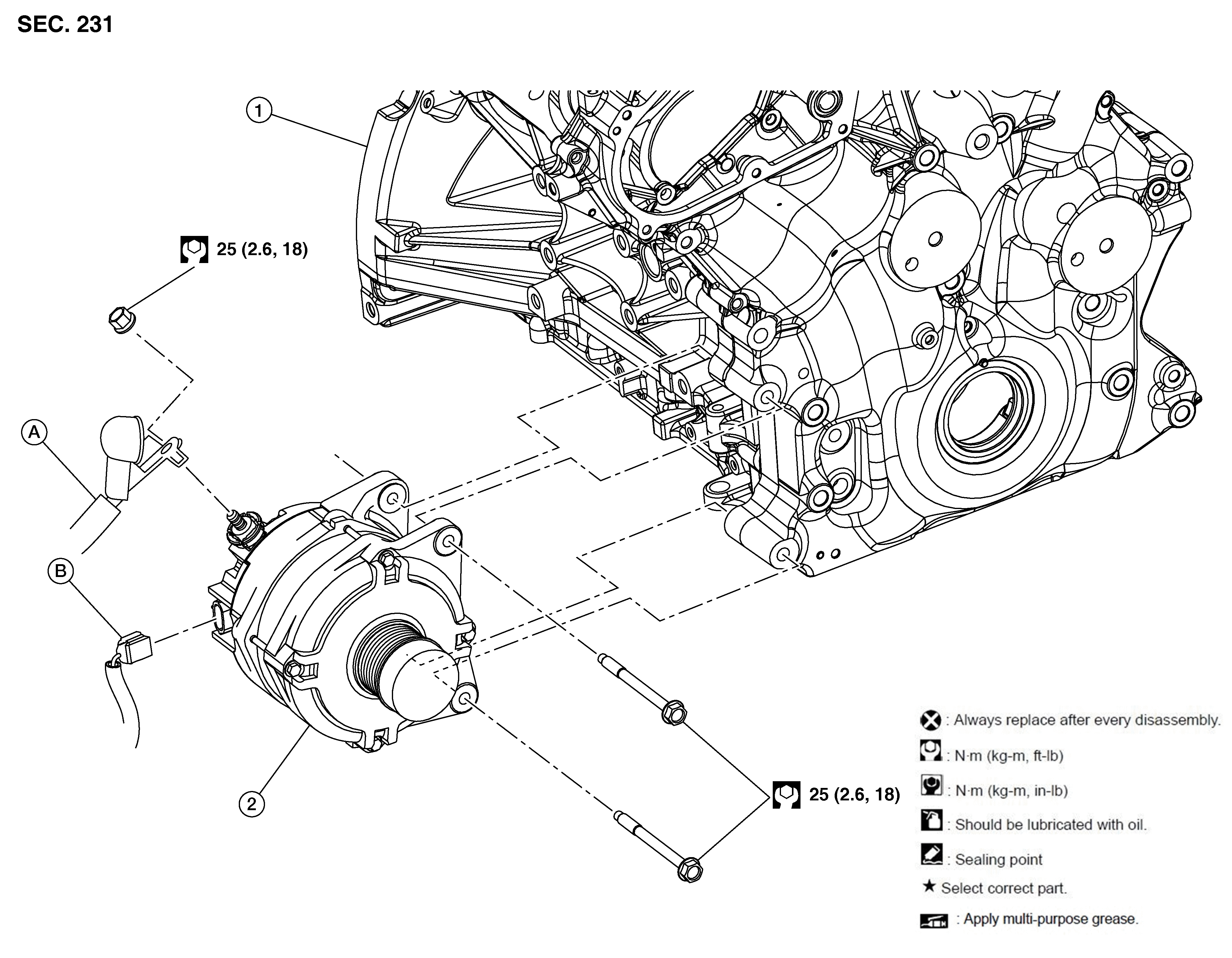

Fig 1: Generator Components With Torque Specifications

GNSAWMIA0164Z-164

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cylinder block	2.	Generator	A.	"B" terminal harness
B.	Harness connector
