Exploded View

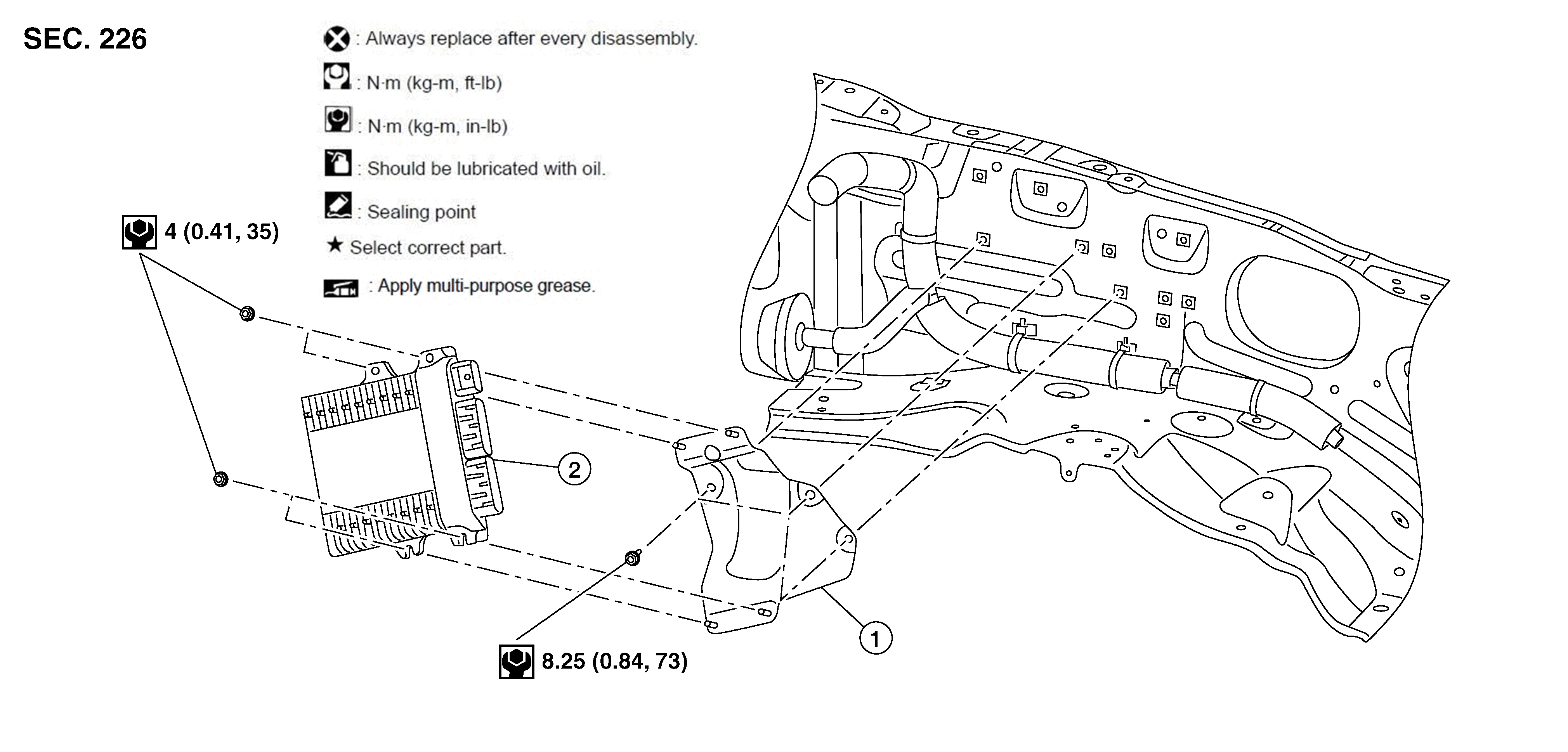

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications
GNSAWBIA0445Z-445Courtesy of NISSAN NORTH AMERICA, INC.

1.

Electric intake valve timing control module bracket

2.

Electric intake valve timing control module
