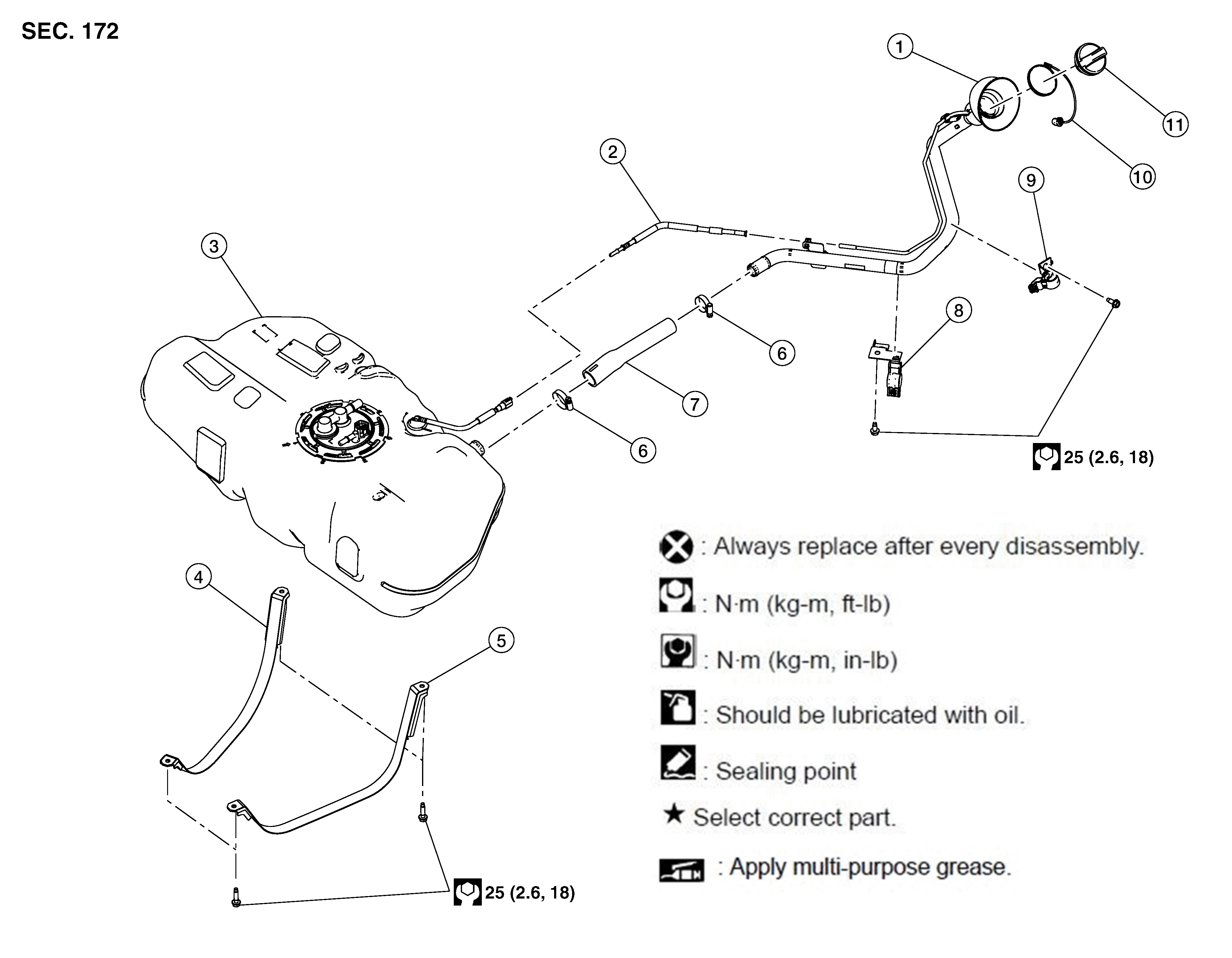

1.
Fuel filler tube
2.
Vent hose
3.
Fuel tank
4.
Fuel tank mounting band (RH)
5.
Fuel tank mounting band (LH)
6.
Clamp
7.
Fuel filler hose
8.
Fuel filler tube lower bracket
9.
Fuel filler tube upper bracket
10.
Fuel filler cap retainer
11.
Fuel filler cap
