System Description
>>
System
>>
Combination Switch Reading System
>>
System Description
>>

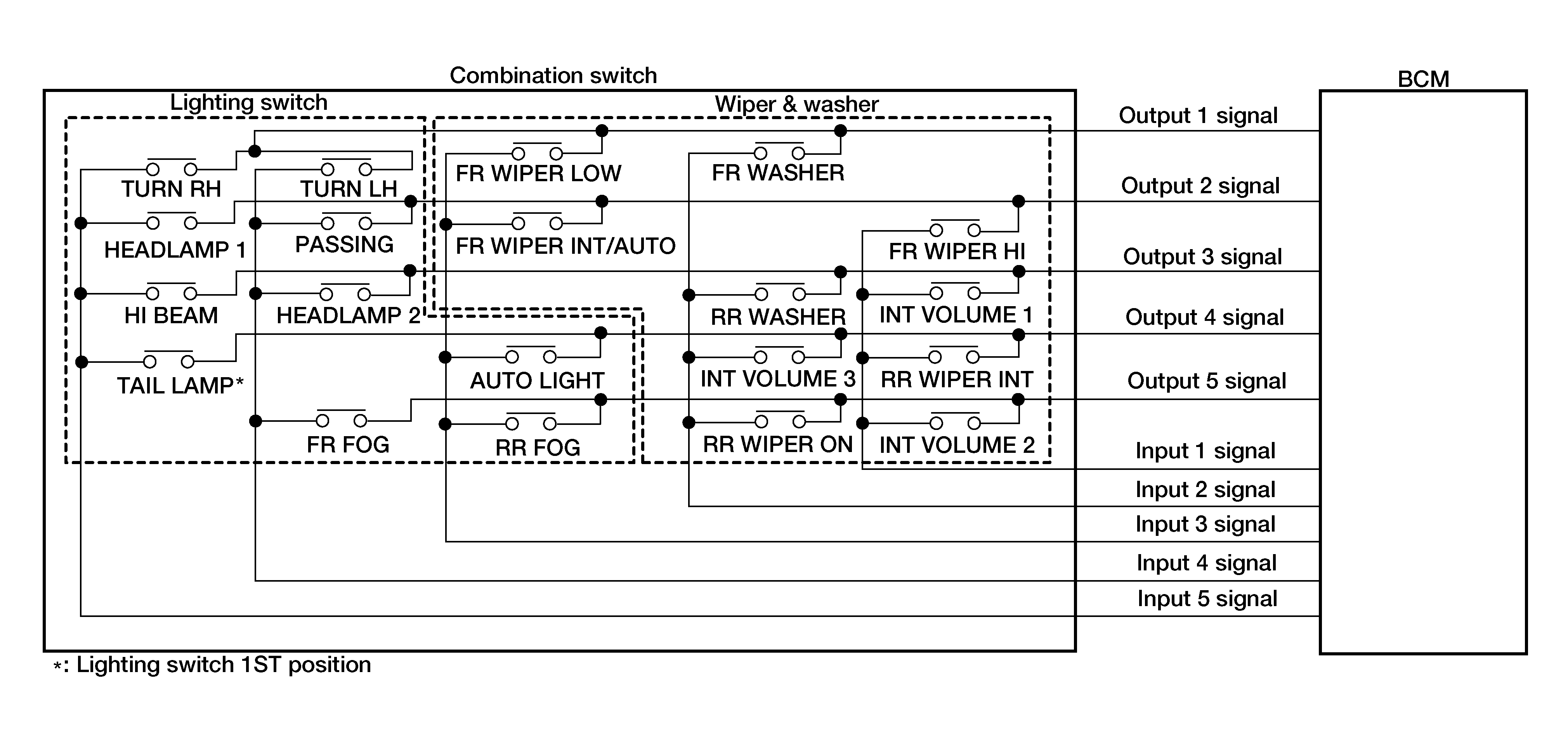

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
*: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
Courtesy of NISSAN NORTH AMERICA, INC.
