Home >> Nissan-Datsun >> 2021 >> Maxima SR >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (1 Of 2) >> System Description >> System >> Electric Ignition System >> System Description >> System Diagram

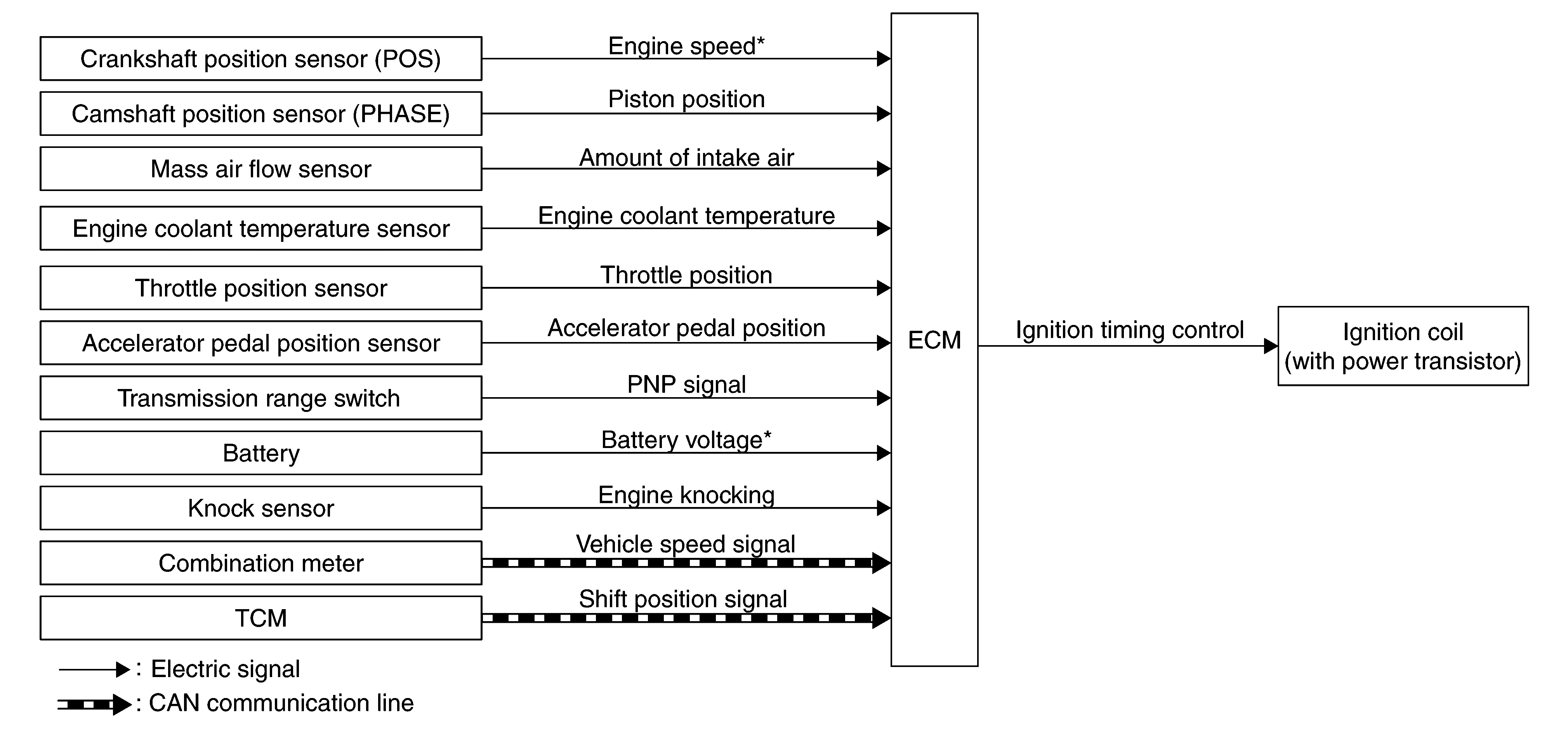

System Diagram

G08944554

Courtesy of NISSAN NORTH AMERICA, INC.

*: ECM determines the start signal status by the signals of engine speed and battery voltage.
