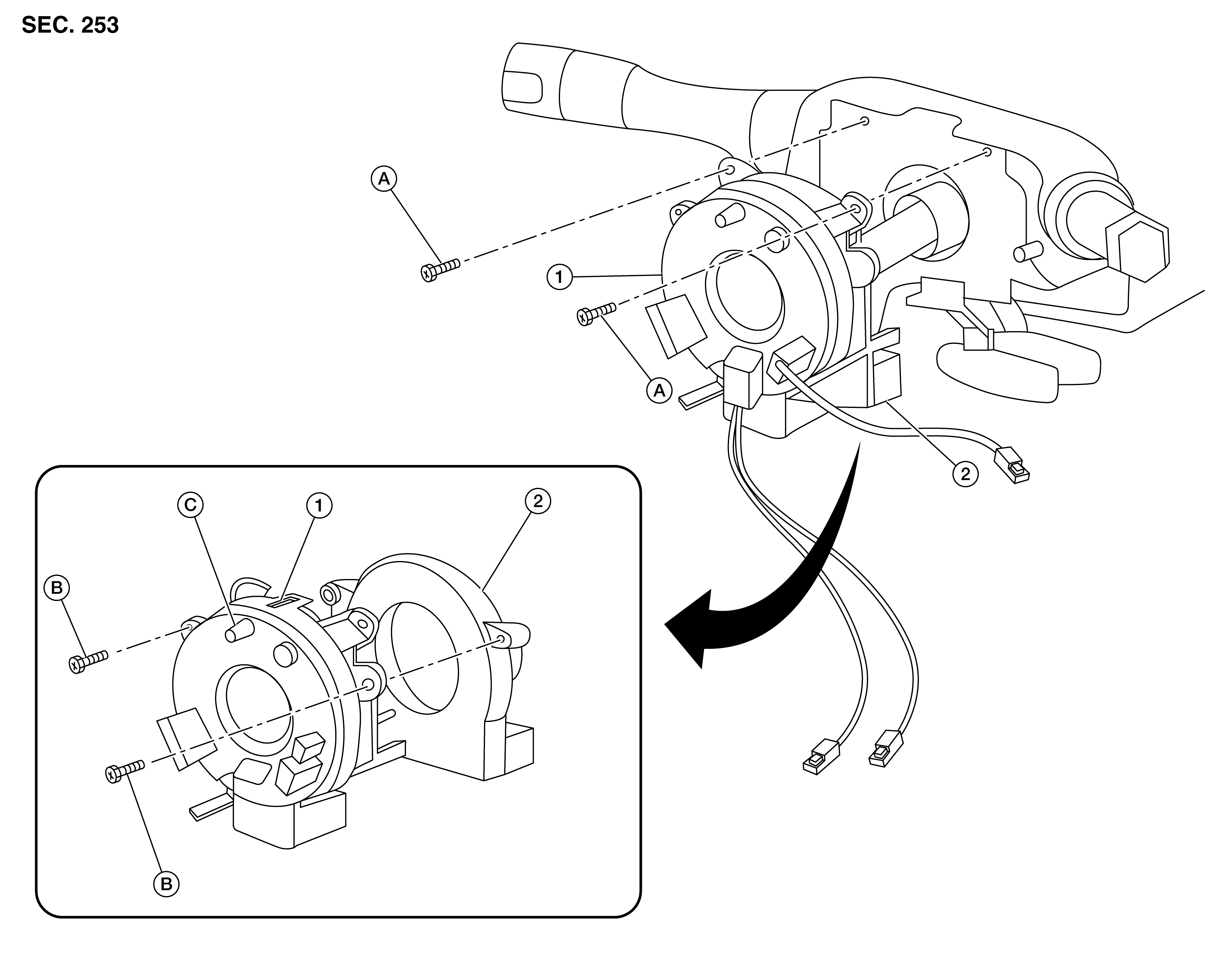

Exploded View

GNSDB121342Courtesy of NISSAN NORTH AMERICA, INC.

1.

Spiral cable

2.

Steering angle sensor

A.

Spiral cable screws

B.

Steering angle sensor screws

C.

Locating pin
