Murano SL, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (2 Of 2)
>>
Removal And Installation
>>
ECM
>>
Exploded View
Exploded View

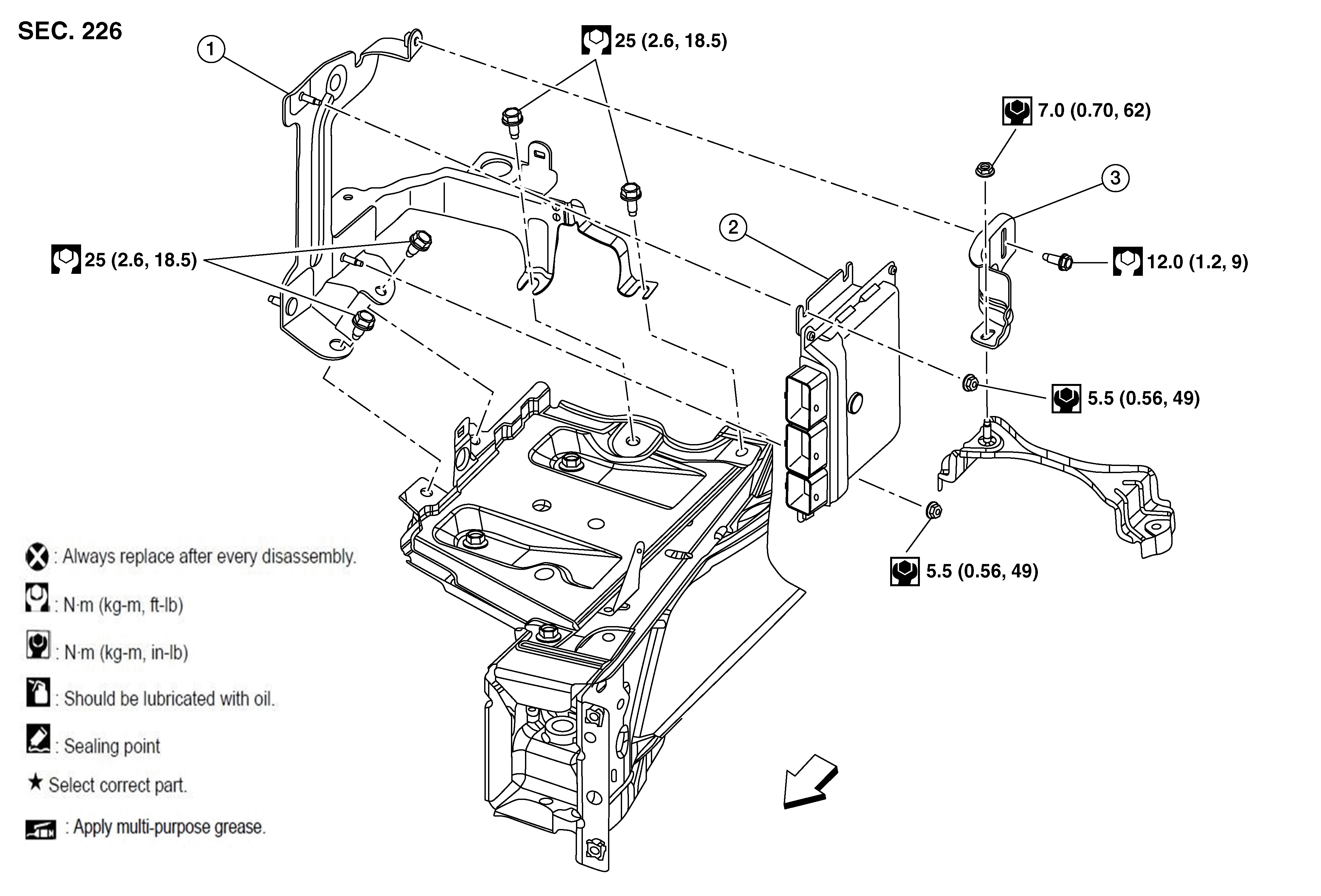

Fig 1: ECM With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
ECM bracket
2.
ECM
3.
ECM cover
Front
Courtesy of NISSAN NORTH AMERICA, INC.
