Exploded View

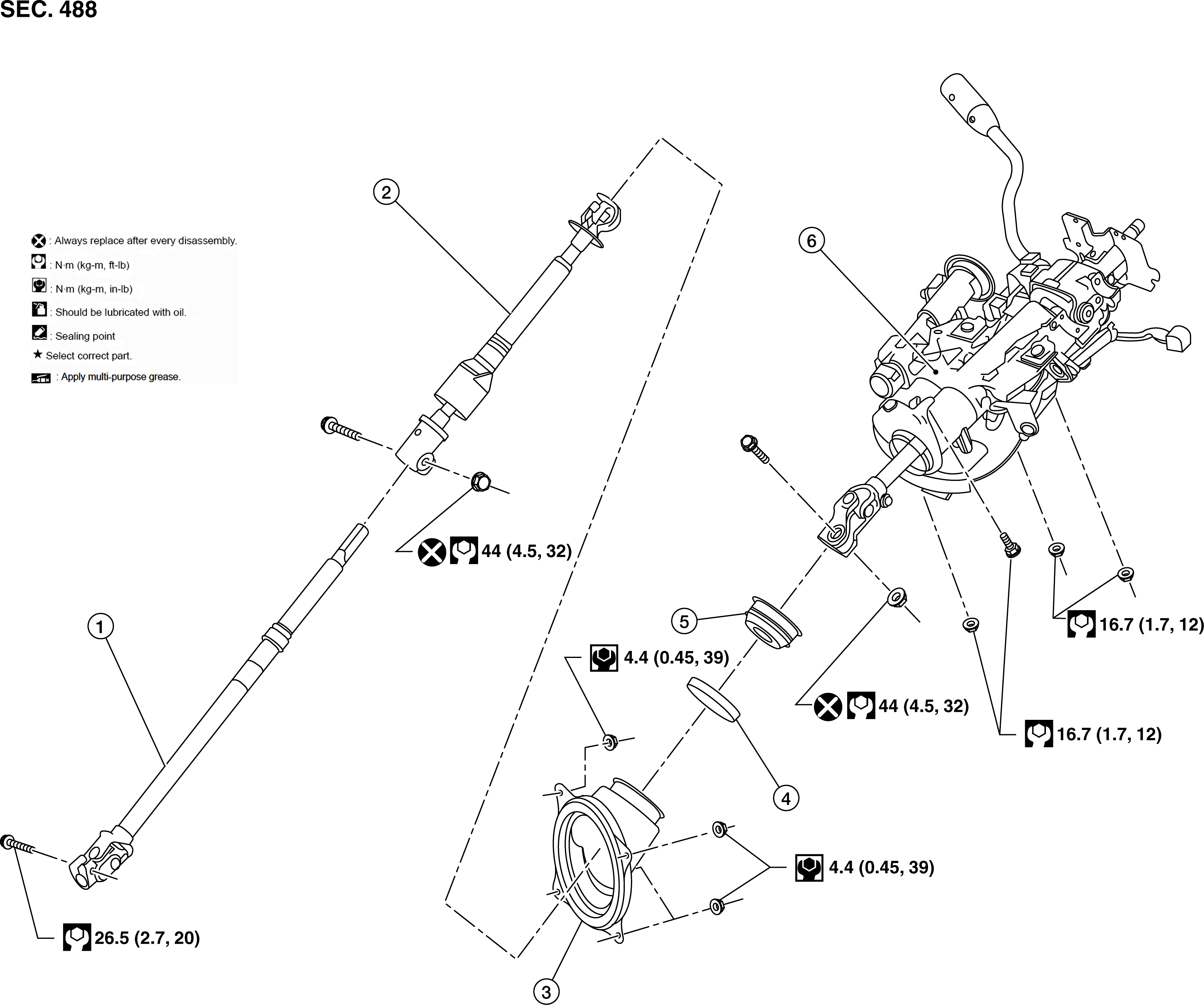

Fig 1: Steering Column With Torque Specifications
GNSAWGIA0203GB-203Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering lower joint

2.

Steering intermediate shaft

3.

Hole cover

4.

Herbie clip

5.

Hole cover seal

6.

Steering column assembly
