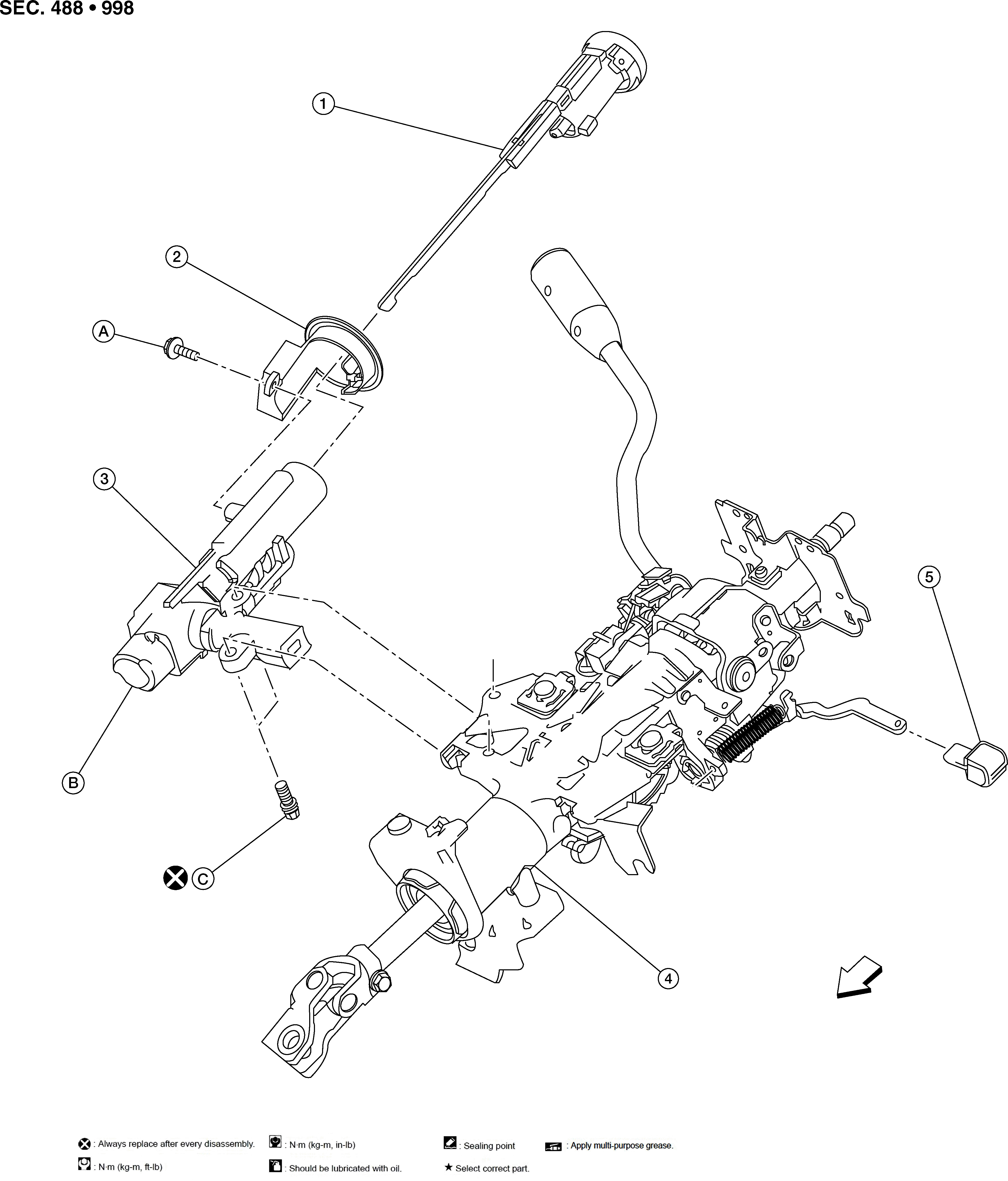

Disassembly and Assembly: Notes
|
1. |
Key cylinder |
2. |
NATS antenna amp. (if equipped) |
3. |
Steering lock unit |
|
4. |
Steering column |
5. |
Steering column tilt lever knob |
A. |
NATS antenna amp. bolt (if equipped) |
|
B. |
Ignition switch |
C. |
Tamper resistant self-shear screw |
|
Front |
CAUTION:
Use care when handling steering column during disassembly and assembly.
NOTE:
The steering lock unit and ignition switch are serviced as an assembly.
