Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Removal And Installation
>>
Horn
>>
Exploded View
Exploded View

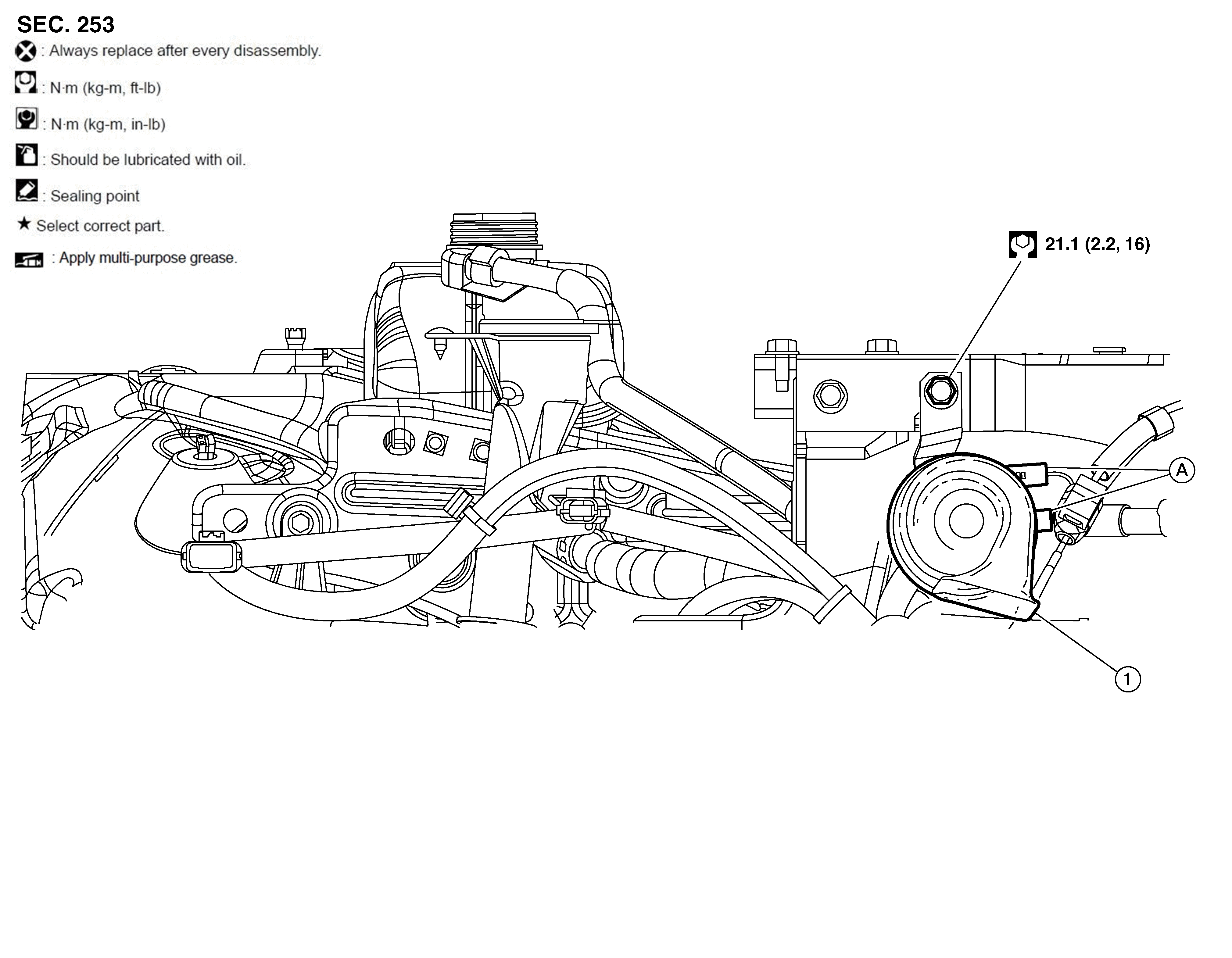

Fig 1: Horn Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Horn
A.
Harness Connectors
NOTE:
Shown with the front fascia removed for clarity.
Courtesy of NISSAN NORTH AMERICA, INC.
