Intake Manifold Runner Control Valve Position Sensor

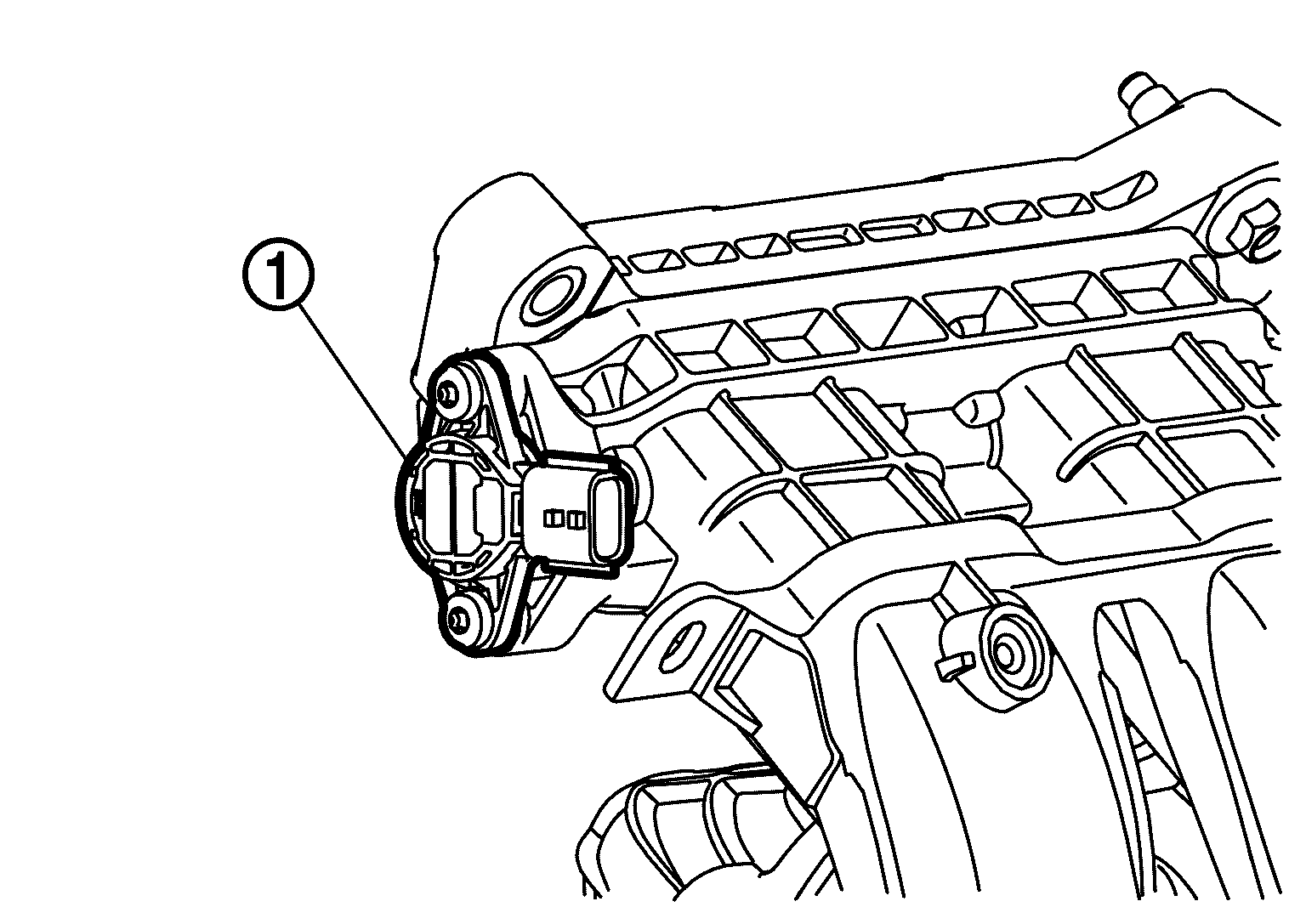

Intake manifold runner control valve position sensor SYMBOL is connected to the front end of the valve shaft.

GNSILL0290711-711Courtesy of NISSAN NORTH AMERICA, INC.

The sensor consists of variable resister. It senses the valve shaft movement and feeds the voltage signals to the ECM.
