Exploded View

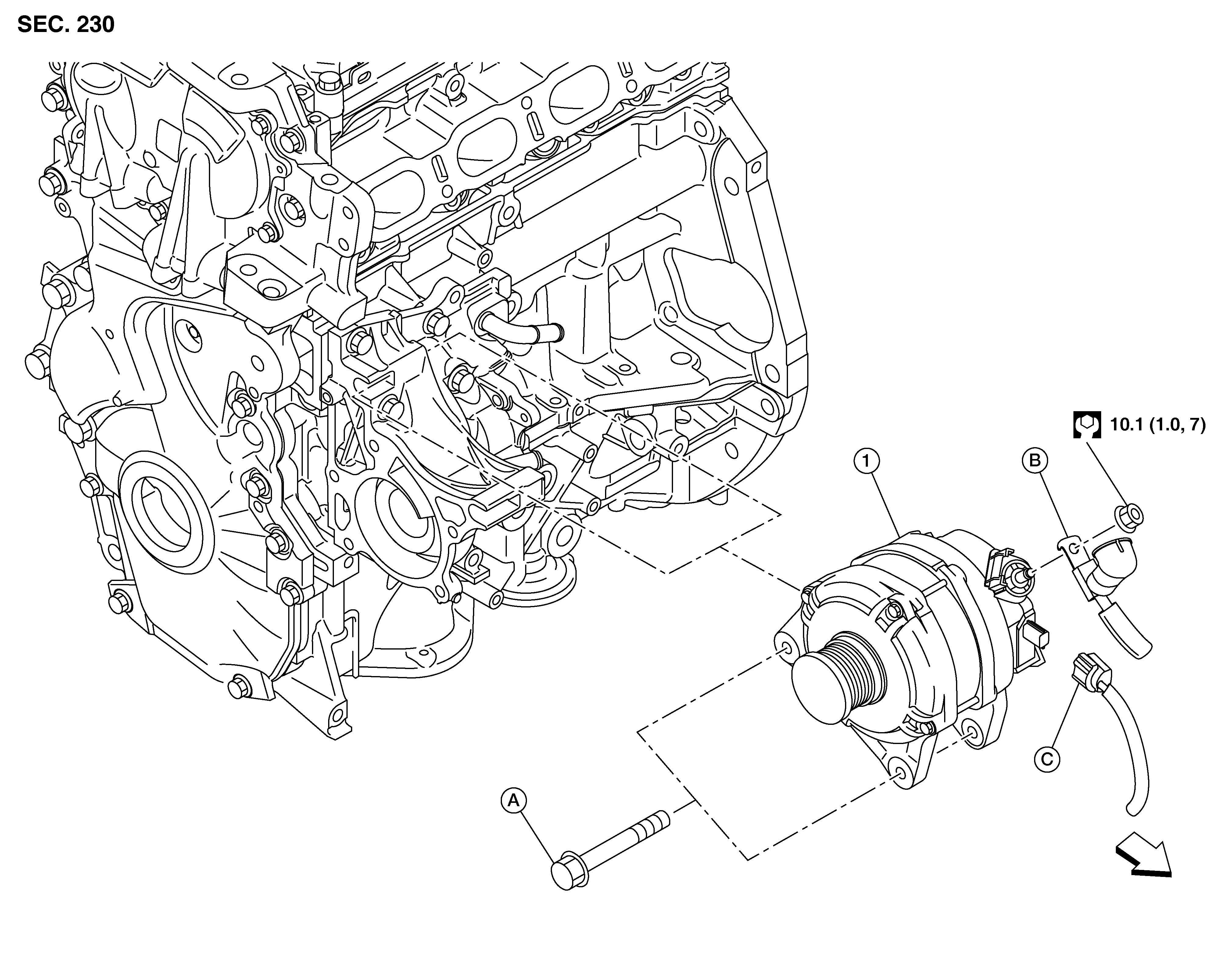

Fig 1: Generator Components With Torque Specifications
GNSAWMIA0151Z-151SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Generator

A.

Refer to Removal and Installation. .

B.

"B" terminal harness

C.

Harness connector

 SYMBOL

Front
