System Diagram

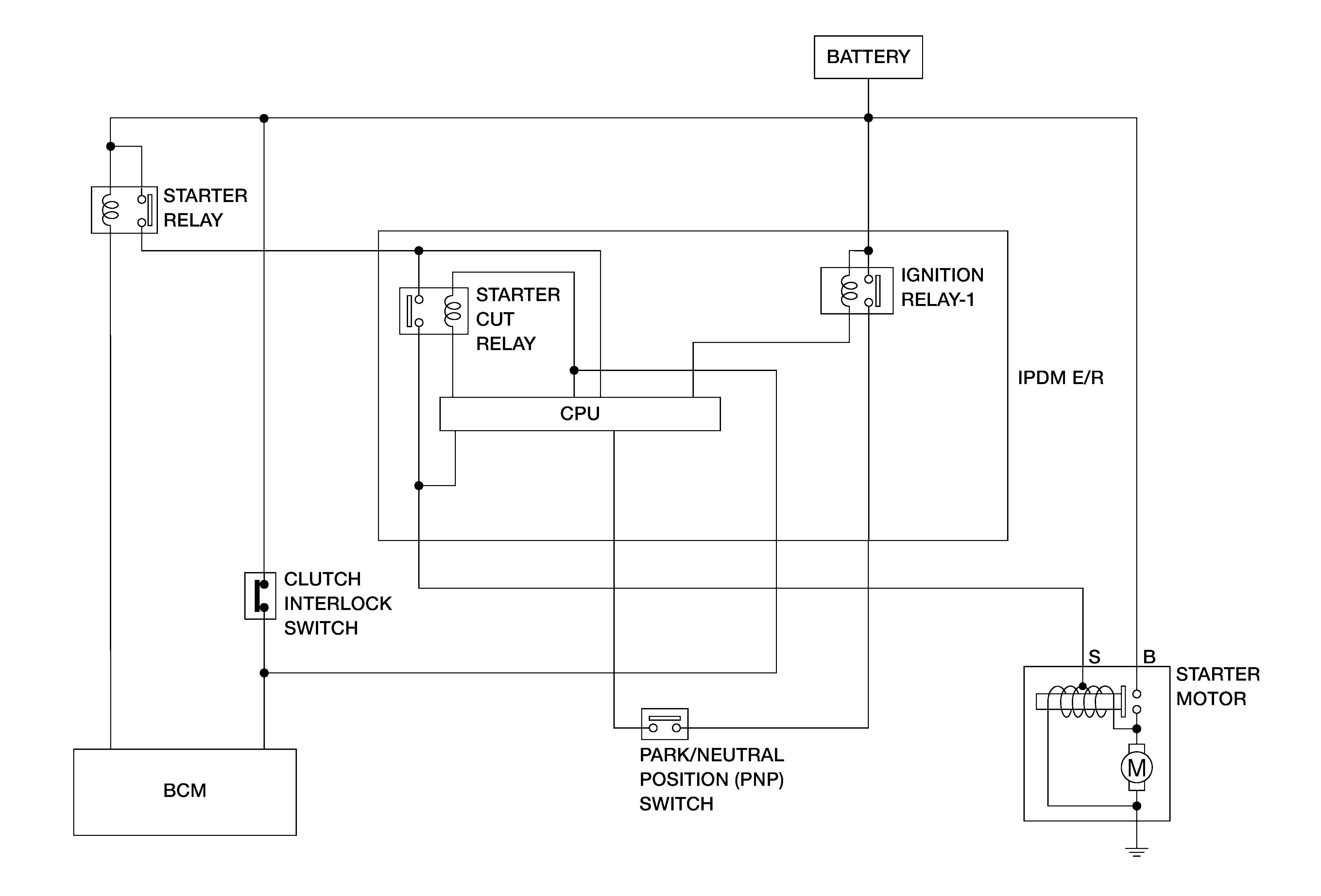

Fig 1: M/T MODELS WITH INTELLIGENT KEY SYSTEM
GNSAWBIA0038GB-038Courtesy of NISSAN NORTH AMERICA, INC.

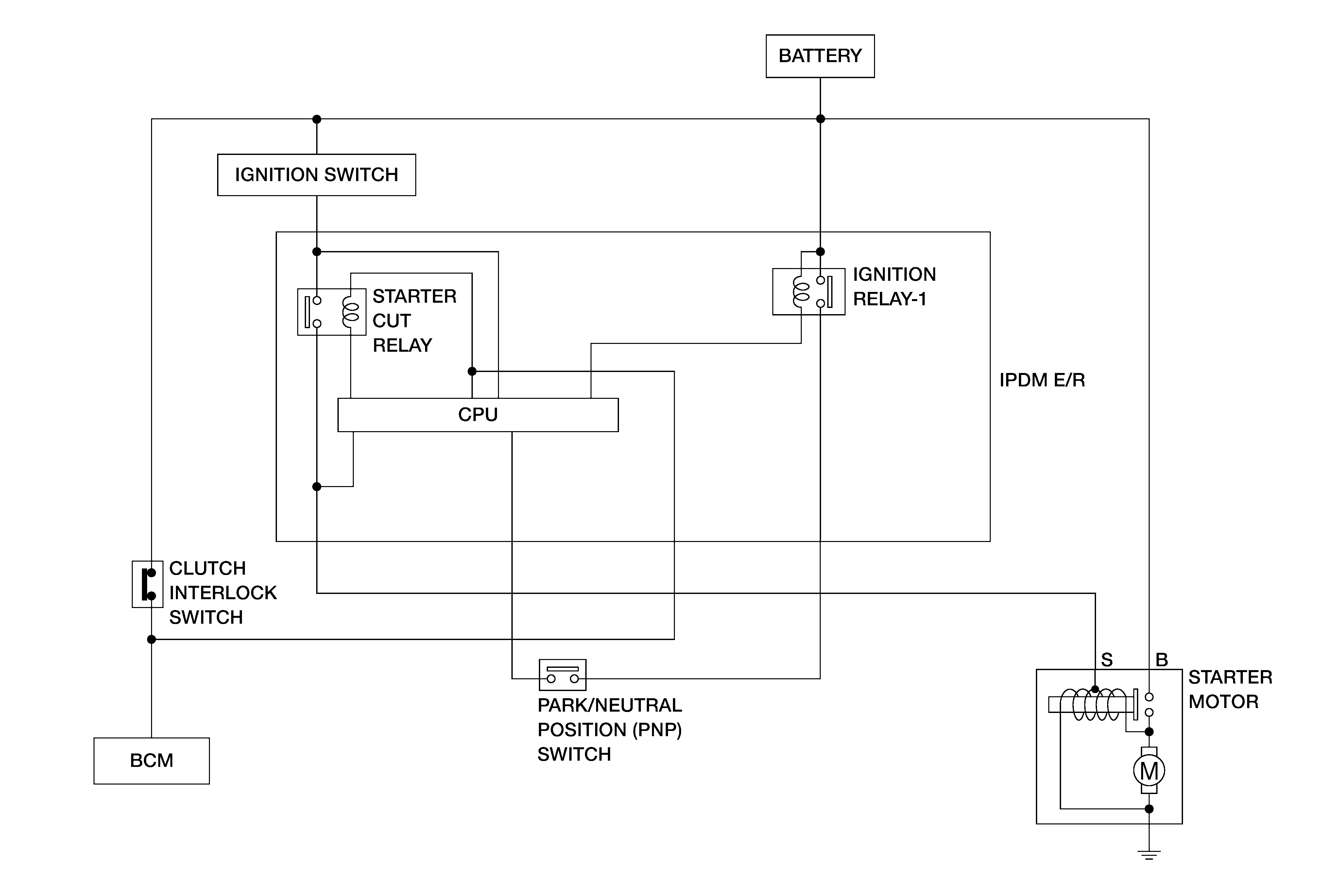

Fig 2: M/T MODELS WITHOUT INTELLIGENT KEY SYSTEM
GNSAWBIA0039GB-039Courtesy of NISSAN NORTH AMERICA, INC.

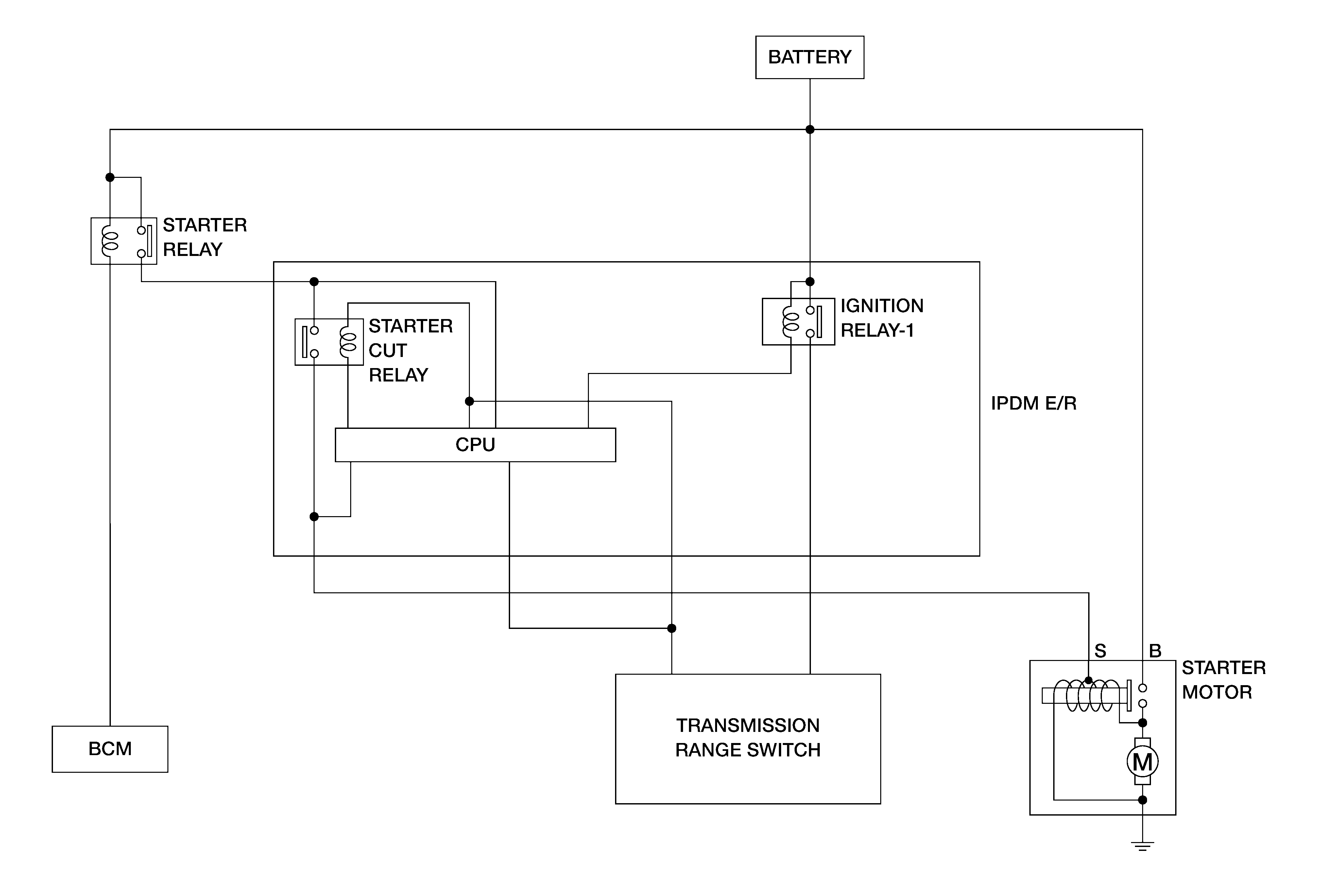

Fig 3: CVT MODELS WITH INTELLIGENT KEY SYSTEM
GNSAWBIA0040GB-040Courtesy of NISSAN NORTH AMERICA, INC.
