Ignition Timing: Inspection

  1. CHECK IGNITION TIMING

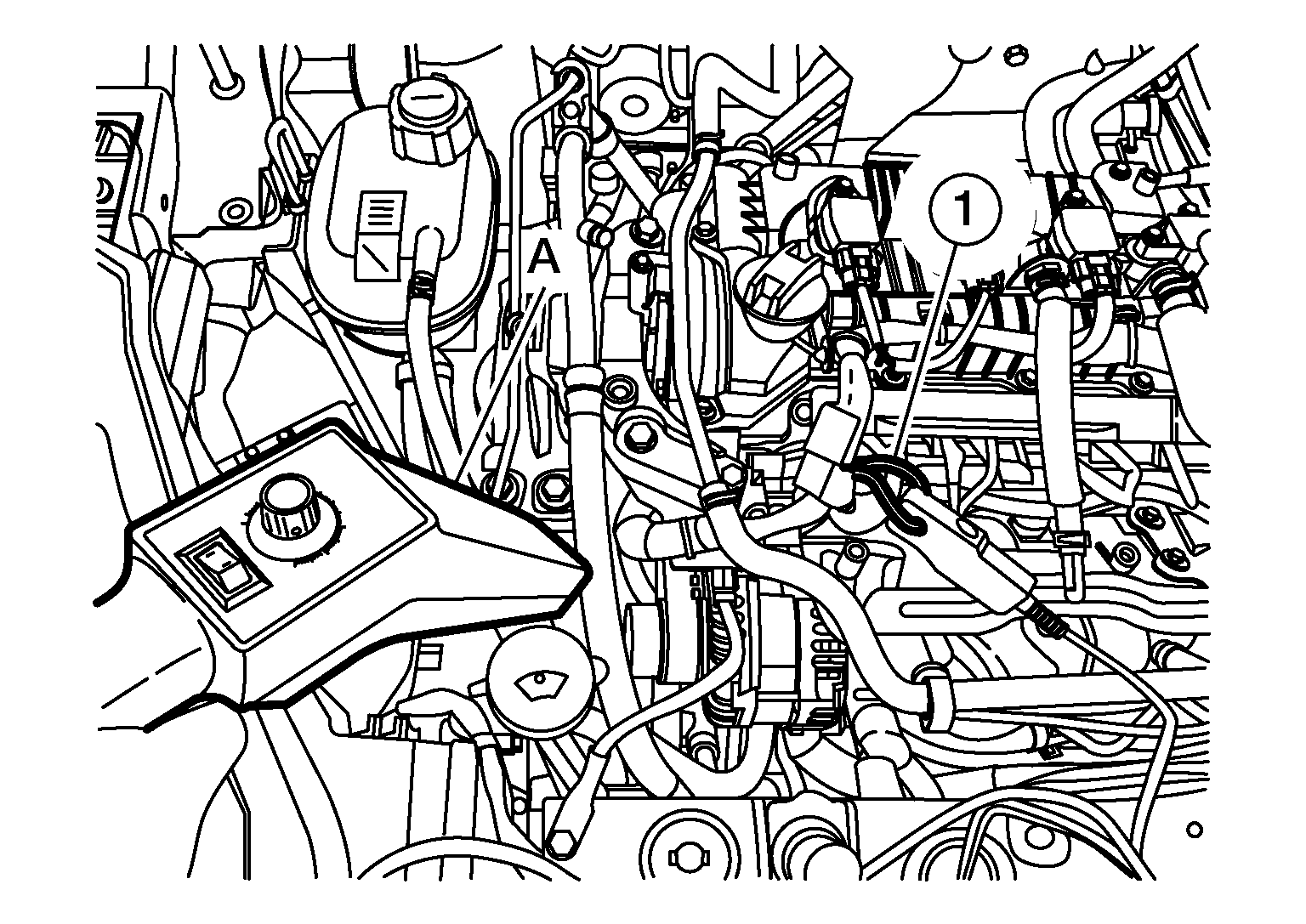

    1. Attach timing light (A) to loop wire SYMBOL as shown.
      GNSALBIA0612Z-612Courtesy of NISSAN NORTH AMERICA, INC.

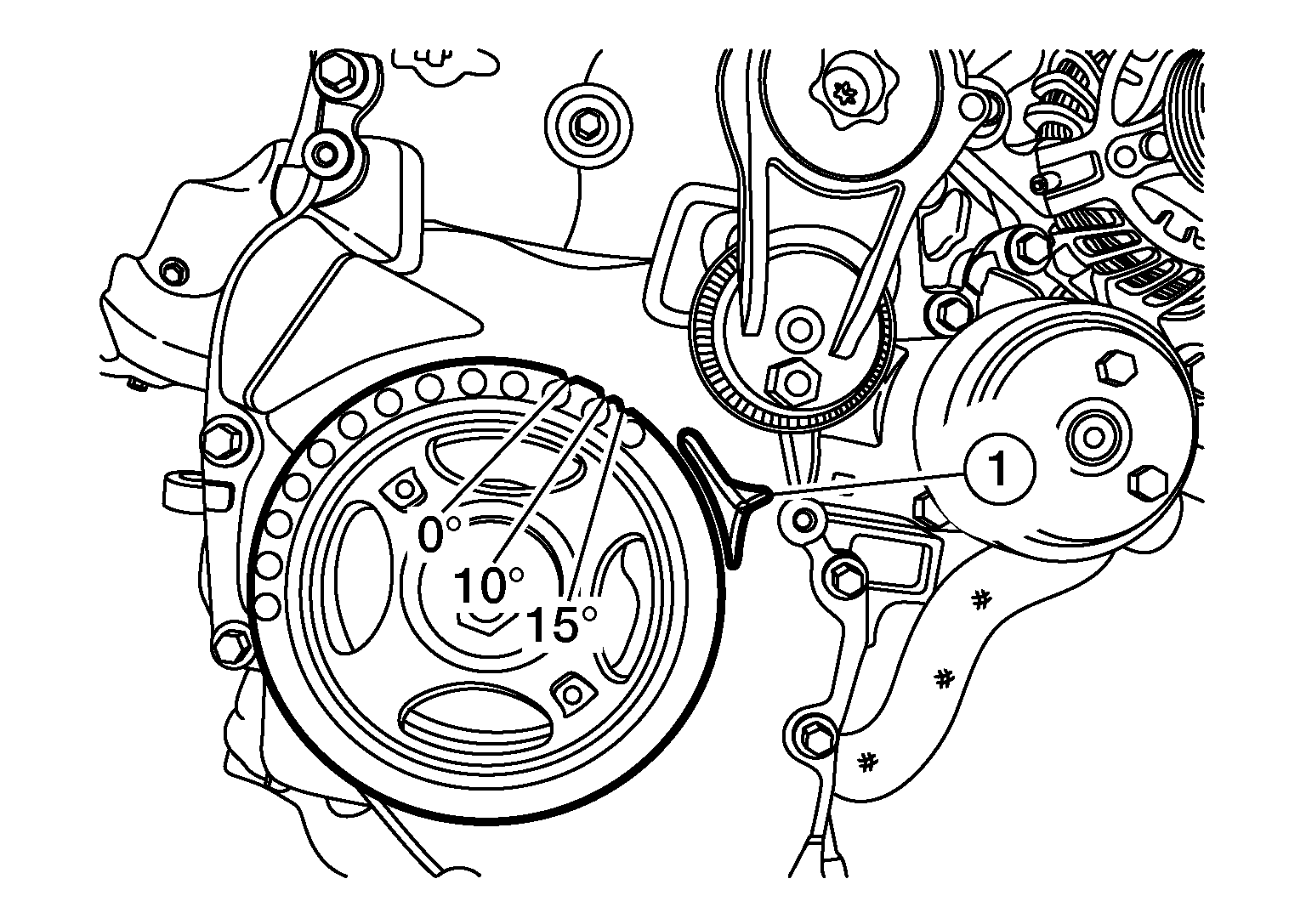

    2. Check ignition timing.
      GNSALBIA0613Z-613Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Timing indicator

    INSPECTION END
