Check Ignition Timing

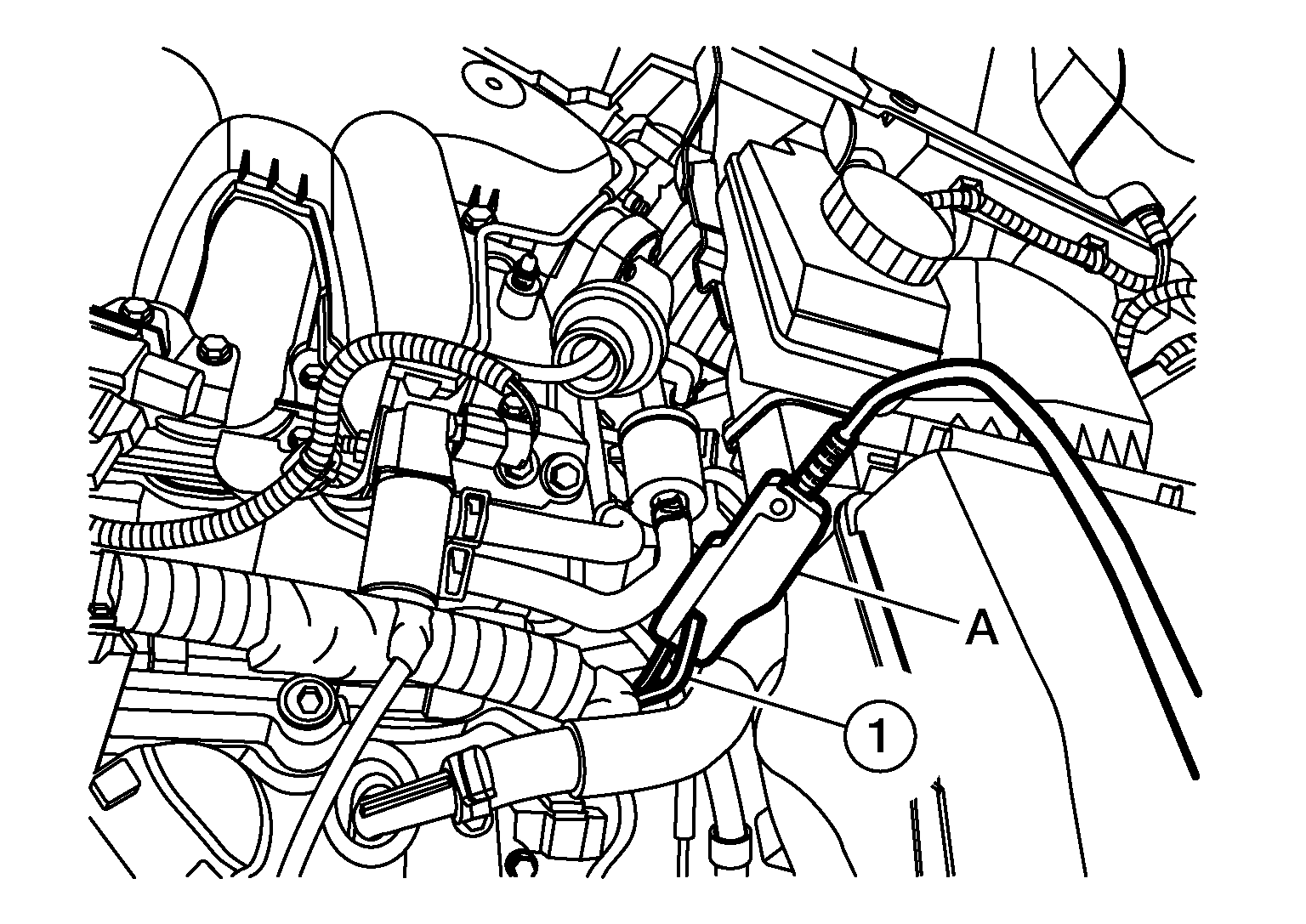

  1. Attach timing light (A) to loop wire SYMBOL as shown.
    GNSALBIA0998Z-998Courtesy of NISSAN NORTH AMERICA, INC.

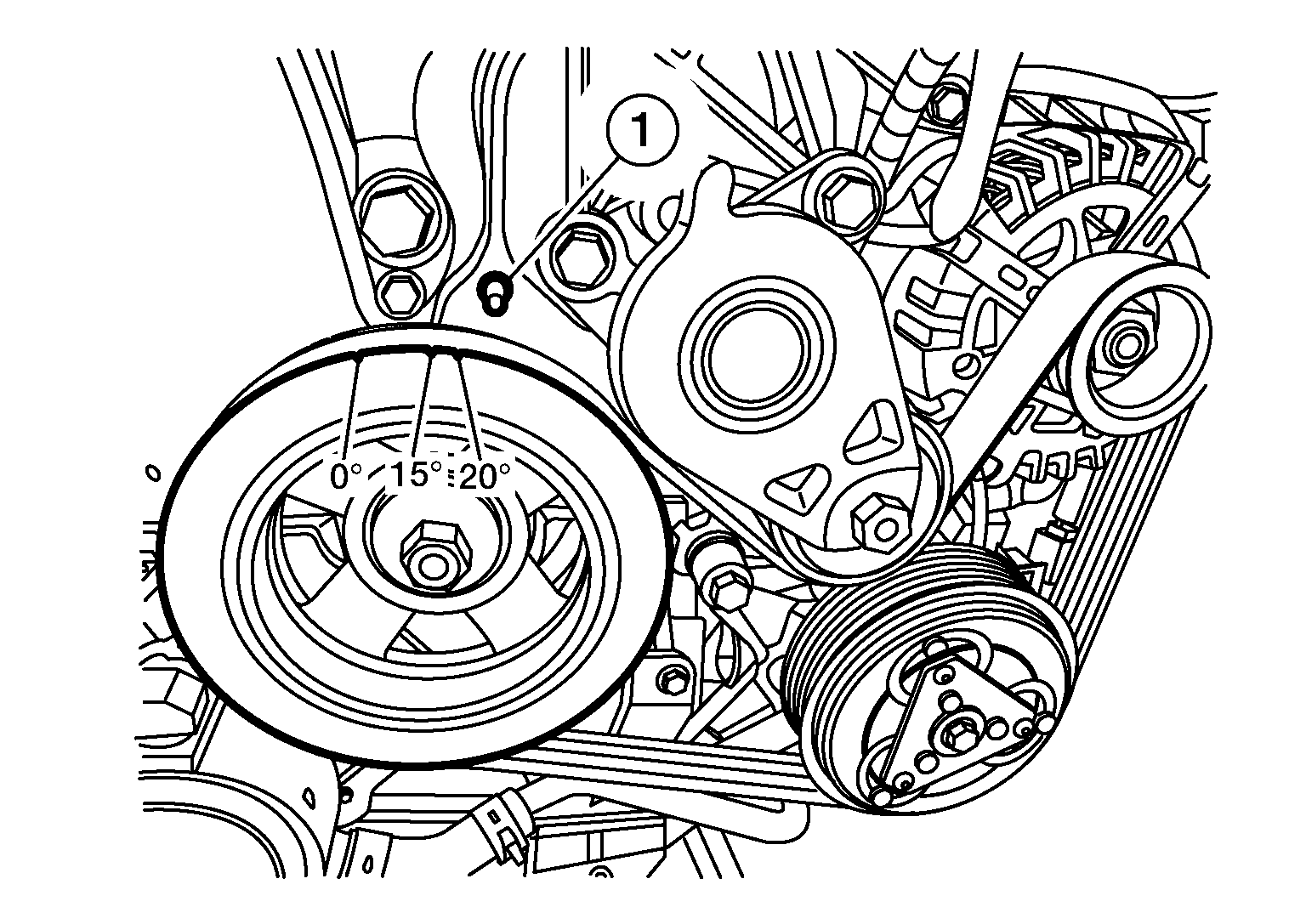

  2. Check ignition timing.
    GNSALBIA0999Z-999Courtesy of NISSAN NORTH AMERICA, INC.

    Specification

    : Ignition Timing
