System Description

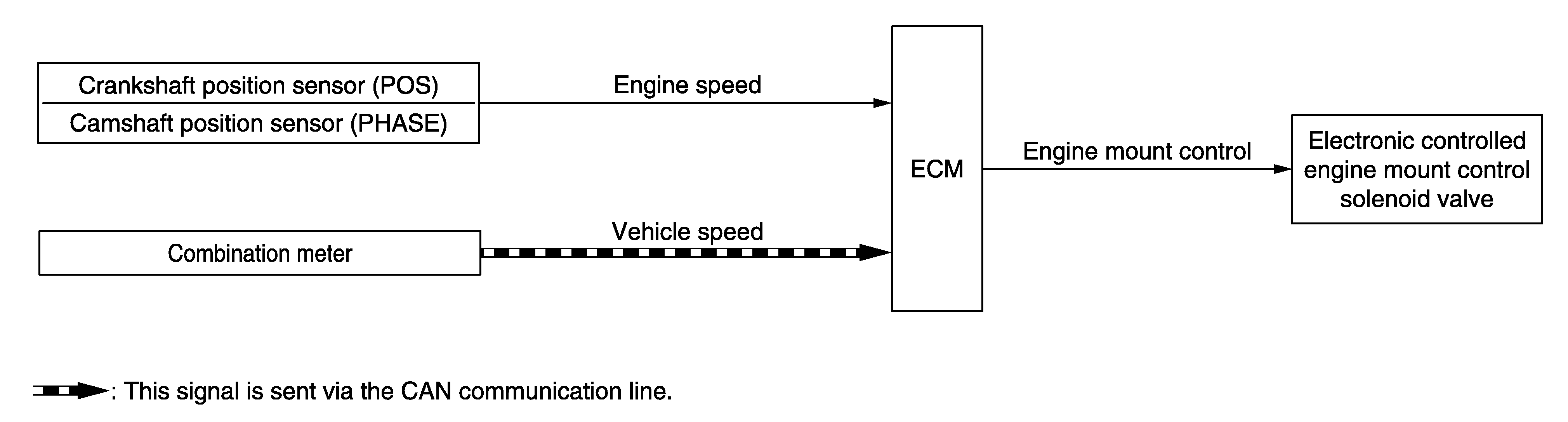

SYSTEM DIAGRAM
SYSTEM DESCRIPTION
The ECM controls the engine mount operation corresponding to the engine speed. The control system has a 2-step control [Soft/Hard]
| Vehicle condition | Engine mount control |
|---|---|
| Engine speed: Below 950 rpm | Soft |
| Engine speed: Above 950 rpm | Hard |

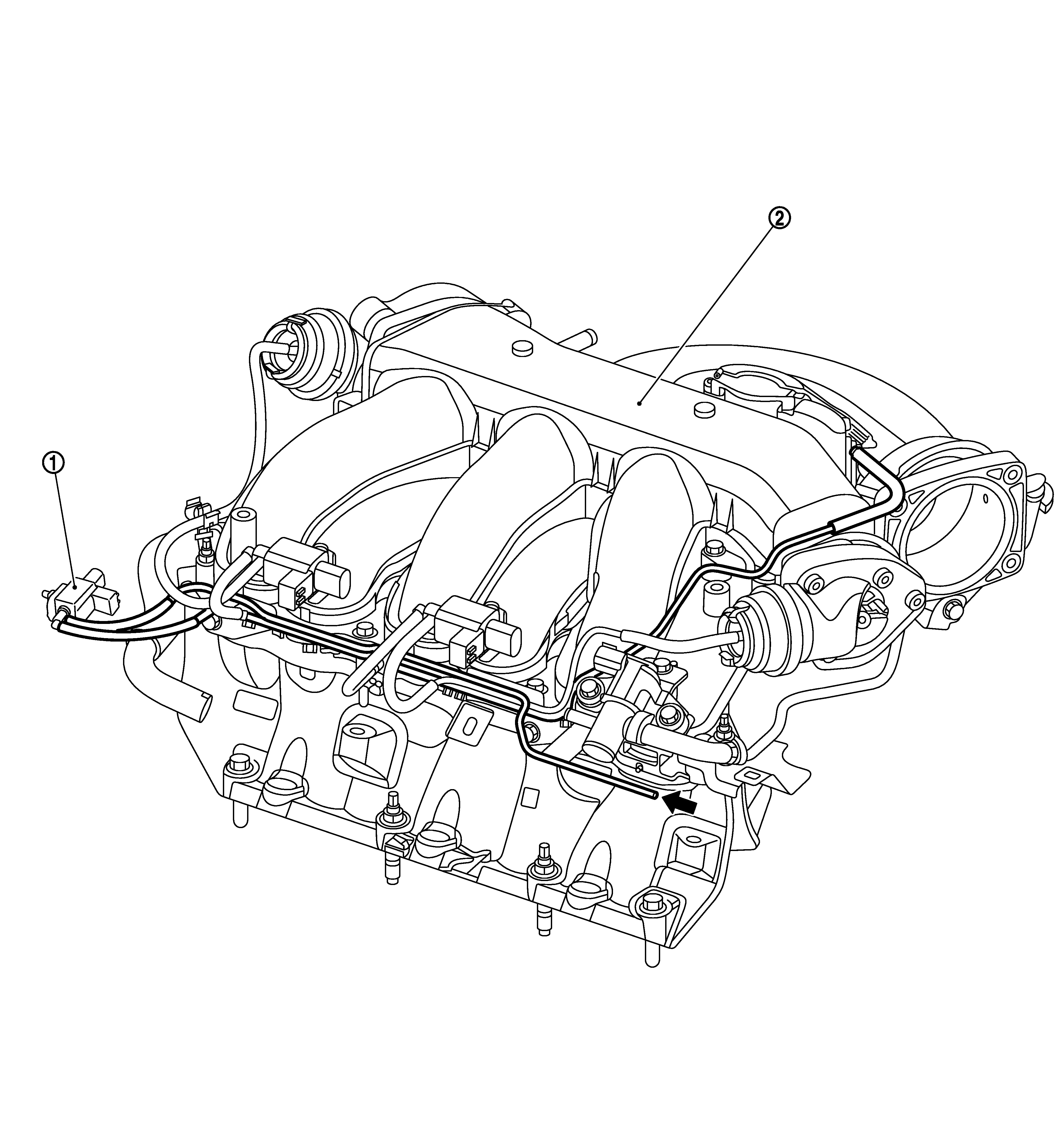

ELECTRONIC CONTROLLED ENGINE MOUNT LINE DRAWING
| Electronic controlled engine mount control solenoid valve | Intake manifold collector | ||||
| : From next figure |

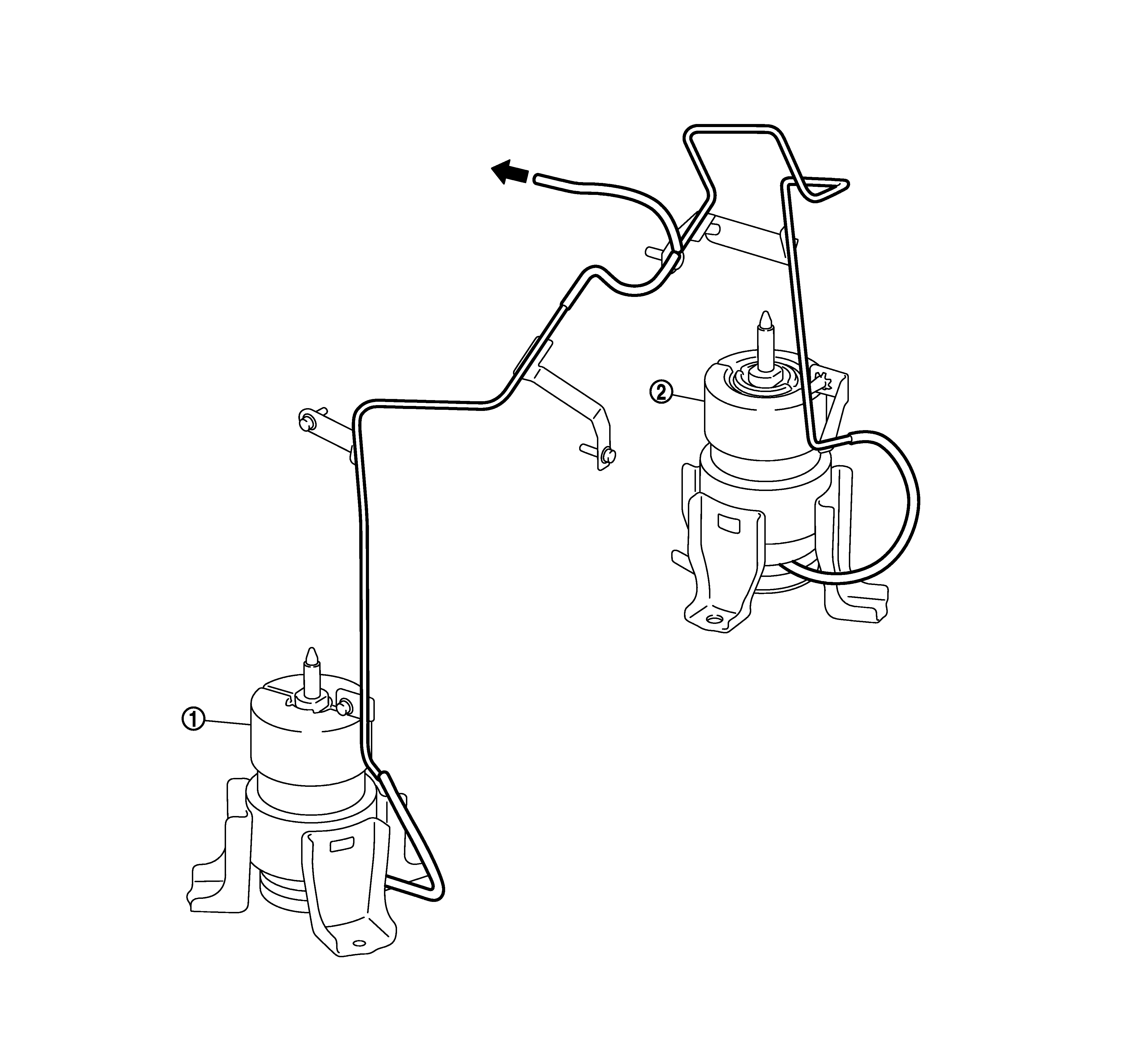

| Front electronic controlled engine mount | Rear electronic controlled engine mount | ||||
| : To previous figure |
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose.
