Home >> Nissan-Datsun >> 2023 >> Maxima SV >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (2 Of 2) >> Removal And Installation >> ECM >> Exploded View

Exploded View

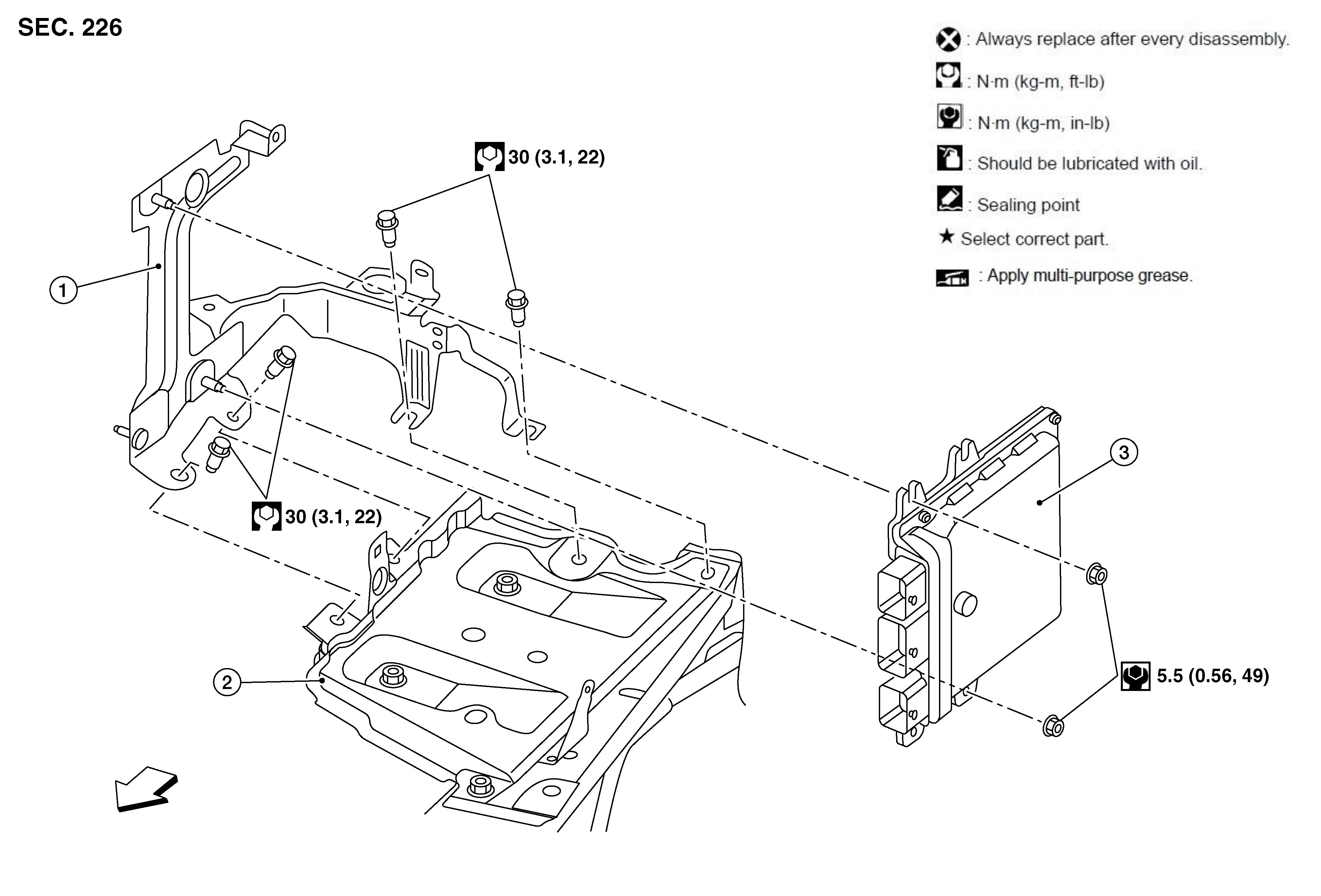

Fig 1: Engine Control Module Components with Torque Specifications
GNSDB55739Courtesy of NISSAN
1. ECM bracket 2. Battery tray 3. ECM
SYMBOL Front
