System Description

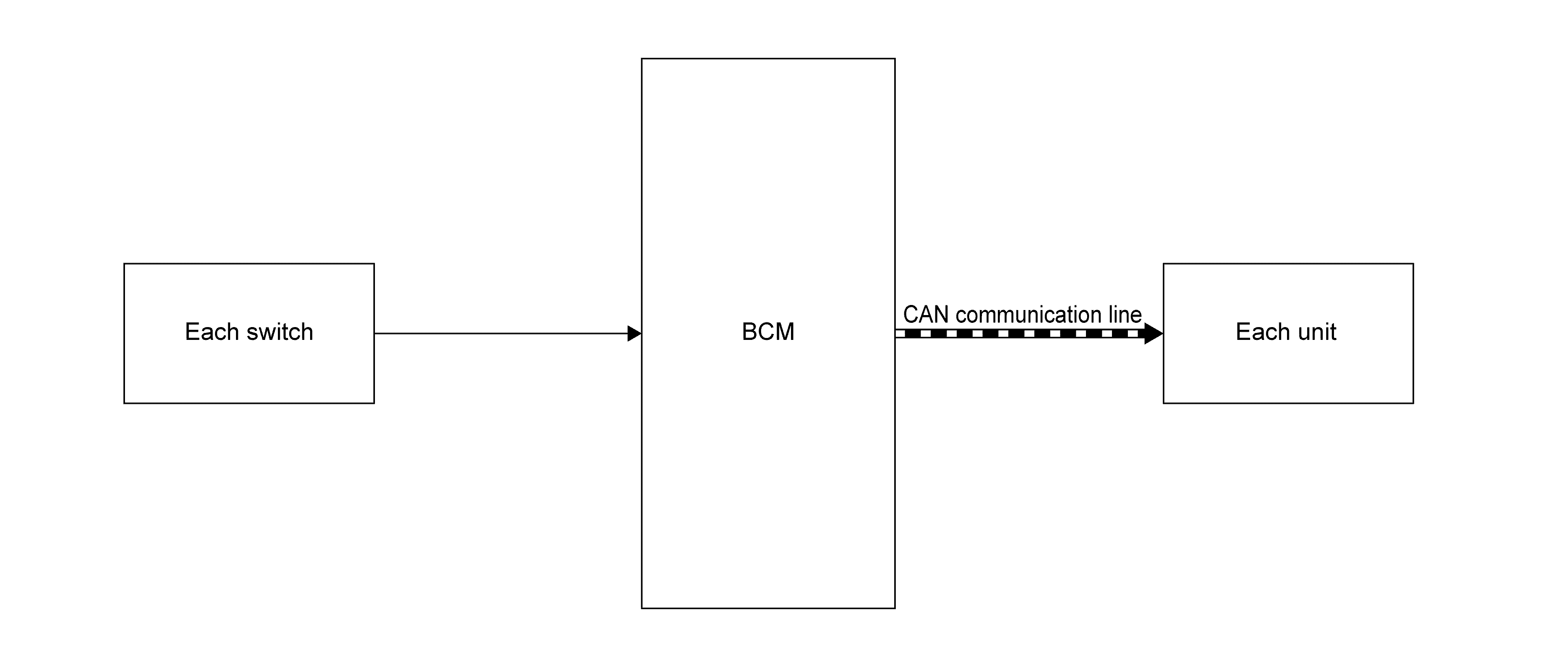

SYSTEM DIAGRAM
| Parts name | System description |
|---|---|
| Each switch (sensor) | Outputs the each signal to BCM. |
| BCM | BCM has the signal transmission function that outputs/transmits each input/received signal to each unit. |
| Each unit | Inputs the each signal from BCM. |
OUTLINE
BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.
Signal transmission function list
| Signal name | Input | Output | Description |
|---|---|---|---|
| Door switch signal | Any door switch |
|
Inputs the each door switch signal and transmits the door switch signal judged with BCM via CAN communication. |
| Ignition switch ON signal | Push-button ignition switch (Push switch) | IPDM E/R | Inputs the push-button ignition switch (push switch) signal and transmits the ignition switch status judged with BCM via CAN communication. |
| Stop lamp switch signal | Stop lamp switch |
|
Inputs the stop lamp switch 1 signal and stop lamp switch 2 signal, and transmits it via CAN communication. |
| Combination switch reading function | Combination switch |
|
Inputs the combination switch reading function and transmits the each combination switch signal judged with BCM via CAN communication. |
