Home >> Nissan-Datsun >> 2023 >> Z Performance, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (1 Of 2) >> System Description >> Component Location >> Engine Control System >> Turbocharger Speed Sensor

Turbocharger Speed Sensor

The turbocharger speed sensor is installed to the compressor side of turbocharger and detects revolutions of turbocharger with the compressor wheel blade of turbocharger.

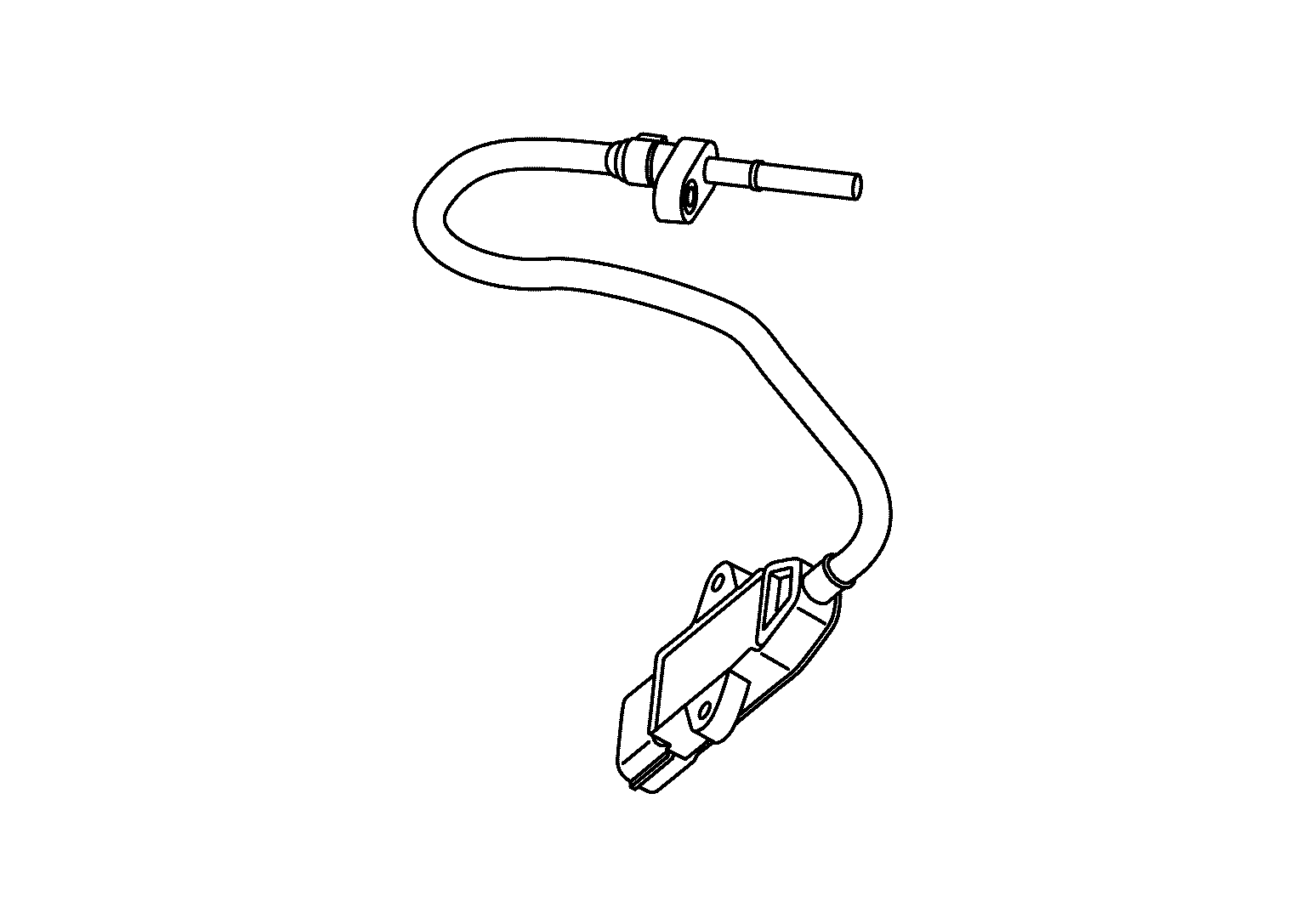

GNSDB148644Courtesy of NISSAN NORTH AMERICA, INC.

The use of eddy current sensor enables the detection of revolutions of turbocharger at high speed rotation.
