All Models

If Cruise Control holes speed three or more MPH above that selected, turn centering spring adjusting screws (on regulator) towards "S" 1/32 of a turn (Oldsmobile) or 1/8 of a turn (Pontiac) or less. If cruise control holds speed three or more MPH below that selected, turn centering spring adjusting screw toward "F" 1/32 of a turn (Oldsmobile) or 1/8 turn (Pontiac) or less.

CAUTION: DO NOT move adjustment screw marked "R". This is a vacuum restriction adjustment screw and is preset at factory.

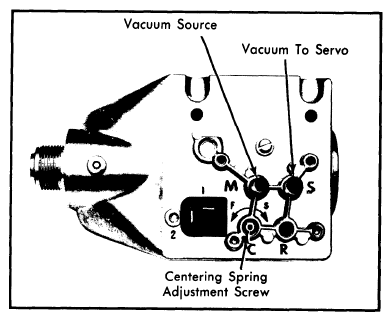

Fig 1: Adjustment Screw Identification
G09347162Courtesy of GENERAL MOTORS COMPANY

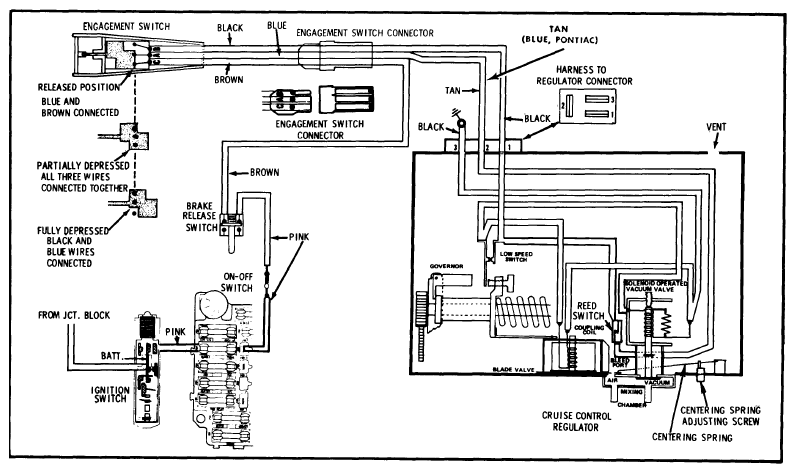

Fig 2: Diagram Of General Motors Cruise Control Electrical Circuit
G09347163Courtesy of GENERAL MOTORS COMPANY
