Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch Diode | In connector at compressor. |
| ALCL Connector | Under right side of dash, to right of parking brake. See Figure. |
| Central Power Supply (CPS) | Under left side of dash, above brake pedal. |
| Circuit Breakers Headlights (Toronado) | In position 22 of fuse block. |
| Circuit Breakers High Beam (Riviera) | In position 22 of fuse block. |
| Circuit Breakers Horn/Defogger (Toronado) | In position 25 (24 on of fuse block. |
| Circuit Breakers Low Beam (Riviera) | In position 21 of fuse block. |
| Circuit Breakers Power Seats | In position 23 of fuse block. |
| Circuit Breakers Power Windows (Toronado) | In position 25 of fuse block. |
| Circuit Breakers Retained Accessory Power | In position 24 of fuse block. |
| Cruise Control Servo | At left side of engine compartment, above transaxle. |
| Electroluminescent Inverter (Riviera) Console | Below rear of console. |
| Electroluminescent Inverter (Riviera) Doors | One in center of each front door. |
| Electroluminescent Inverter (Riviera) Instrument Panel | On left rear side of instrument cluster. |
| Fuel Pump Prime Connector | Taped to wiring harness at left front side of engine compartment. See Figure. |
| Fuse Block (Riviera) | Under center of dash, on right front side of console. |
| Fuse Block (Toronado) | Behind right side of dash, behind glove box. See Figure. |
| Fusible Links A (Black) Underhood Relay Center | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links B (Orange - Riviera) Interior Relay Center on Riviera | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links (Black - Toronado) Fuse Block | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links C (Black - Riviera) Ignition Switch | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links (Gray - Toronado) Fuse Block | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links D (Gray - Toronado) Ignition Switch | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links E (Gray - Riviera) Fuse Block | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links (Blue - Toronado) Power Module | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links F (Rust - Riviera) Fuse Block | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links (Blue - Toronado) ECM | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links G (Black - Riviera) Fuse Block | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links H (Rust - Riviera) Fuse Block | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links (Black - Toronado) Underhood Relay Center | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links K (Gray - Toronado) Underhood Relay Center | In harness next to junction block on right fender panel. See Figure. |
| Fusible Links N & R (Orange) A/C Blower Motor | At center of firewall in engine compartment, at blower motor. See Figure. |
| In-Line Retained Accessory Power Circuit Breaker | To right of interior relay center, taped to wiring harness. |
| Interior Relay Center Riviera | Under center of dash, on right front side of console. See Figure & 6. |
| Interior Relay Center (Toronado) | Behind right side of dash, behind glove box. See Figure. |

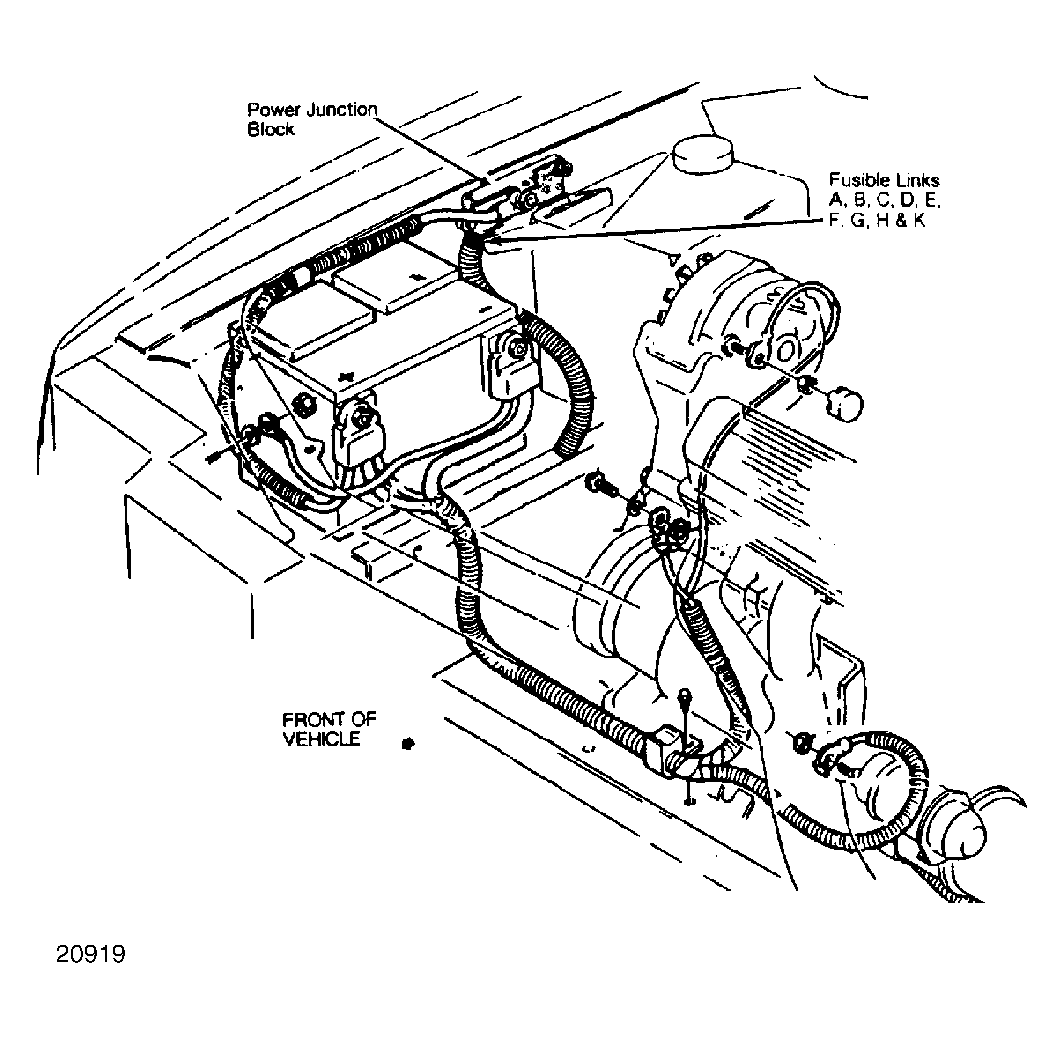

| Power Junction Block | On right front inner fender panel, behind battery. See Figure. |
| Theft Deterrent Diode | Taped to wiring harness connector below chime module. |
| Theft Deterrent In-Line Fuses | Under left side of dash, to left of steering column. See Figure. |
| TPS Test Connector | Taped to wiring harness at left front side of engine compartment. |
| Twilight Sentinel Photocell | In center of windshield header. |
| Underhood Relay Center | On left front inner fender panel, behind headlight. See Figure. |
