Check At O2 Sensor

Remove O2 sensor. Install backpressure tester in place of O2 sensor as shown in illustration. After test is completed, ensure that O2 sensor threads are coated with anti-seize compound before installation.

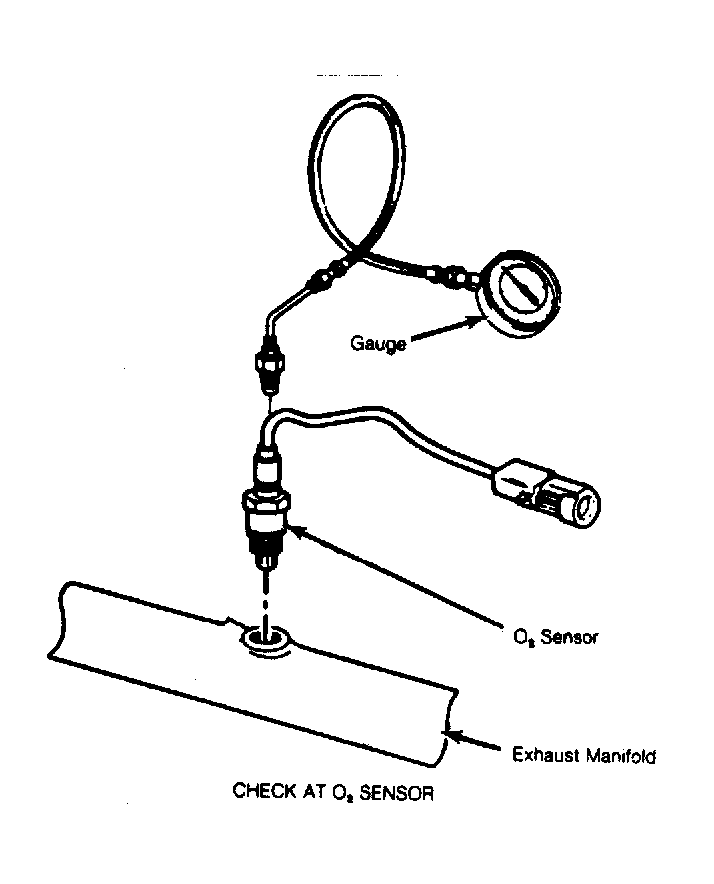

Fig 1: Chart B-1, Checking For Restriction at O2 Sensor
G74027
