Component Locations

COMPONENT LOCATIONS

Component Location
Bus Bar Ground Behind Left Side Of Instrument Panel, on Instrument Panel Bracket. See Fig 1 .
Fuse Block Behind Left Side Of Instrument Panel. See Fig 2 .
Window Motors At Rear Of Each Door. See Fig 3 & Fig 5 .
C301 Behind Right Side Of Instrument Panel
. See Fig 4 .
C302 Behind Left Side Of Instrument Panel. See Fig 4 .
C303 Left B-Pillar. See Fig 5 .
C304 Right B-Pillar. See Fig 5 .
Grommet P300 Front Of Right Door. See Fig 4 .
Grommet P301 Front Of Left Door. See Fig 4 .
Grommet P500 At Left Door. See Fig 4 .
Grommet P600 At Right Door. See Fig 4 .
Grommet P700 Left Rear Door.

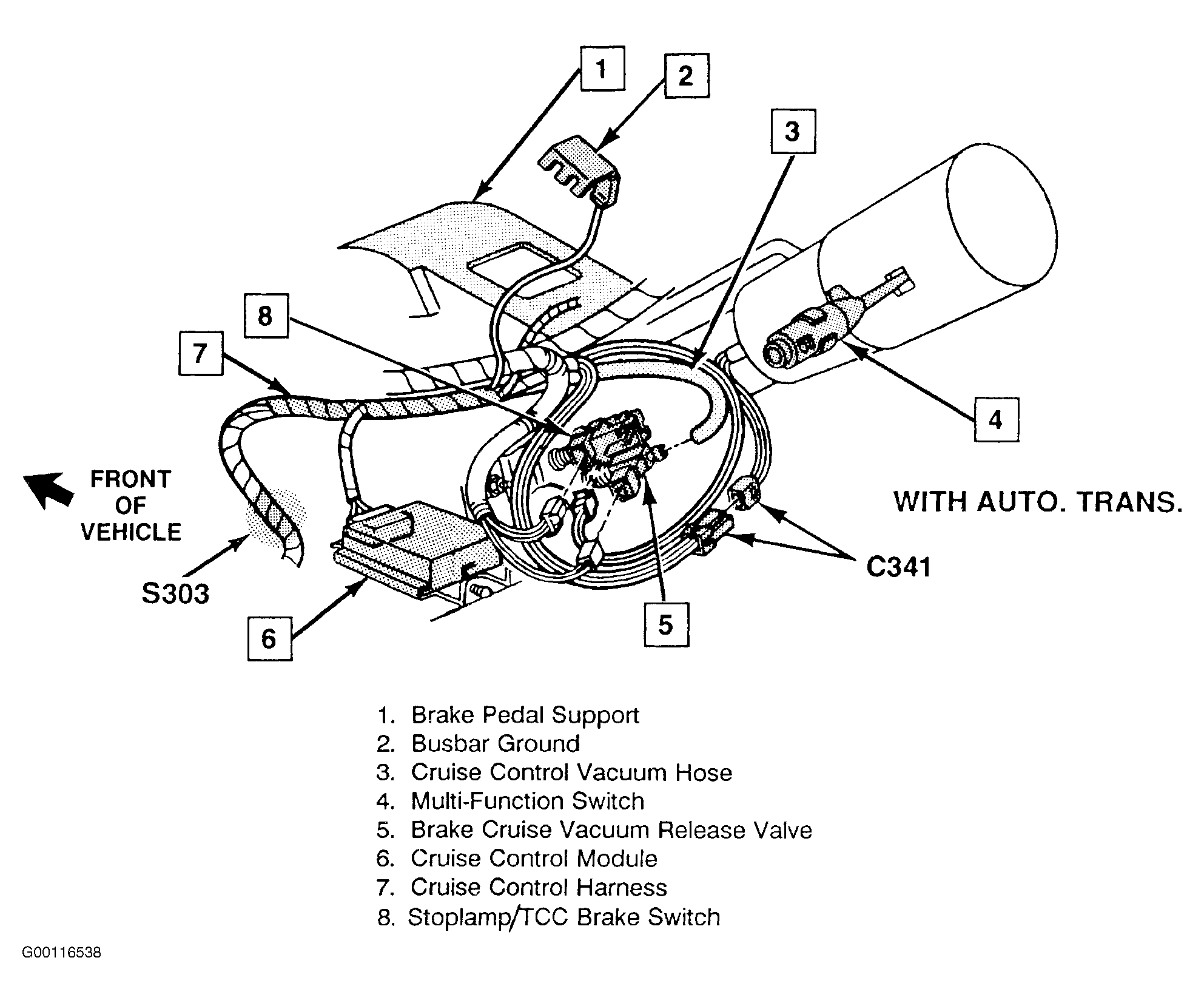

Fig 1: Locating Bus Bar Ground
G00116538Courtesy of GENERAL MOTORS CORP.

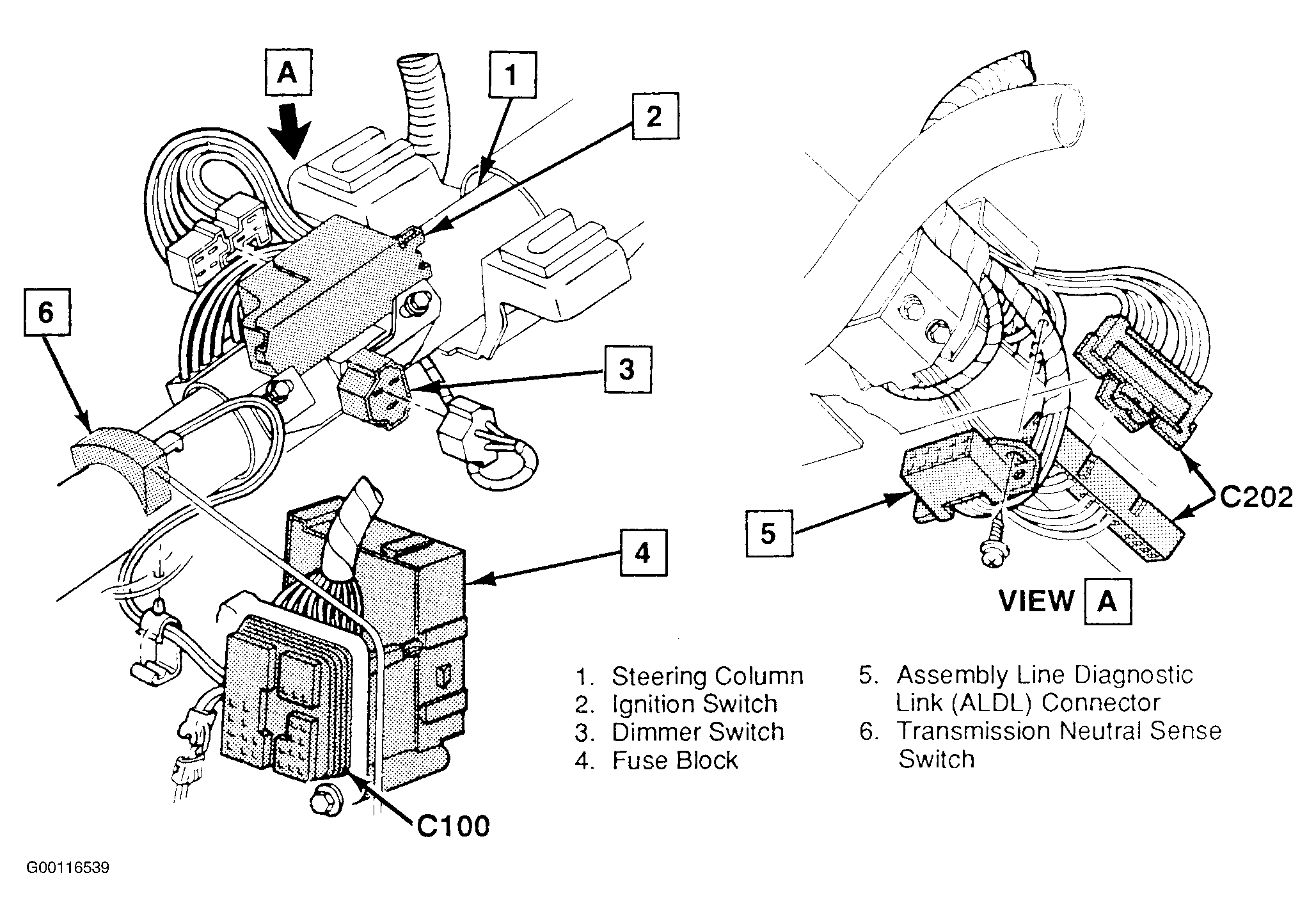

Fig 2: Locating Fuse Block
G00116539Courtesy of GENERAL MOTORS CORP.

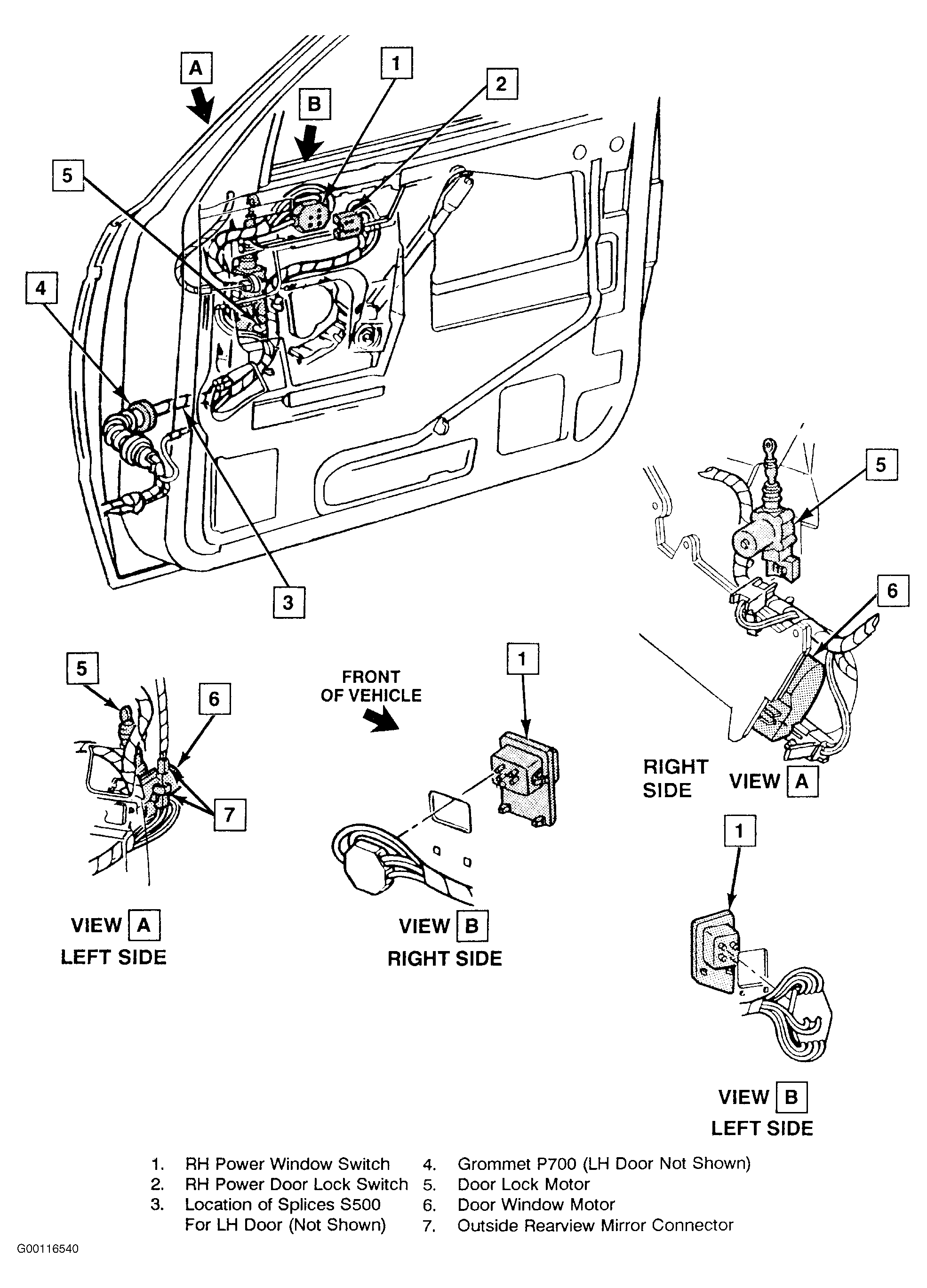

Fig 3: Locating Front Door Power Window Motor
G00116540Courtesy of GENERAL MOTORS CORP.

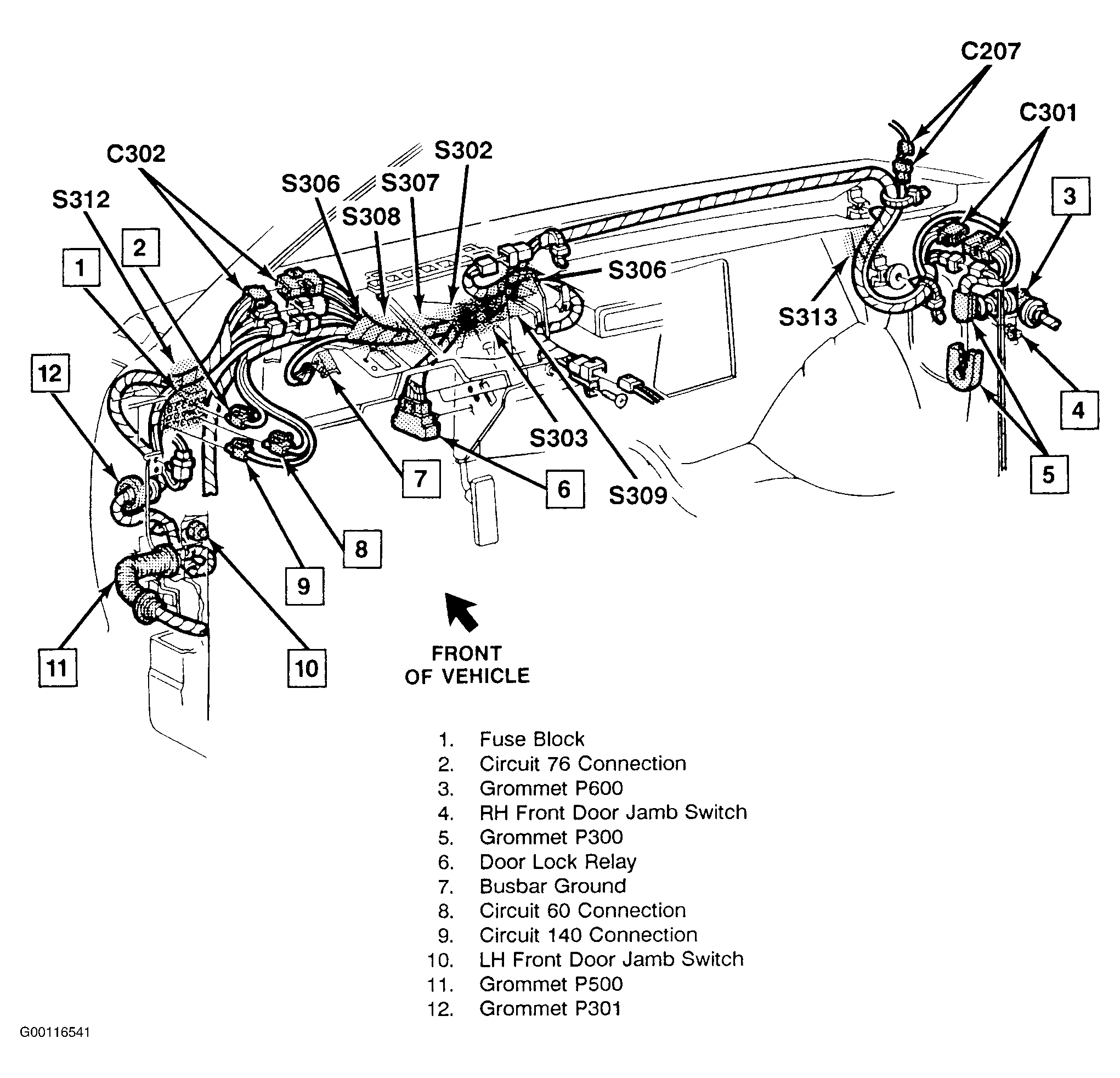

Fig 4: Locating Power Window Circuits & Grommets
G00116541Courtesy of GENERAL MOTORS CORP.

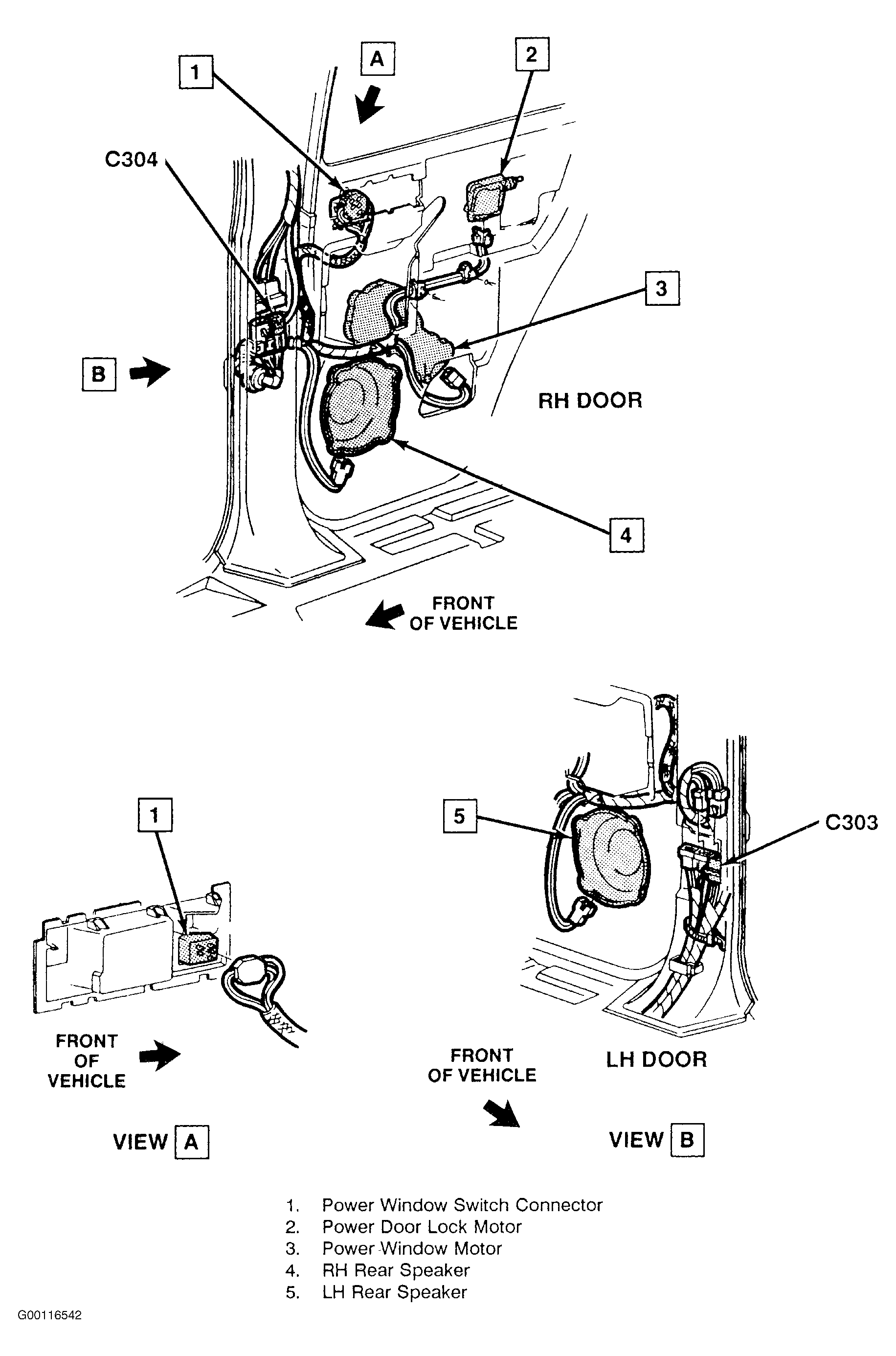

Fig 5: Locating Rear Door Power Window Motor & Circuits 303 & 304
G00116542Courtesy of GENERAL MOTORS CORP.
