Home >> Oldsmobile >> 1993 >> Bravada >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> System Tests >> Test B: Transmitter Functions Do Not Operate

Test B: Transmitter Functions Do Not Operate

To perform this test, refer to illustration. See Fig 1 .

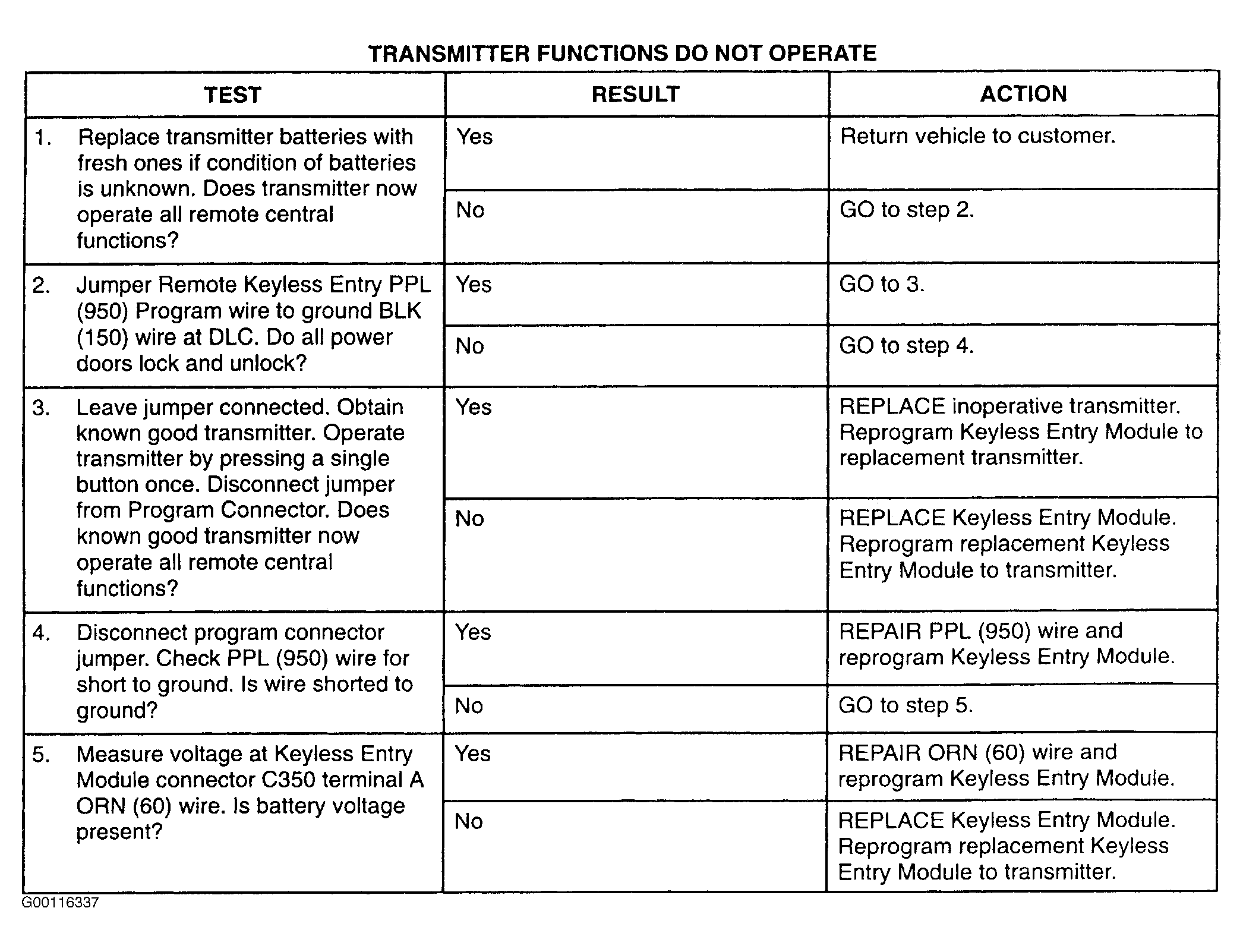

Fig 1: Testing Transmitter Functions Do Not Operate

G00116337

Courtesy of GENERAL MOTORS CORP.
