COMPONENT LOCATIONS
| Component | Location |
|---|---|

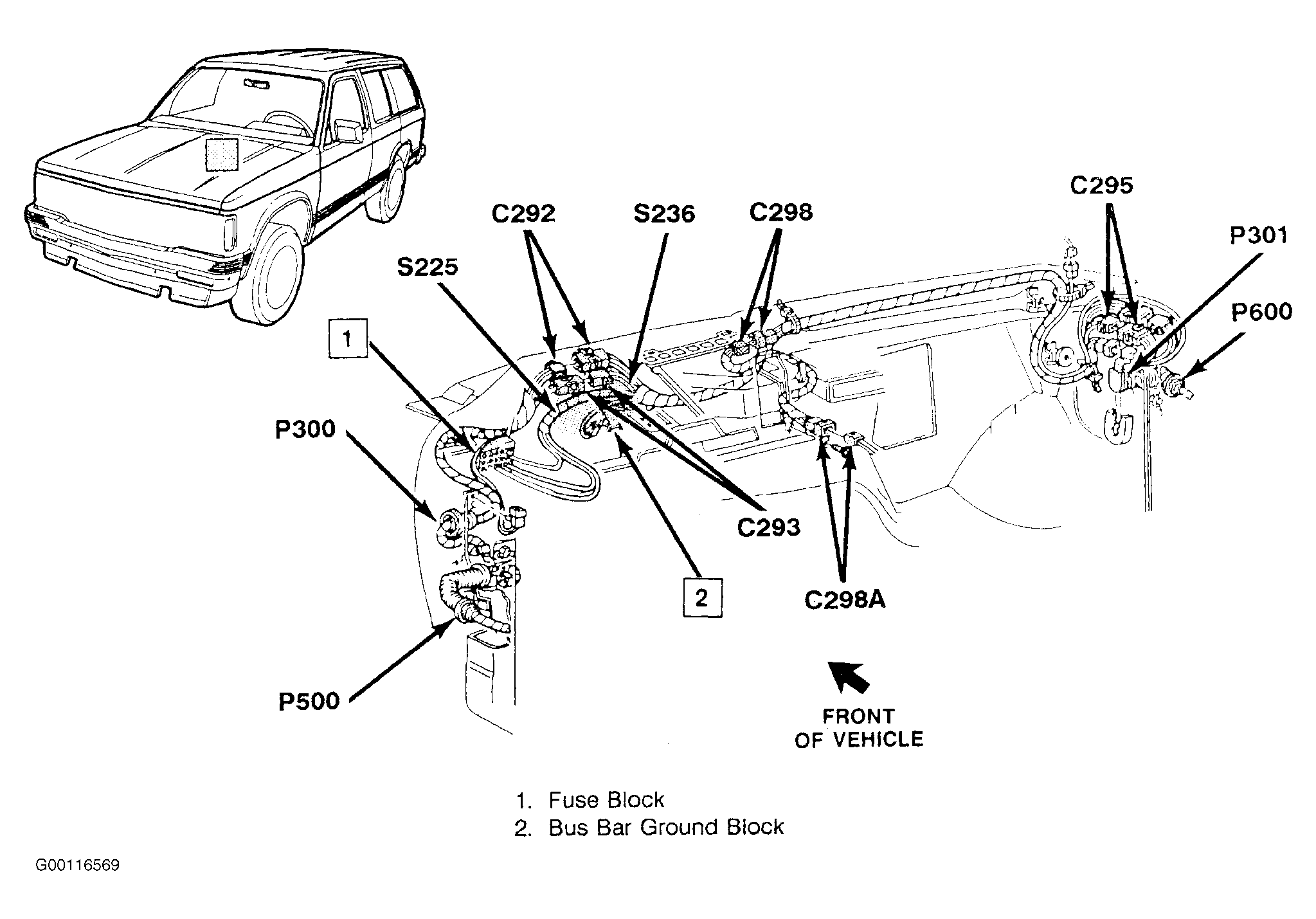

| Bus Bar Ground | Behind Left Side Of Instrument Panel, On Steering Column Bracket. See Fig 1. |

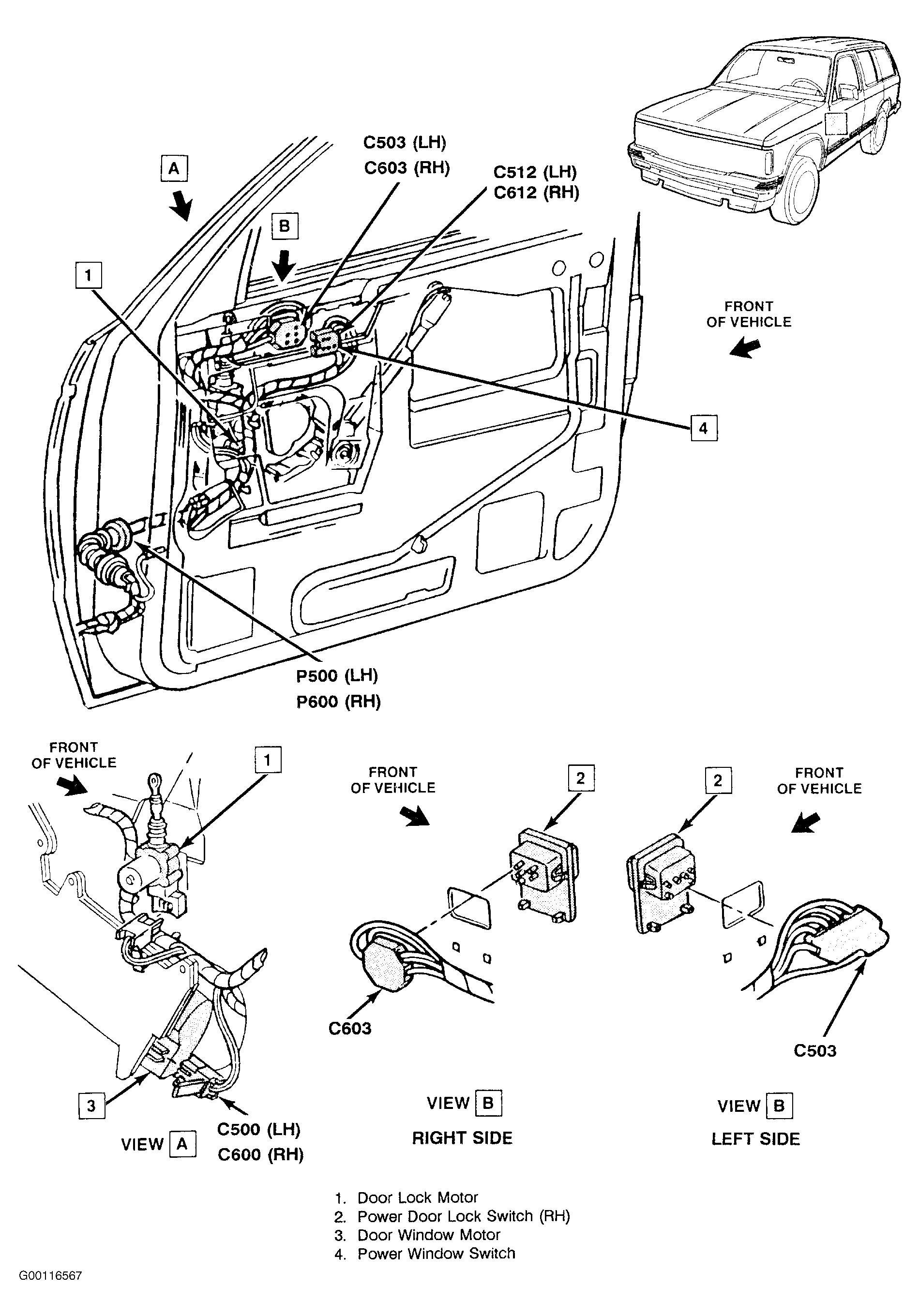

| Front Window Motor | Lower Front Of Respective Door. See Fig 2. |
| Front Window Switch | Top Of Respective Front Door, Below Window. See Fig 2. |
| Fuse Block | Behind Left Side Of Instrument Panel. See Fig 1. |

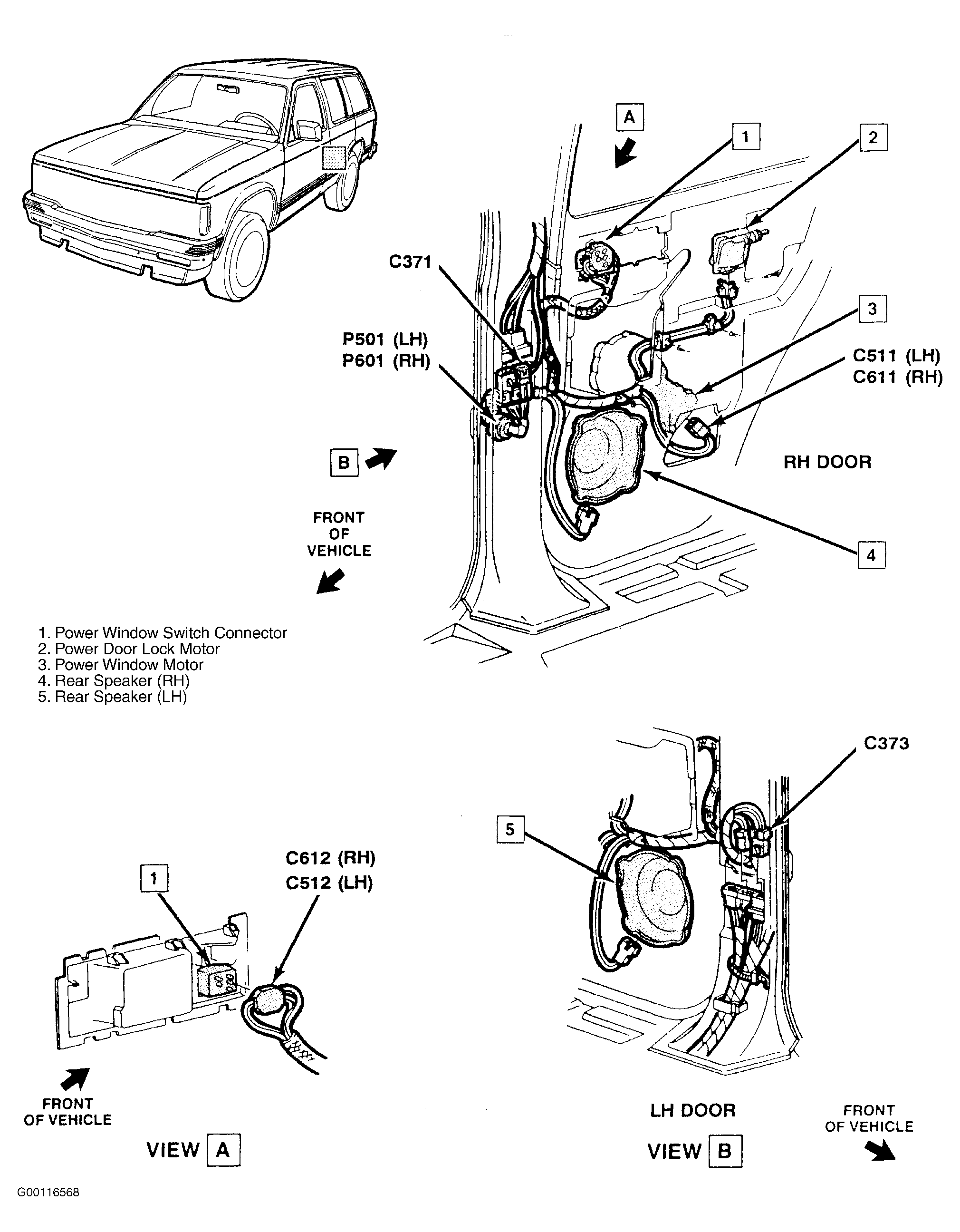

| Rear Window Motor | Center Of Respective Rear Door. See Fig 3. |
| Rear Window Switch | Top Of Respective Rear Door, Below Window. See Fig 3. |
| C242 | Behind Right Side Of Instrument Panel, Near Powertrain Control Module. |
| C292 | Behind Left Side Of Instrument Panel. See Fig 1. |
| C293 | Behind Left Side Of Instrument Panel. See Fig 1. |
| C295 | Behind Right Side Of Instrument Panel. See Fig 1. |
| C371 | At Right "B" Pillar. |
| C373 | At Left "B" Pillar |
| S225 | Behind Left Side Of Instrument Panel, Near Fuse Block. See Fig 1. |
| S236 | Behind Left Side Of Instrument Panel, Near Bus Bar Ground. See Fig 1 |
| P300 | At Left "A" Pillar. See Fig 1. |
| P301 | At Right "A" Pillar. See Fig 1. |
| P500 | At Left Front Door. See Fig 2. |
| P501 | At Left Rear Door. See Fig 3. |
| P600 | At Right Front Door. See Fig 2. |
| P601 | At Right Rear Door. See Fig 3. |
